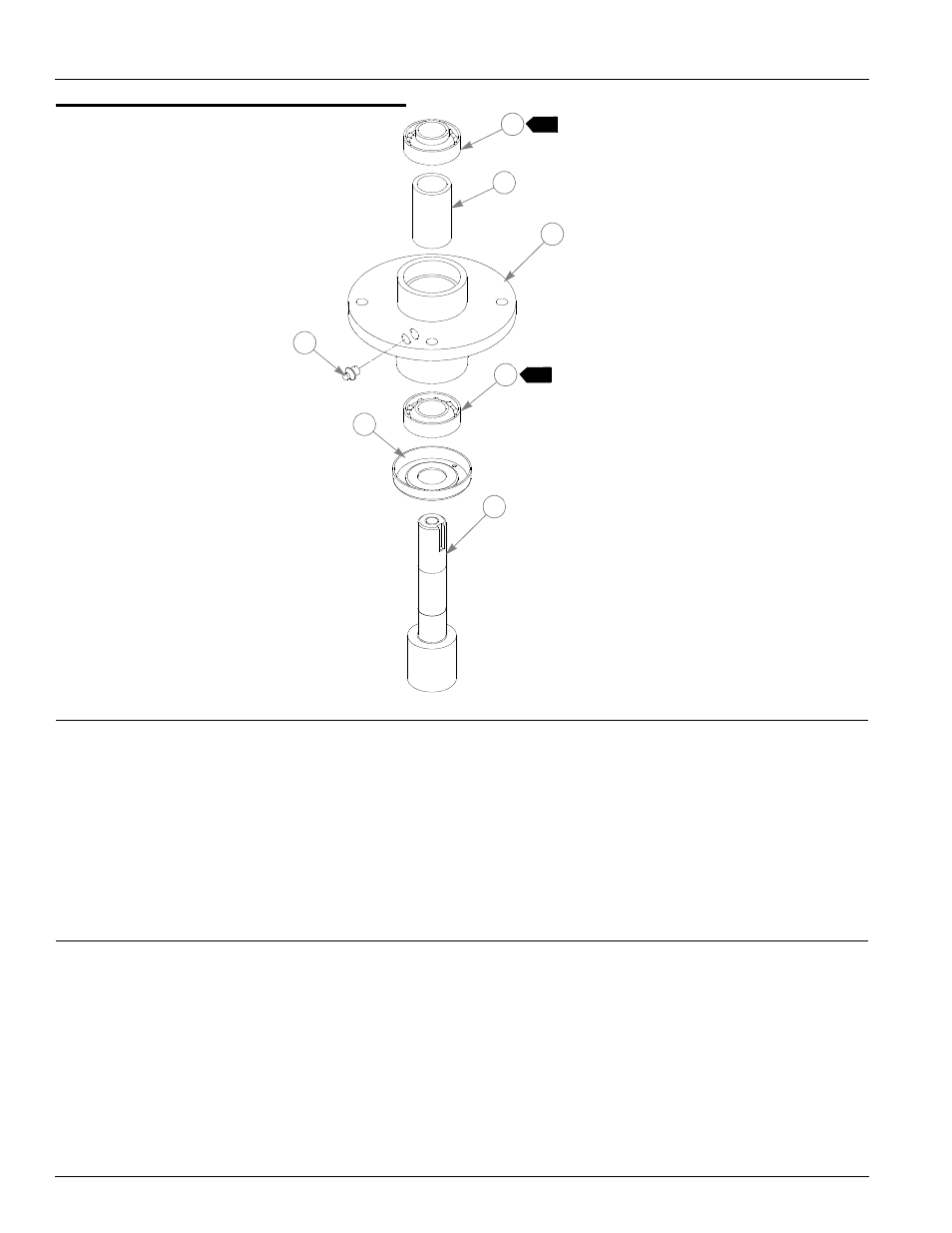

Spindle Assembly–796235
NOTES:
1. Install upper bearing with extended inner race up.
2. Install lower bearing with extended inner race down.
ITEM
NO.
SERVICE
PART NO.
MFG.
PART NO.
QTY. DESCRIPTION
1 077123 N/A 2 BEARING W/O COLLAR
2 766204 N/A 1 BLADE SPINDLE BUSHING
3 034843 N/A 1 CAST SPINDLE HOUSING
4 012005 N/A 1 GREASE FITTING
5 072272 N/A 1 FW 1.06 X 2.00 X.134 SAE ZN
6 796227 N/A 1 SADDLELESS SPINDLE SHAFT
1
2
1
6
2
3
4
1
5
