108604 10/08 6-5

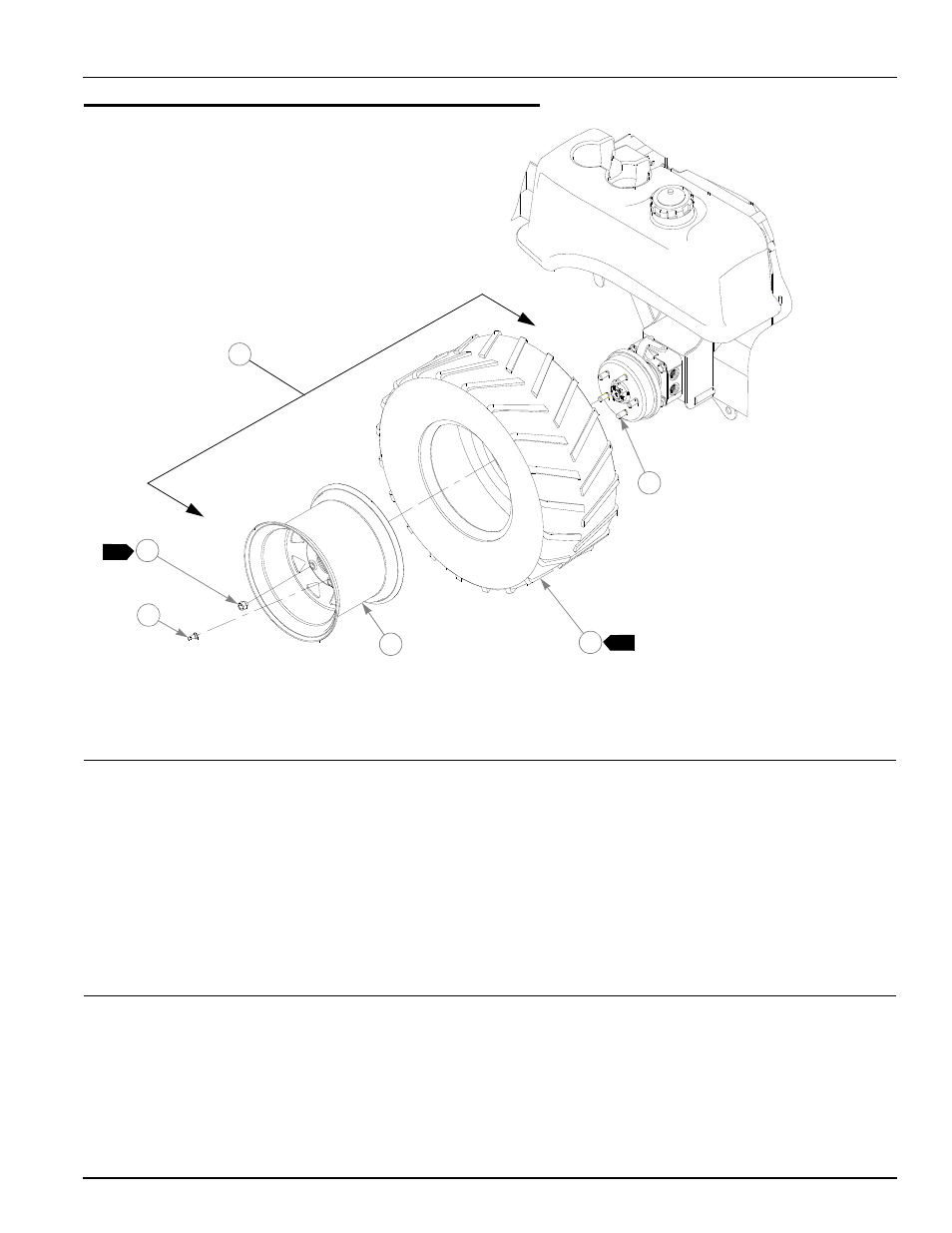

Drive Wheel Assembly Installation
NOTES:
1. Torque to 65-75 ft. lbs.
2. Inflate tire to 8-12 psi.
ITEM
NO.
SERVICE
PART NO.
MFG.
PART NO.
QTY DESCRIPTION
1 789529 789529 1 LH TIRE/WHEEL ASSEMBLY
789420 789420 1 RH TIRE/WHEEL ASSEMBLY
2 783563 N/A TIRE 24 X 12-12 AT101
3 784066 N/A WHEEL ASSY 12 X 8.50 (ATZ)
4 019521 N/A TIRE VALVE
5 061077 061077 5 WHEEL NUT (QTY PER WHEEL)
6 601085 N/A 10 ½" WHEEL LUG STUD
2
1
1
2 3
4
6
5
