Setup 17

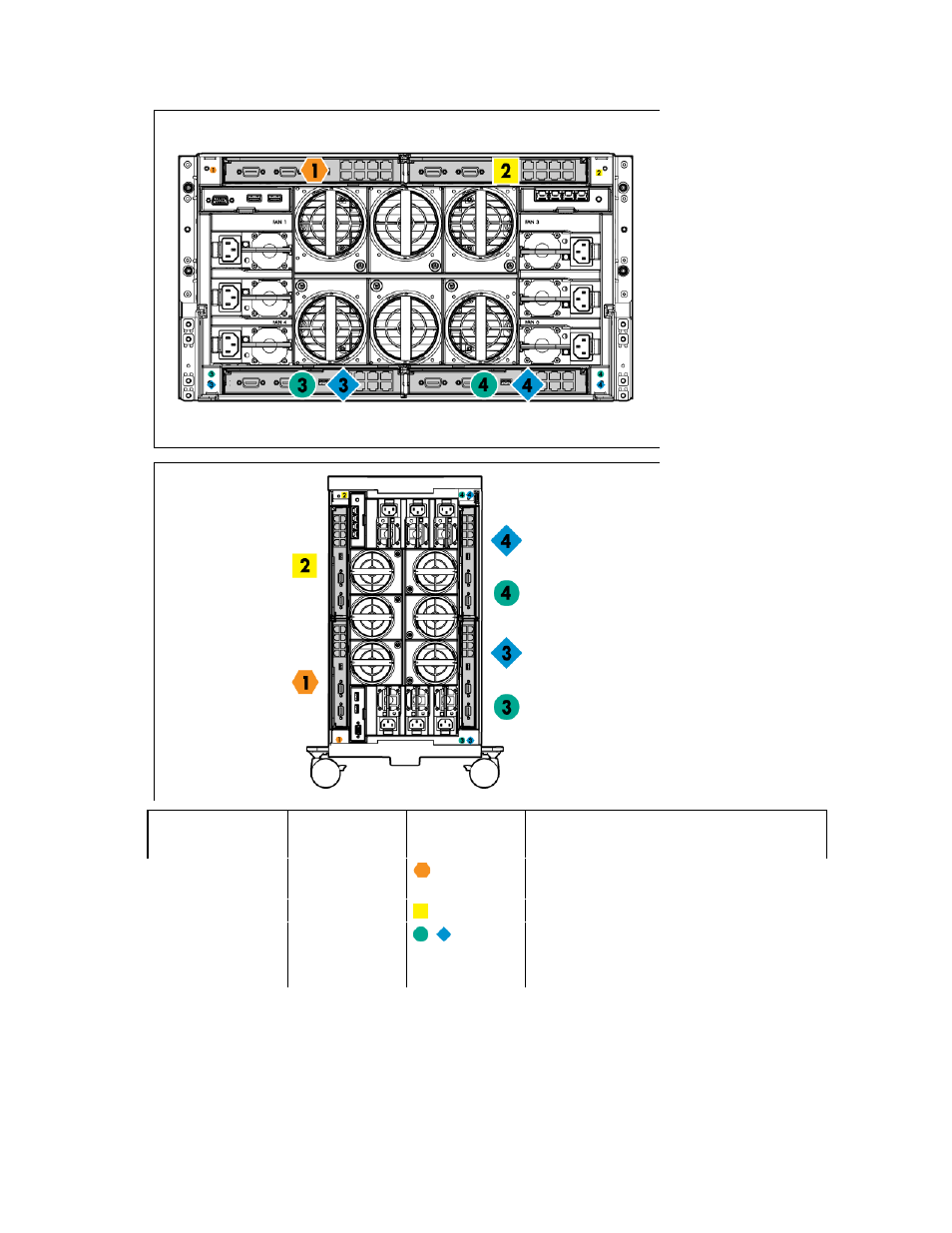

HP BladeSystem c3000 Enclosure and Tower Enclosure

Server blade signal Interconnect

bay number

Interconnect
bay label

Notes

Flex adapter 1, 2
(embedded)

1

Mezzanine 1

2

Four port cards connect to bay 2.

Mezzanine 2

3 and 4

Four port cards

Ports 1 and 3 connect to bay 3.

Ports 2 and 4 connect to bay 4.
