Huffy VP8100 - Manual (Page 25)

07/03 P/N 211636C
25
43
41
39
37
43
28

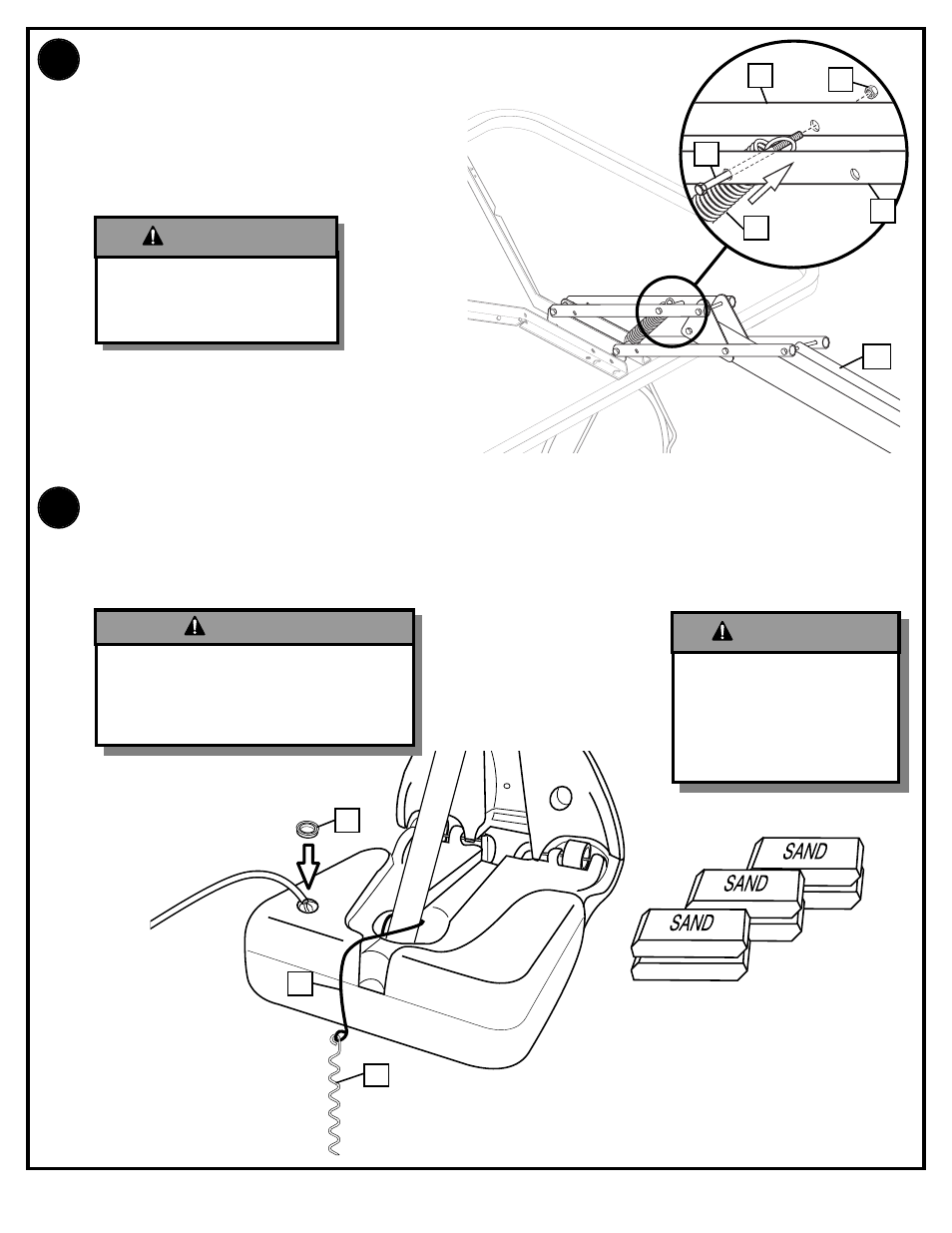

10. Insert bolt (37) through left side
ofupper elevator tube (43), then
stretch spring (41) onto bolt (37).
Insert bolt (37) through right side
ofupper elevator tube (43) and
secure with nut (39).
11. Roll completed assembly to desired position. Fill tank with water (approx.
34 gallons/129 Liters) or sand (approx. 280 lbs./128 kg) and snap cap
(49) in place. Secure assembly to ground using rope (52) and tie down
stake (53).
BALLAST
BALLAST
BALLAST
53
49
52
ADD TWO GALLONS (7.6 LITERS)
OF NON-TOXIC ANTIFREEZE IN
SUB-FREEZING CLIMATES.
CAUTION!
USE EYE PROTECTION
WHEN INSTALLING
SPRINGS.
WARNING!
DO NOT LEAVE
ASSEMBLY
UNATTENDED WHEN
EMPTY; IT MAY TIP
OVER.
WARNING!
