16
P/N 211636C 07/03

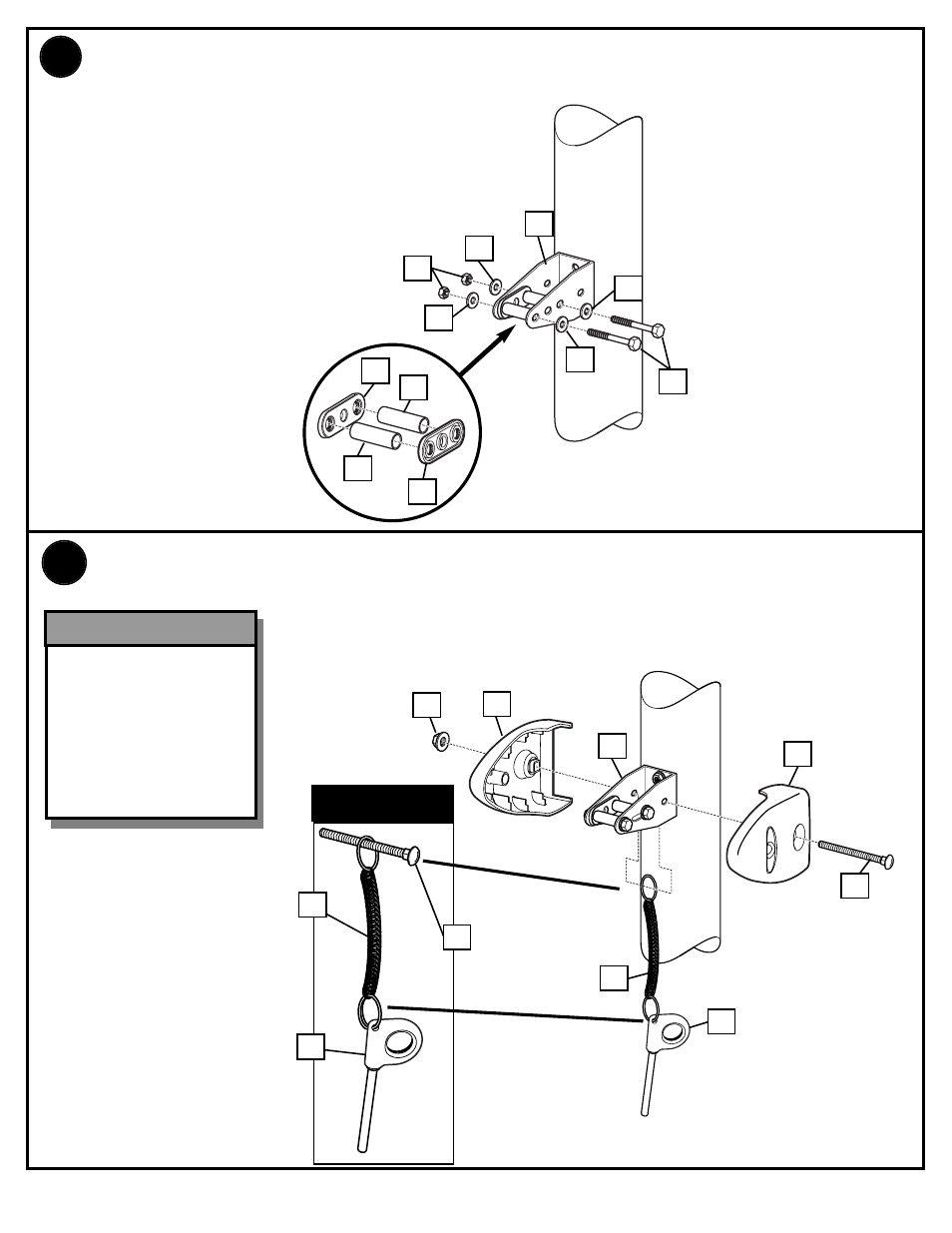

11. Attach spacers (22, 23) to pole mount bracket (17) with bolts (21), washers (19),
and nuts (20) as shown. IMPORTANT! Tighten just until washers (19) stop
moving.
Assemble lanyard (27) to locking pin (26) as shown (FIG A). Attach covers (24) onto
pole mount bracket (17) with carriage bolt (25) and nut (16) as shown.
12 .
17
19
19
20
21
19
19
23
22
22
23
17
16
26
24
24
27
25
Loop end of pin
lanyard (27) over
carriage bolt (25) as it
passes through the
pole mount bracket (17)
during this assembly.
See FIG A.
IMPORTANT!:
FIG. A
25
27
26
