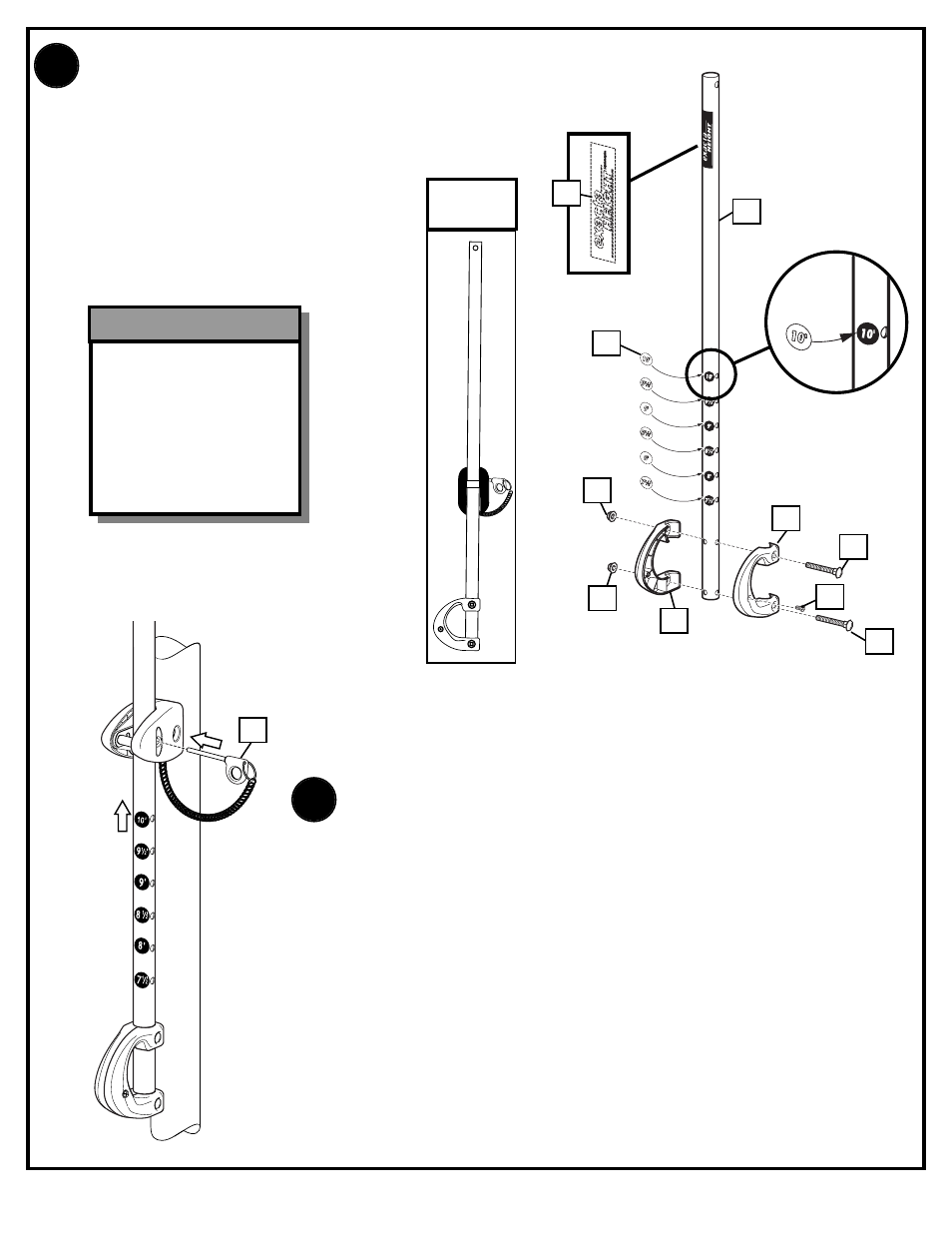

Apply logo and height indicator labels (29) to
adjustment rod (28) as shown. Attach handle
parts (32, 33) to adjustment rod with screw
(31), carriage bolts (30), and flange nuts (16)
as shown.
NOTE: Holes in adjustment rod
allow for either rear access
or side access.
13 .
Insert handle assembly through pole mount assembly as
shown. Lock pole assembly in place at the 10’ (3.05 m)
mark with pin (26).
30
16
16
33
32
31
30
28
29
29
26
Indicator labels
should be applied as
close to holes as
possible to prevent
labels from being
damaged during
height adjustment.
IMPORTANT!:
14 .
SIDE
ACCESS
