Heat & Glo • Cerona-36, Cerona-42 • 2106-900 Rev. H • 11/08 37
C. Finishing Material Options
Finishing Material Thickness from 3/4 in. to 1-1/4 in.
Finishing material within this thickness range can be
brought to 1/2 inch behind the door top and sides. These
non-combustible fi nishing materials must never overlap or
obstruct the air outlet/inlet grille areas.

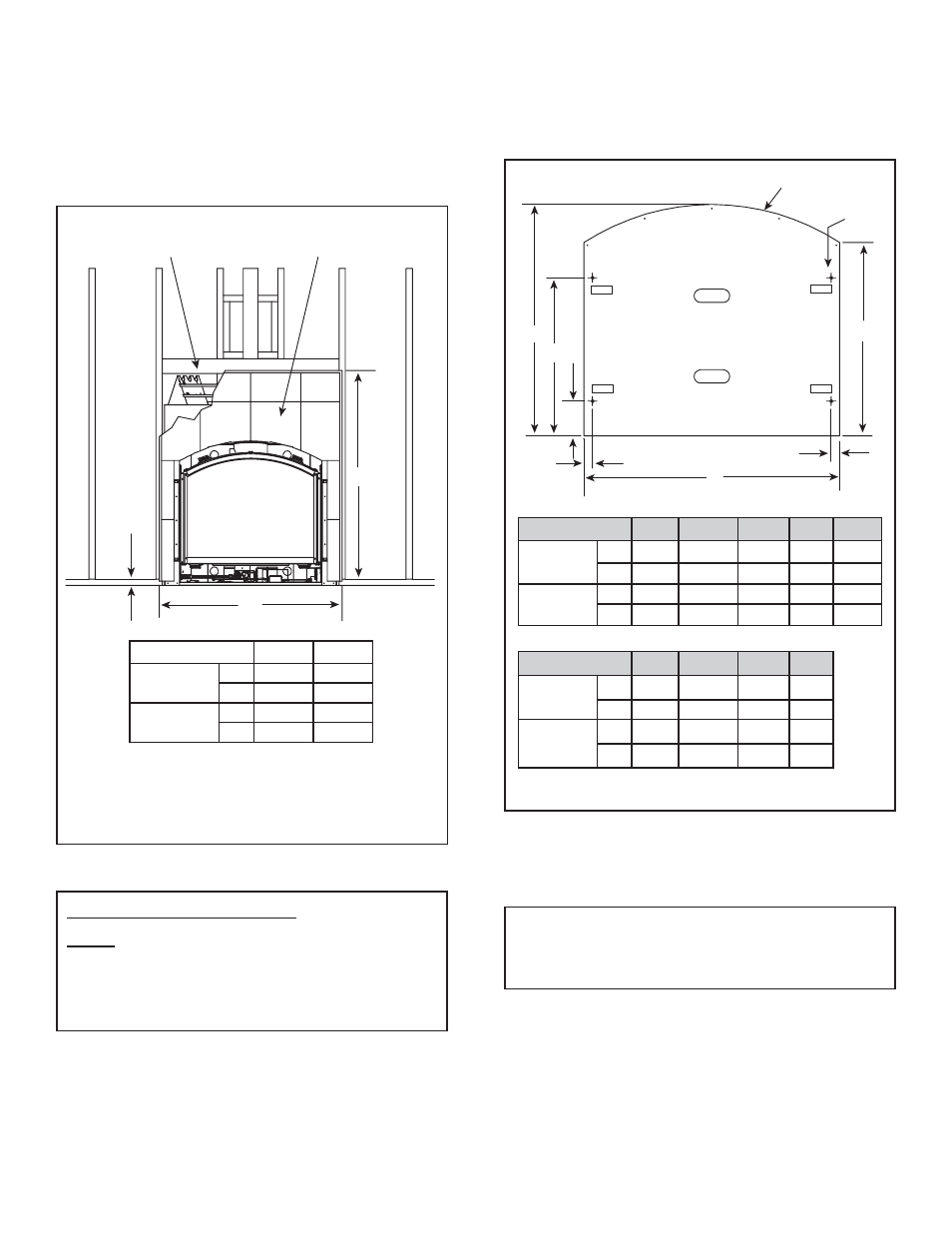

Figure 11.5
Finishing Material Thickness greater than 1-1/4 inch
A steel template (Cerona-36 Template or Cerona-42 Tem-
plate) is available for purchase to use instead of construct-
ing a template.
Non-combustible facing material is supplied with this appliance. This
material extends from the header to one inch above the appliance
bottom and from framing stud to framing stud.
Figure 11.6 Facing Template Dimensions
IMPORTANT INSTALLATION
Note: Please note that there are four holes or dots on
the template to assist in positioning the template. These
holes or dots should line up with the door mounting
holes on the unit to ensure proper placement of the
door after fi nishing materials are installed.
A B
Cerona-36
in. 43-5/8 50-3/16
mm 1108 1275
Cerona-42
in. 50-5/8 54-3/8
mm 1286 1381
F
D
C
B
A
R I
ØH
E
G
A B C D E
Cerona-36
in. 34-1/2 23-9/16 5-3/16 1-1/4 38
mm 876 598 132 32 965
Cerona-42
in. 38-7/8 25-1/4 3-5/8 2-5/8 46-1/4
mm 987 641 92 67 1175
F G H I
Cerona-36
in. 1-1/4 28-13/16 3/8 34-5/8
mm 32 732 10 879
Cerona-42
in. 2-5/8 31-7/16 3/8 39-5/8
mm 67 799 10 1006
A
B
HEADER
NON-COMBUSTIBLE FINISHING MATERIAL
(INSTALLED OVER NON-COMBUSTIBLE
FACING MATERIAL)
1 IN.
(25 mm)
Note: When mounting ATRIMSTONE-36 OR ATRIMSTONE-
42 you must install template or front to insure proper
positioning. Failure to do so will result in the front not fi tting
(see Figure 11.5).
Mounting stone eye brow: ATRIMSTONE-36,
ATRIMSTONE-42
