Setup
311053C 9
Manifolds 288219 and 288220
6. In a circulating system, connect an electrically con-
ductive fluid hose to the gun fluid outlet (G).
In a non-circulating system, remove the gun fluid
outlet fitting (G) and plug the outlet port with the
pipe plug (109) supplied.
Manifold 244930
7. This manifold is equipped with passages for circulat-
ing water to maintain the temperature of the gun.
Ports provided are:
• Side water inlet, 1/4 npt(f)
• Top water outlets, 1/8 npt(f)
• Side RTD sensor, 1/8 npt(f)
See Accessories, page 26, for available fittings and
sensors.

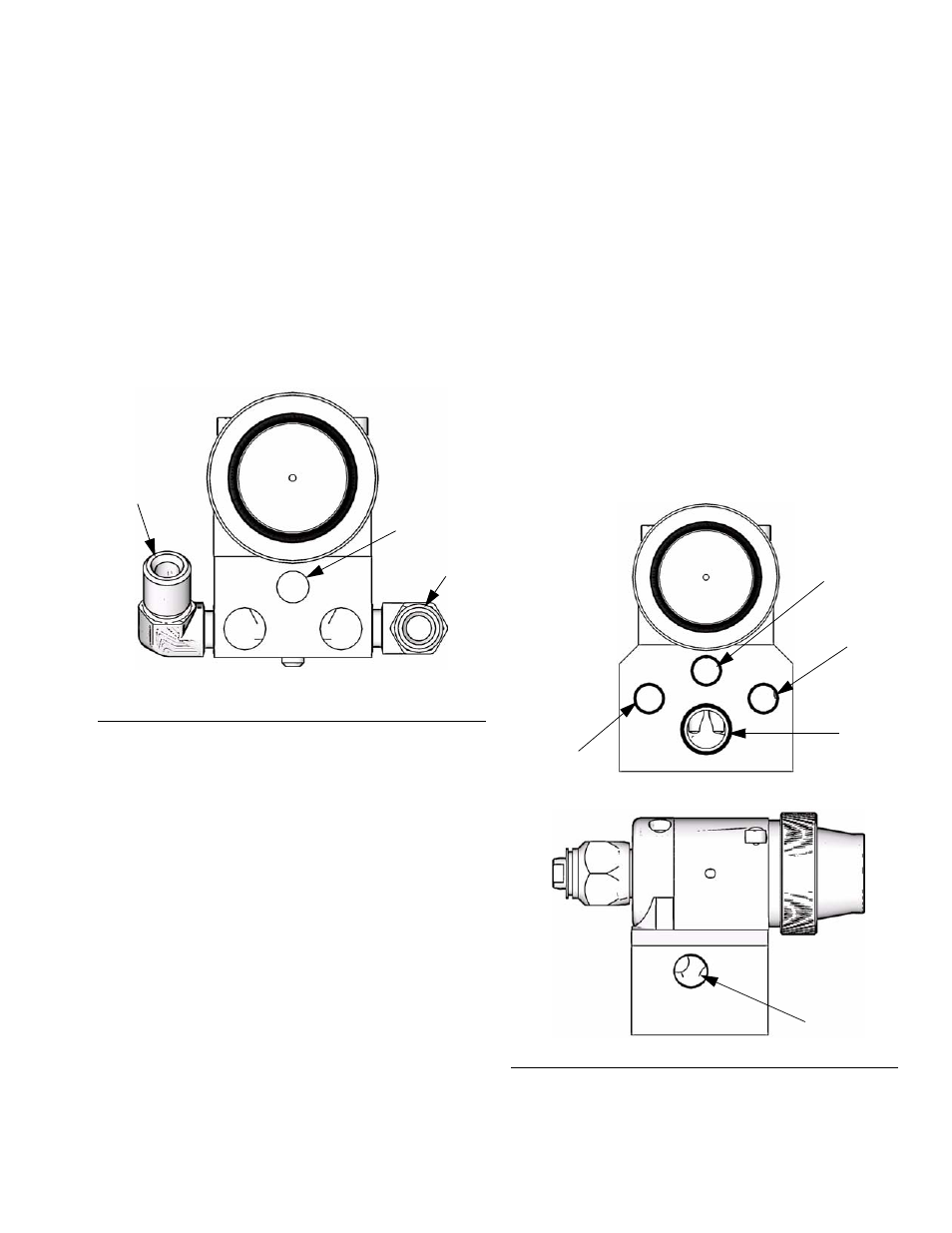

F IG . 5
KEY
C Cylinder Air Inlet: accepts 1/4 in. (6.3 mm) O.D. tubing
F Fluid Inlet: 1/4-18 nptf or #5 JIC (1/2-20 unf)
G Fluid Outlet (circulating gun only): 1/4-18 nptf or #5 JIC (1/2-20 unf)
FAN ATOM
CYL
G (or F)
C
F (or G)
TI8113a
F IG . 6
KEY
L Water Outlet: 1/8 npt(f)
M Air Inlet (to open valve): 1/8 npt(f)
N Fluid Inlet: 3/8(f)
P Water Inlet: 1/4 npt(f)
L
N
L
M
P
TI8115a
TI8116a
