Page 7
Installation
311053C
7
Mount Gun
Reciprocating Arm Rod Mount
Manifolds 241161 and 241162
To mount the gun on a reciprocating arm rod [0.5 in. (13
mm) diameter maximum]:
1.
Insert the mounting bar (A) through the hole in the
manifold as shown in F
. 3.
2.
Secure the gun to the bar by tightening the mount-
ing screw (B).
3.
Ensure the tip of the gun is 8 to 10 in. (150 to 200
mm) from the surface of the object being sprayed.
Stationary Support Mount
All Manifolds
To mount the gun on a stationary support (refer to F
4. and Mounting Hole Layout, page 28):
1.
Attach the gun to the support with two M5 x 0.8 cap-
screws (C). The screws must be long enough to
engage the threaded holes in the gun manifold to a
depth of 1/4 in. (6 mm).
2.
Ensure the tip of the gun is 8 to 10 in. (150 to 200
mm) from the surface of the object being sprayed.
Use the 1/8 in. alignment pin (P) to assist in
orienting the gun.

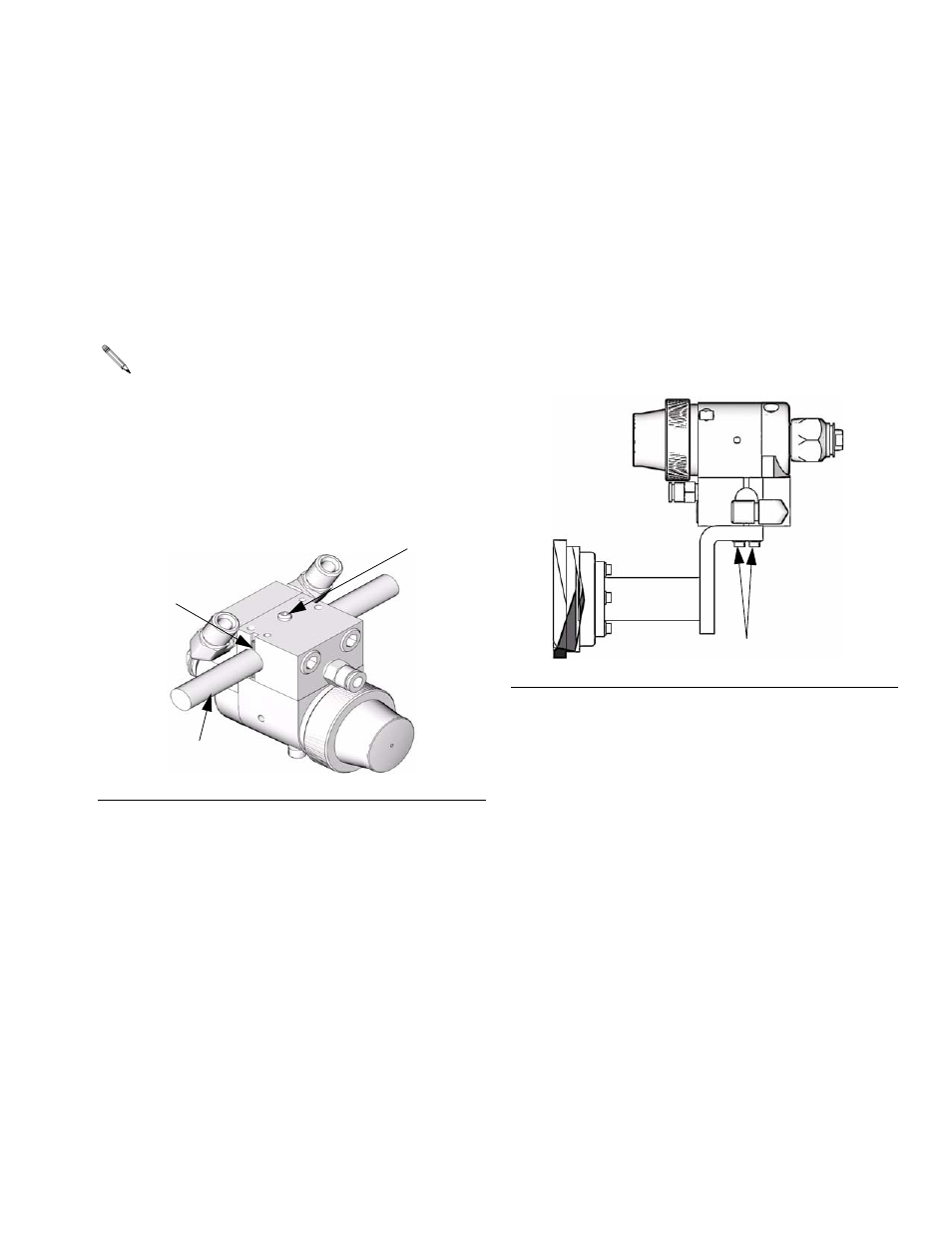

F
IG
. 3: Reciprocating Arm Mount
TI8111a
A
B
P
F
IG
. 4: Stationary Support Mount
C
TI8112a
