Service
18 311053C

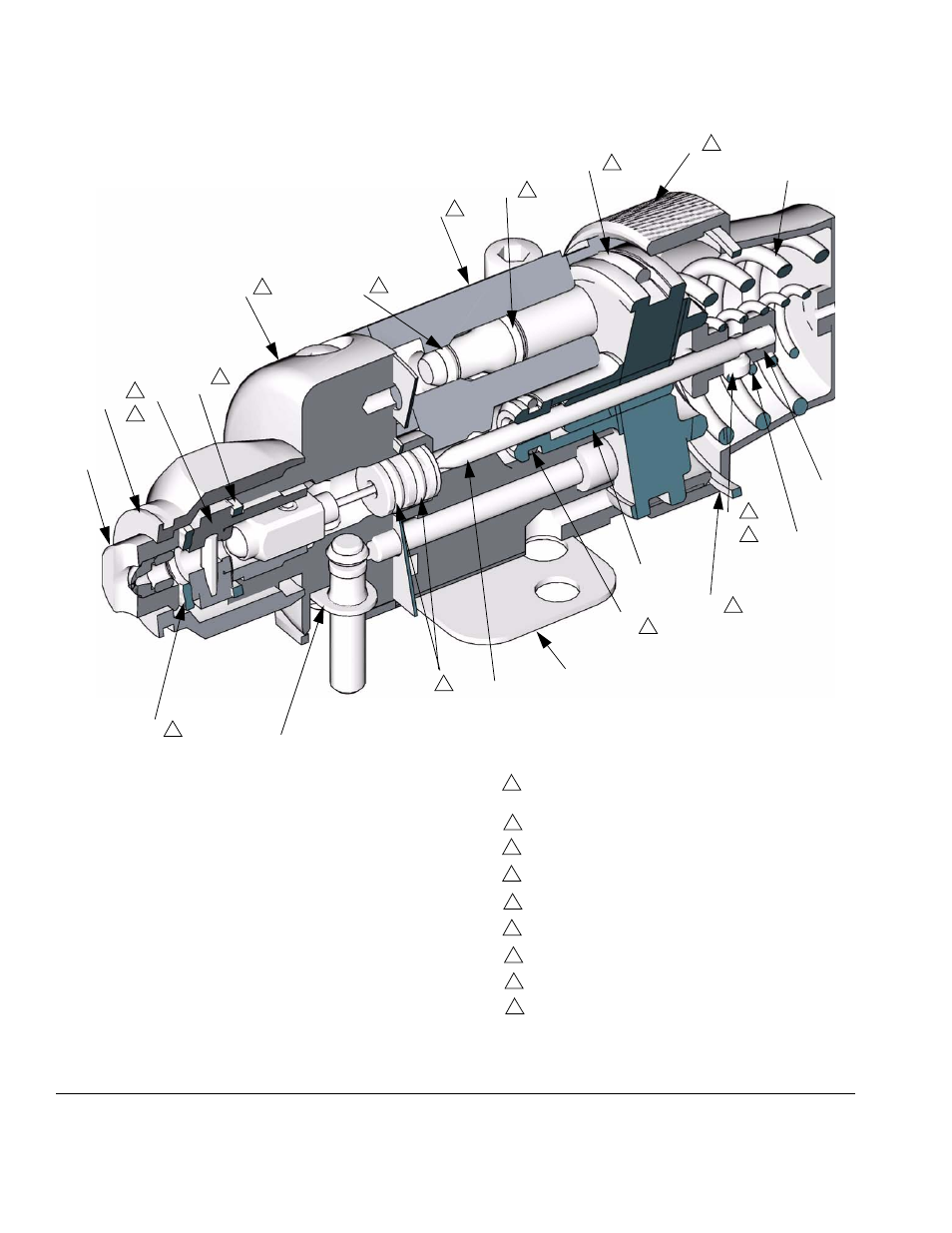

F IG . 13
SERVICE NOTES:
Seat gasket (11) must be replaced if seat (10) is
removed or replaced to avoid fluid leakage
Lubricate threads with anti-seize lubricant
Lubricate with light-weight oil
Do not lubricate
Torque to 20-25 ft-lb (27-34 N•m)
Apply semi-permanent anaerobic sealant
Torque to 4-5 in-lb (0.45-0.56 N•m)
Tighten cap (18) until it bottoms out
Model 288554 only
