Hitachi HV-D25 User Manual

Page 57

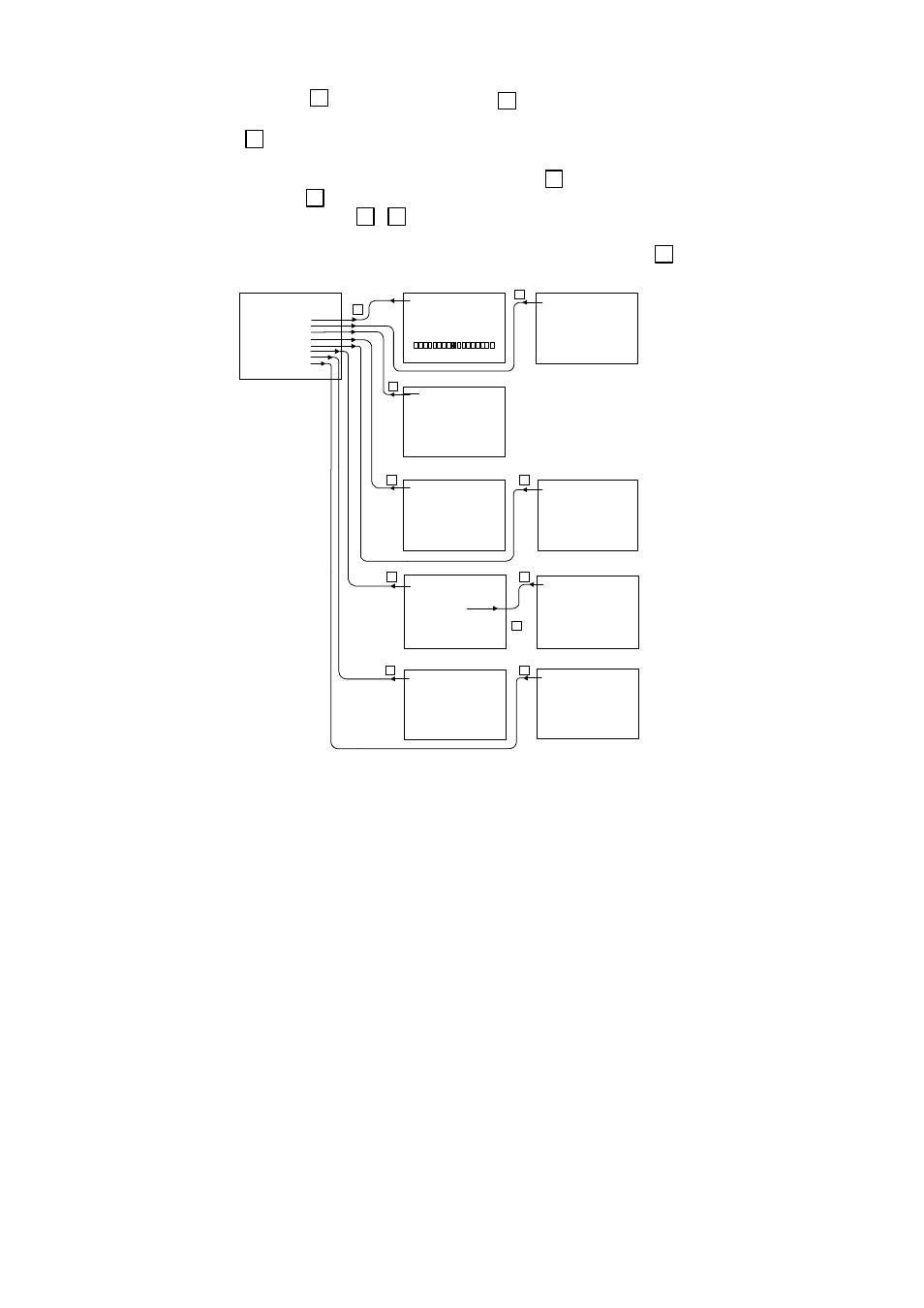

2-2. Special menu screen

Hold button D depressed and press the Setup button for 2 seconds to display the Special set menu and

produce the menu mode. To return to the direct mode, again press the Setup button to

extinguish the menu.

At Special Set menu items indicated by ->, press the ABB/R button to shift to the submenu for setting the

item. Press button D to shift the cursor to the submenu item to be changed, then

press AWB/L or ABB/R , to change the mode or data.

Return to the Special Set menu by setting the cursor to the top title line and pressing AWB/L .

SPECIAL SET

LENS :->
IRIS GATE :->
WHITE GATE :->

MASKING :->

OUTPUT/SYNC :->
ID/TITLE :->
DTL :->

IRIS GATE

GATE AREA(UP/DOWN)
GATE AREA(LEFT/RIGHT)
GATE AREA(LARGE/SMALL)

WHITE GATE

GATE AREA(UP/DOWN)
GATE AREA(LEFT/RIGHT)

ID/TITLE

ID :OFF
TITLE :OFF
DATA SET :>

MASKING (APP-1)

R HUE:- 2 R SAT: 11
Y HUE: 0 Y SAT: 0
G HUE: 0 G SAT: 2
C HUE: 0 C SAT: 7
B HUE: 2 B SAT: 12
M HUE: 9 M SAT:- 2

INITIALIZE

OUTPUT/SYNC

OUTPUT :R,G,B
MONO :OFF
SYNC ON G :OFF
GL IN :75ƒ¶
GL MODE :VBS
SC COARSE : 0•‹
SC FINE : 0
H PHASE : 0

DTL

LEVEL DEP. : 0
CRISP : 0
H/V BALANCE : 0

INITIALIZE

DATA SET

ID :003
TITLE :HITACHI

1234567890_?
ABCDEFGHIJKL
MNOPQRSTUVWX
YZ<>+-*/.,:;

←→

DEL INS RET

GAMMA :->

LENS (APP-1)

LENS TYPE :VIDEO
IRIS GAIN : 0
REFERENCE

AWB/

ABB/

AWB/

ABB/

AWB/
