Quick ROBOtics light weight tORch
2-5
SM-QRLTORCH
QRL Air-cooled Torch Assembly
The air-cooled QRL torch assembly uses the QTR 66 series air-cooled conductor tubes. The air-cooled power cable is rated
for 400 amperes with a 60% duty cycle.
• Sold Separately - RDML-2000-JC E-Stop Jumper Cable.
This cable enables the connection of the QRL Torch to the
RDM 2000 series “Tweco
® Robotics Deflection Mount”.
(Stock No. 3044-1860)

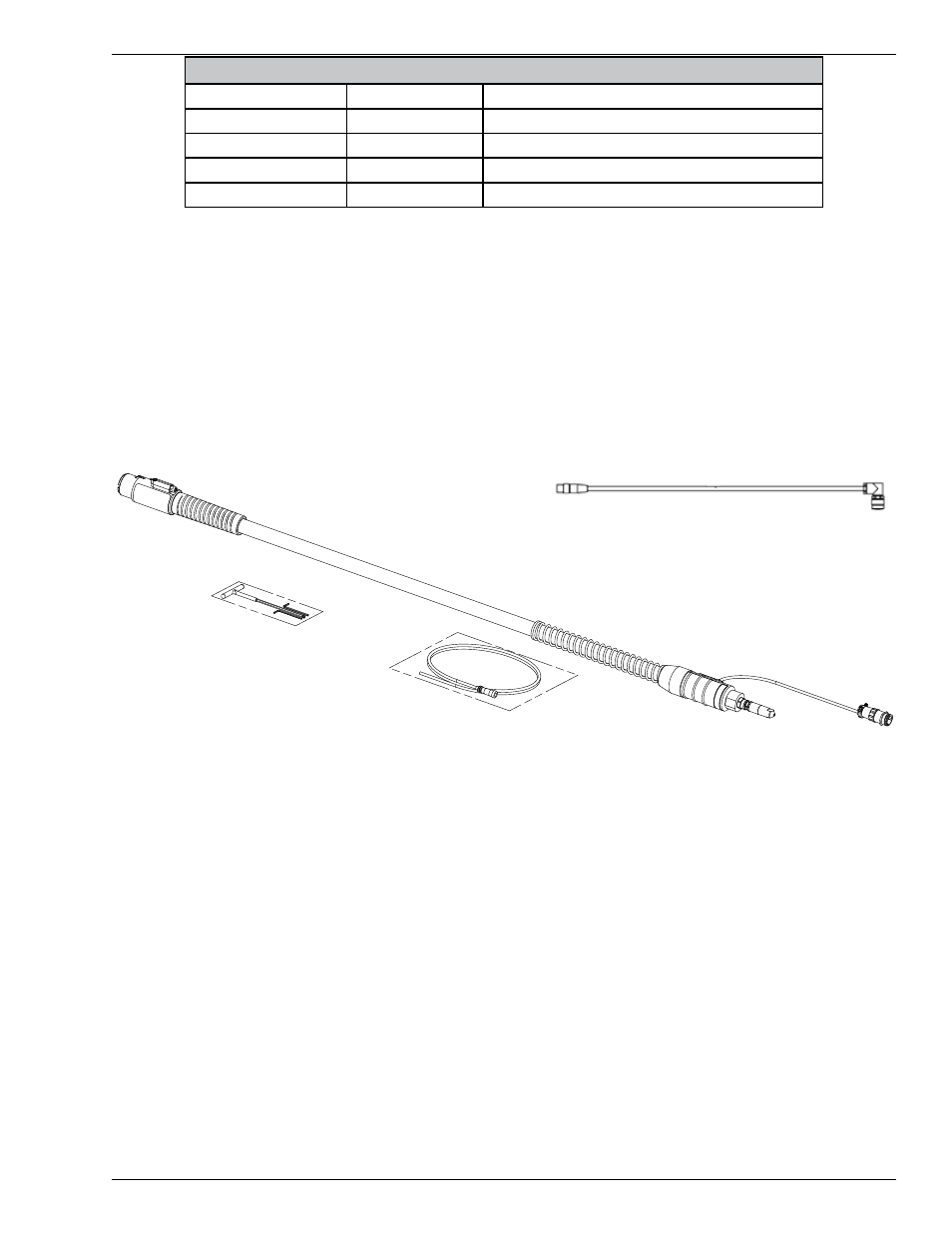

Figure 1: QRL Series “Air-cooled” Assembly
INTRODUCTION AND DESCRIPTION
Table 1: Light Weight Mount Arms
Part No. Stock No. Description
RDML - A -180 3500-1460 180° RDM Light Weight Mount Arm
RDML - A -180L 3500-1461 180° (Long) RDM Light Weight Mount Arm
RDML - A - 22 3500-1462 22° RDM Light Weight Mount Arm
RDML - A - 22L 3500-1463 22° (Long) RDM Light Weight Mount Arm
