ENGLISH
28

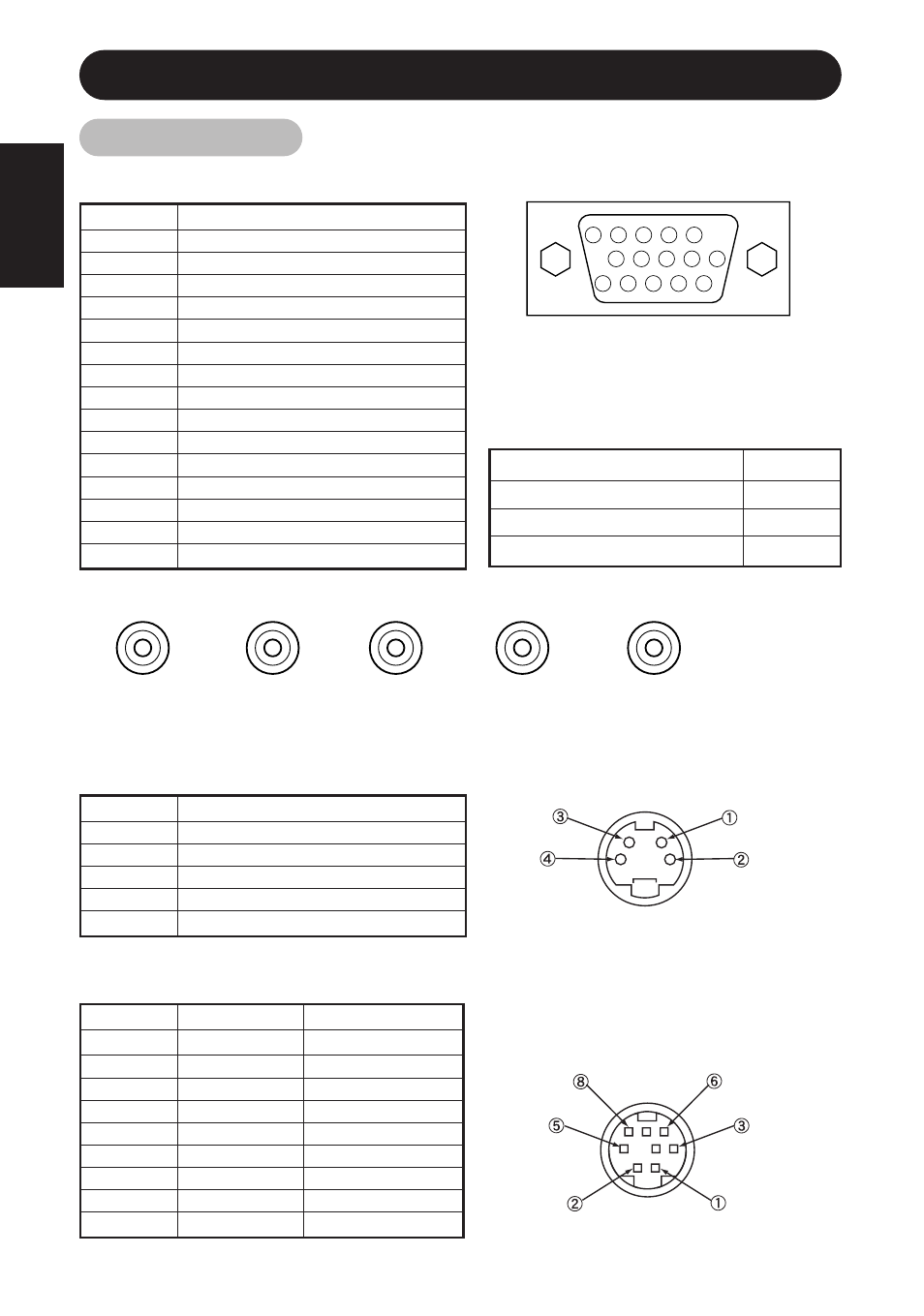

PRODUCT SPECIFICATIONS (continued)
Signal Input
Pin
Input signal
1
R. video
2
G. video or sync on green
3
B. video
4
No connection
5
No connection
6
R.GND
7
G.GND
8
B.GND
9
No connection
10
GND
11
No connection
12
[SDA]
13
H. sync or H/V composite sync
14
V.sync. [V.CLK]
15
[SCL]
■ RGB terminal (D-sub 15-pin connector)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
• When different kinds of input signals are
simultaneously input to the monitor via a
graphics board or the like, the monitor
will automatically select the signals in the
following priority order:
Sync signal type
Priority
H/V separate sync.
1
H/V composite sync.
2
sync.on Green
3
■ RGB terminal (BNC connector)
V.sync.
H. sync or H/V
composite sync
G. video or sync
on green
R. video
B. video
■ S-input connector pin specifications
■ Serial connector pin specifications
Pin
Input signal
Remarks
1
No connection
2
RXD0
Unit
←
PC
3
TXD0
Unit
→
PC
4
GND
5
No connection
6
GND
7
No connection
8
No connection
Frame
GND
Unit GND
↔
PC GND
Pin
Input signal
1
Y
2
Y-GND
3
C
4
C-GND
Frame
GND
