ENGLISH
3

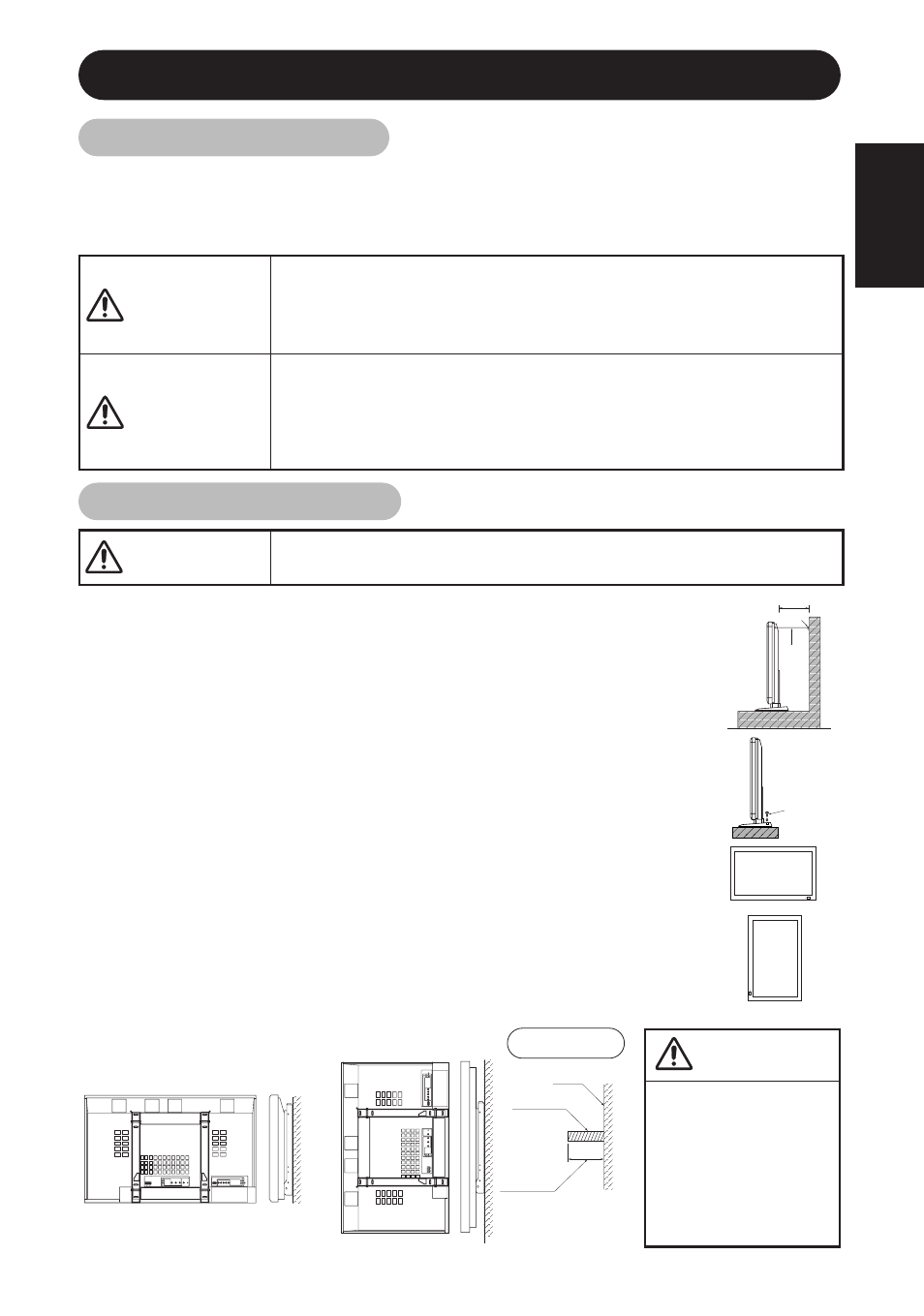

INSTALLATION INSTRUCTIONS
■ To preserve the performance of this product and to maintain safety, always use one
of the special mount units for installation.
Special mount units (options): Wall Mount Unit (horizontal-mount CMPAK04, vertical-mount
CMPAK14), Ceiling Mount Unit (CMPAT04)
Installation
•
Use one of the special mount units to install this product. A mount of
insufficient strength or inadequate design can cause overturning or dropping
and result in fire, electrical shock or injury. Please note that our company
assumes absolutely no responsibility for personal injuries or property damage
caused by use of other mount units or improper installation.
•
Installation of the wall mount unit and ceiling mount unit can be dangerous,
so do not attempt this work yourself. Ask your dealer to provide the name of
a qualified installer.
•
In order to prevent an internal temperature increase, maintain a space of
10cm (4 inches) or more between the sides and other objects such as walls,
etc., so that the ventilation holes are not blocked.*
WARNING
CAUTIONS
Cord
or
chain
Clamp
10cm (4 inches) or more *
Two places
Wood screw
Securing to a wall or pillar
1)Using a commercially available cord, chain and clamp, secure the set to a firm wall or
pillar.
Securing desktop
1)Using wood screws (two), fasten the set to the clamping screw holes on the rear of the
stand as shown.
2)Using commercially available wood screws, secure the set firmly in position.
Using the optional vertical-mount unit (CMPAK14)
Using the optional wall-mount unit (CMPAK14) allows set to mount on wall surfaces as
shown at right.
1) Make at least four sets of commercial anchor bolts and screws available to meet various kinds of
walls to mount on.
2) Read the instructions supplied with the wall-mount unit carefully to optimally locate the plasma
display on a wall surface.
3) Prepare the wall surface for anchoring and drilling as needed, as shown in the sketches.
• Make sure that an adequate wall surface strength and a screw holding strength are available.
Anti-tumble measures
•
Have this unit mounted in a stable place. Take measures to prevent it from
tumbling down to avoid possible physical injury.
CAUTION
■ Upper left vertical mounting
■ Horizontal mounting
Plasma display outline
Wall
surface
Driving anchor bolts into
a wall surface
Plasma display outline
Anchor bolt
Hold to 25 mm
or below.
Horizontal mounting
Upper left vertical mounting
•
The unit, when mounted,
should have the power
switch at its bottom.
Otherwise, an elevated
internal temperature rise
could cause the unit to
fail or fire.
CAUTION
