Batch Feeder Diagram
A
B
F
G
H
C
D
E

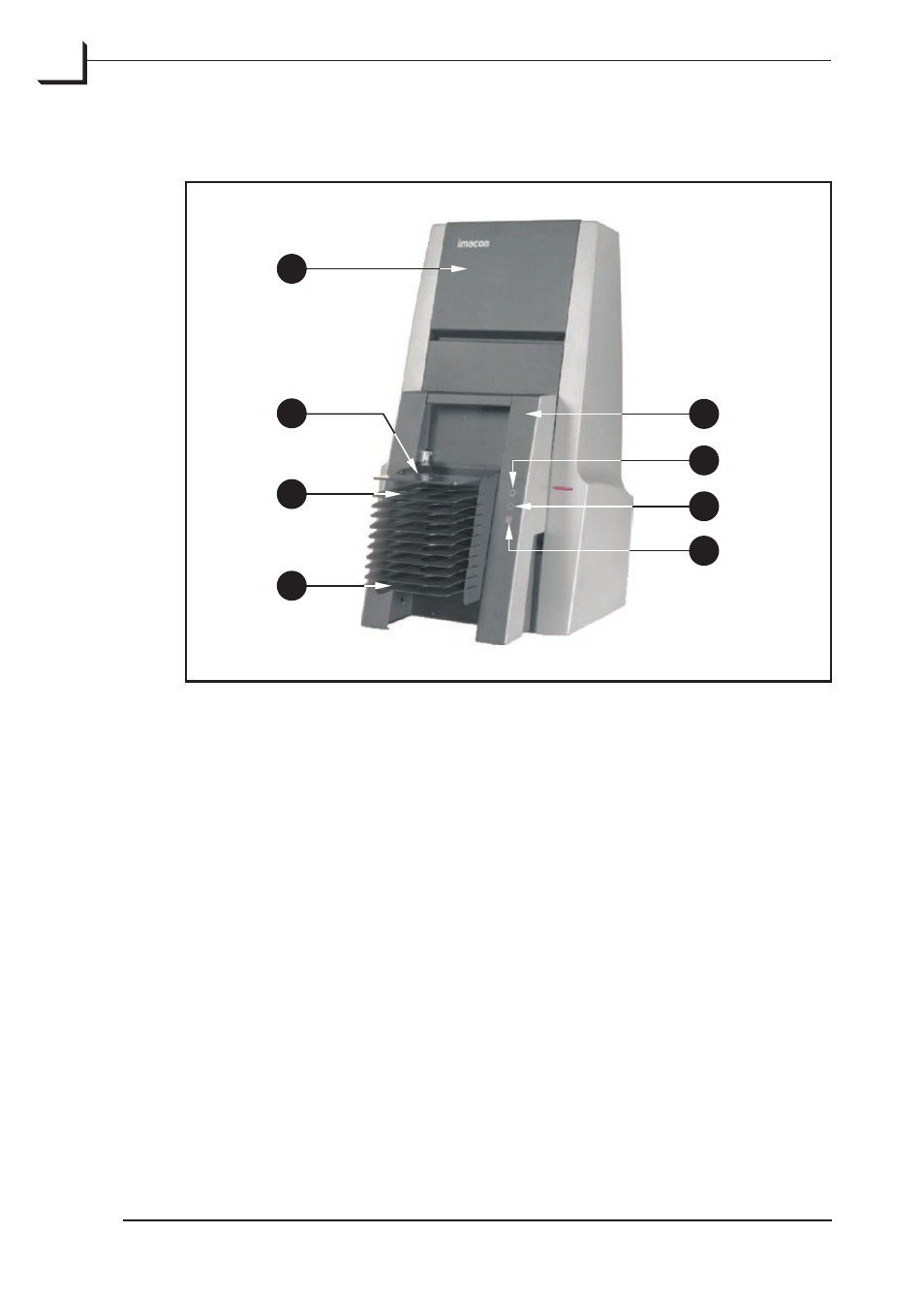

Figure 1: Hasselblad Flextight 848 Scanner with Batch Feeder
Hasselblad Flextight 848 (or 949) Scanner.
Batch Feeder
Dust cover: to protect the originals and scanner entrance from dust.
Magazine: showing original holder position 1.
Magazine: showing original holder position 10.
Power Indicator (Green): Remains lit when ready to scan. Flashes
when the scanner is switched on.
Motor Drive Indicator (Yellow): lights up when the scanner is repo-
sitioning the optics, drum or Feeder magazine.
Scan Indicator (Red): lights up when scanning. Do not touch the
scanner or Feeder while this indicator is lit. If the light is flashing
when not scanning, then an error has occurred - please contact your
Flextight dealer for assistance.
