Hasselblad 848 User Manual
Page 28

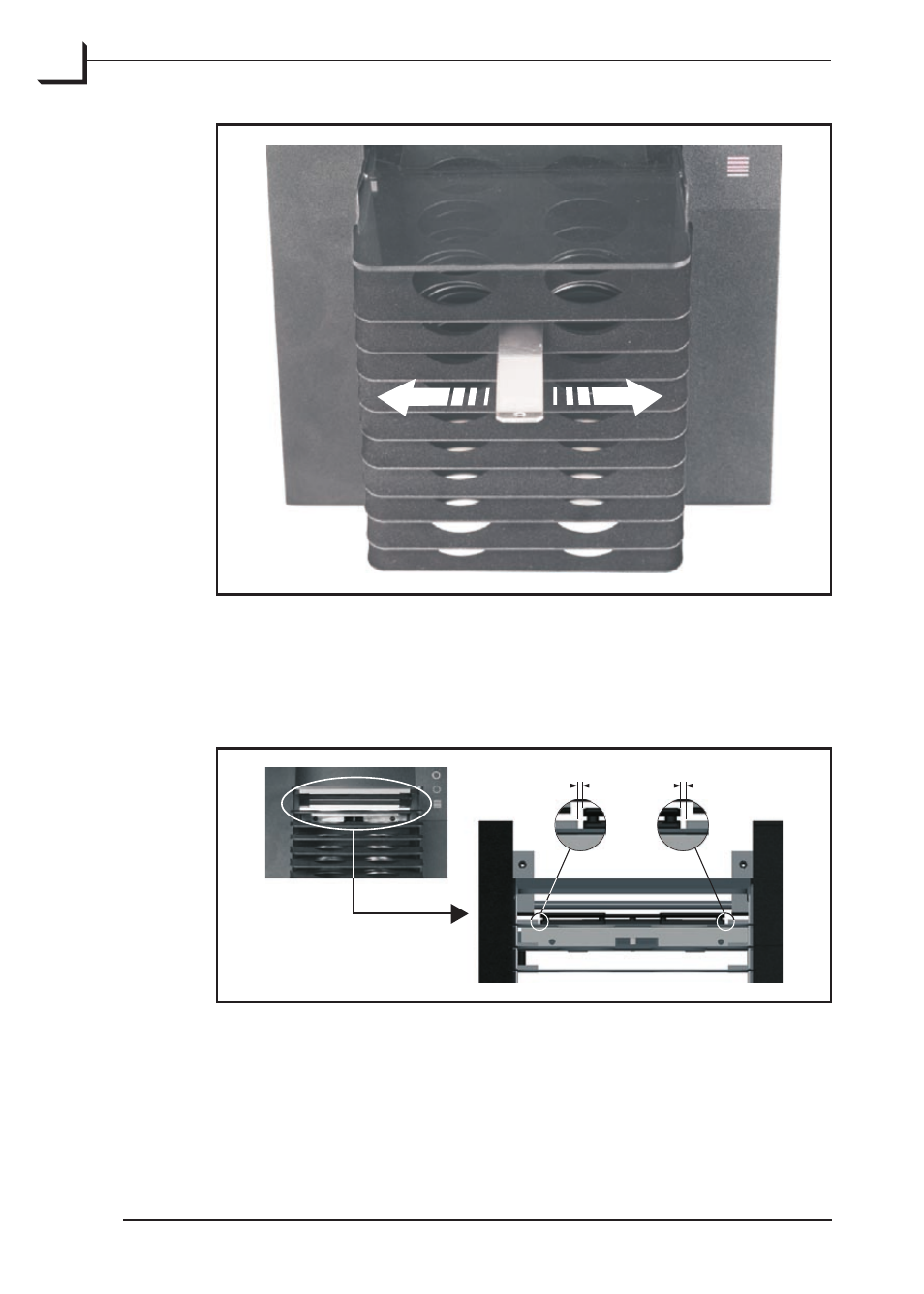

Figure 9: Using the adjustment tool
Move the adjustment tool left and right to adjust the Feeder position
so the Feeder is centered with reference to the grabber for the original
holder inside the scanner (see also Figure 10).
X
X
Figure 10: Adjusting the Feeder position
When you have finished adjusting the Feeder, go back to your com-
puter and click on
Continue
in the
Align Feeder
window.
7.
8.
