Hasselblad 848 - Manual (Page 26)

Find the adjustment tool that was supplied with your Batch Feeder. It
is a thin metal bar with notches cut at each end.
Use the adjustment tool to loosen the self-locking nut on the right
side on the rear of the Feeder as indicated in Figure 8.
NOTE! Do not touch similar looking nuts to the left.

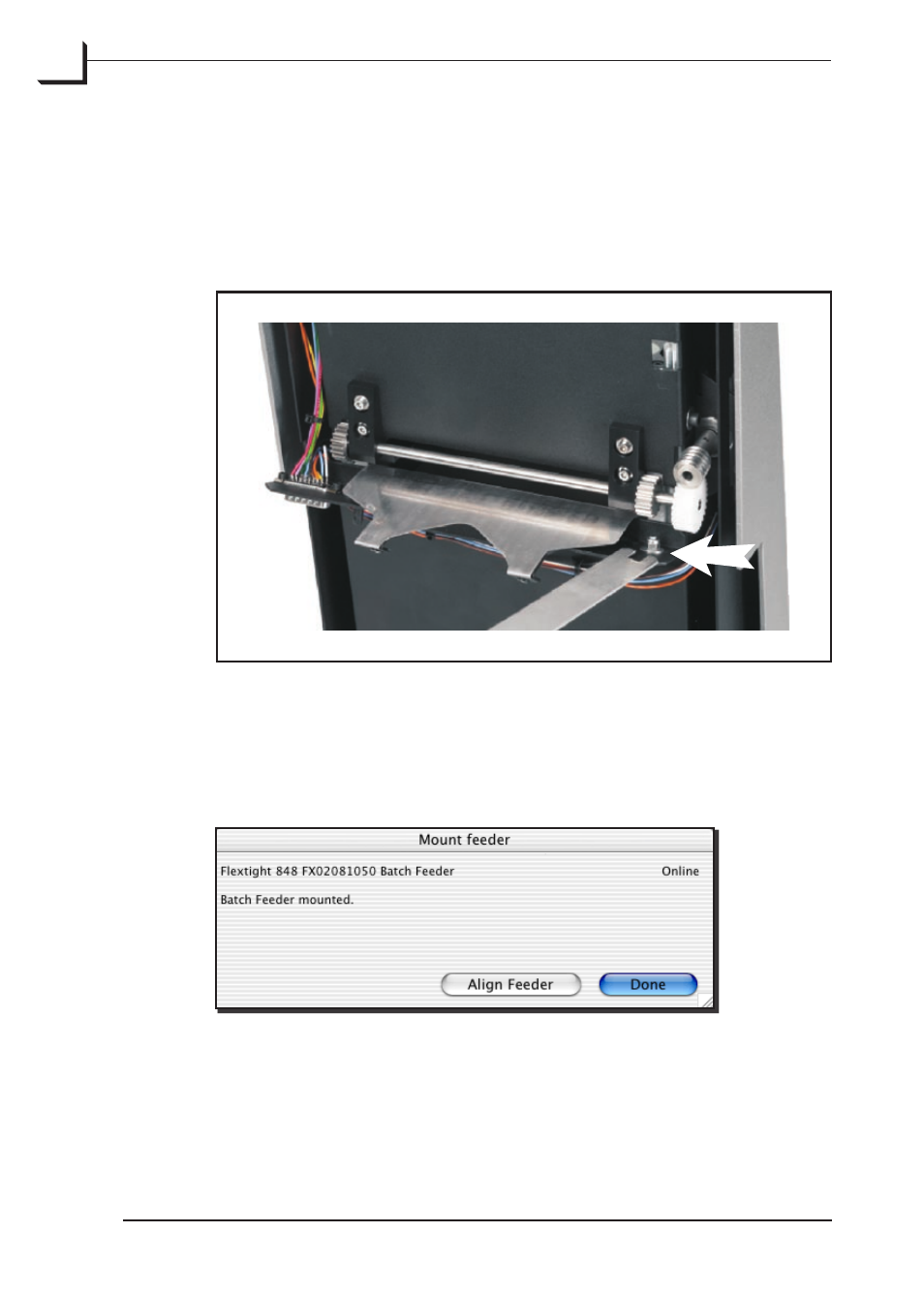

Figure 8: Unlocking/locking the Feeder position
Use the software-assisted procedure to mount the Feeder to the scan-
ner as described in “Mounting the Feeder” on page 8. However when
you get to the last step, keep the Mount feeder window open (do not
click on Done )
2.
3.
4.
