Heat & Glo • SLR-C • 2292-900 Rev. H • 2/13

13 in.

(330 mm)

15 in.

(381 mm)

8-1/8 in.

(206 mm)

10-7/8 in.

276 mm

10-1/2 in.

267 mm

87°

Effective Length

5-3/4 to 8-3/8 in.

146 to 213 mm

5-1/2 in.
140 mm

8-3/8 in.
213 mm

SLP-HRC-SS

SLP-HRC-ZC-SS

HORIZONTAL TERMINATION CAP

Note: The SLP-HRC-SS and SLP-HRC-ZC-SS
termination caps are not approved for use with
propane (LP) fuel.

SLP-TRAP

Horizontal Termination Cap

15-1/8 in.

(384 mm)

Note: Heat shields MUST overlap by a minimum of 1-1/2 in. (38 mm). The heat shield is designed to be
used on a wall 4 in. to 7-1/4 in. (102 mm to 184 mm) thick. If wall thickness is less than 4 in. (102 mm)
the existing heat shields must be field trimmed. If wall thickness is greater than 7-1/4 in. (184 mm) a
DVP-HSM-B will be required.

Heat

Shield

Term Cap

Minimum

Effective Length

Maximum

Effective Length

Trap1

3-1/8 in.

4-3/4 in.

79 mm

121 mm

Trap2

5-1/4 in.

9-1/4 in.

133 mm

235 mm

8 in.

(203 mm)

12 in.

(305 mm)

Max

Effective

Length

SLP90

SL-2DVP

DVP-FBHT

DVP-FBHT

7 IN.

178 mm

15-1/2 IN.

394 mm

12 IN.

305 mm

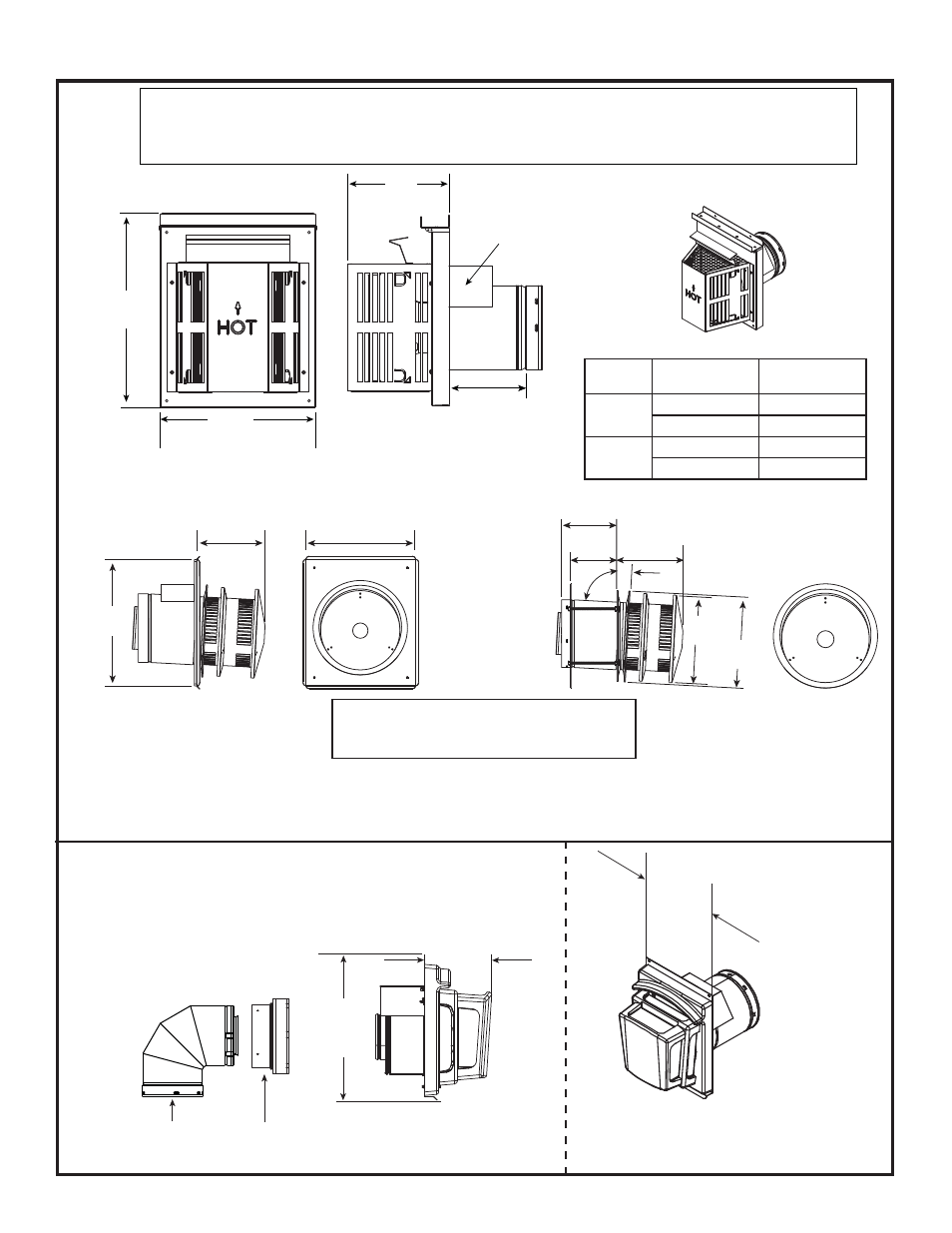

Figure 16.4 SLP Series Vent Components

B. Vent Components Diagrams (continued)
