Non-Combustible Finish Material 0-4 Inches Thick
Bottom Joint
3/4 IN. 3/4 IN.
3 IN.

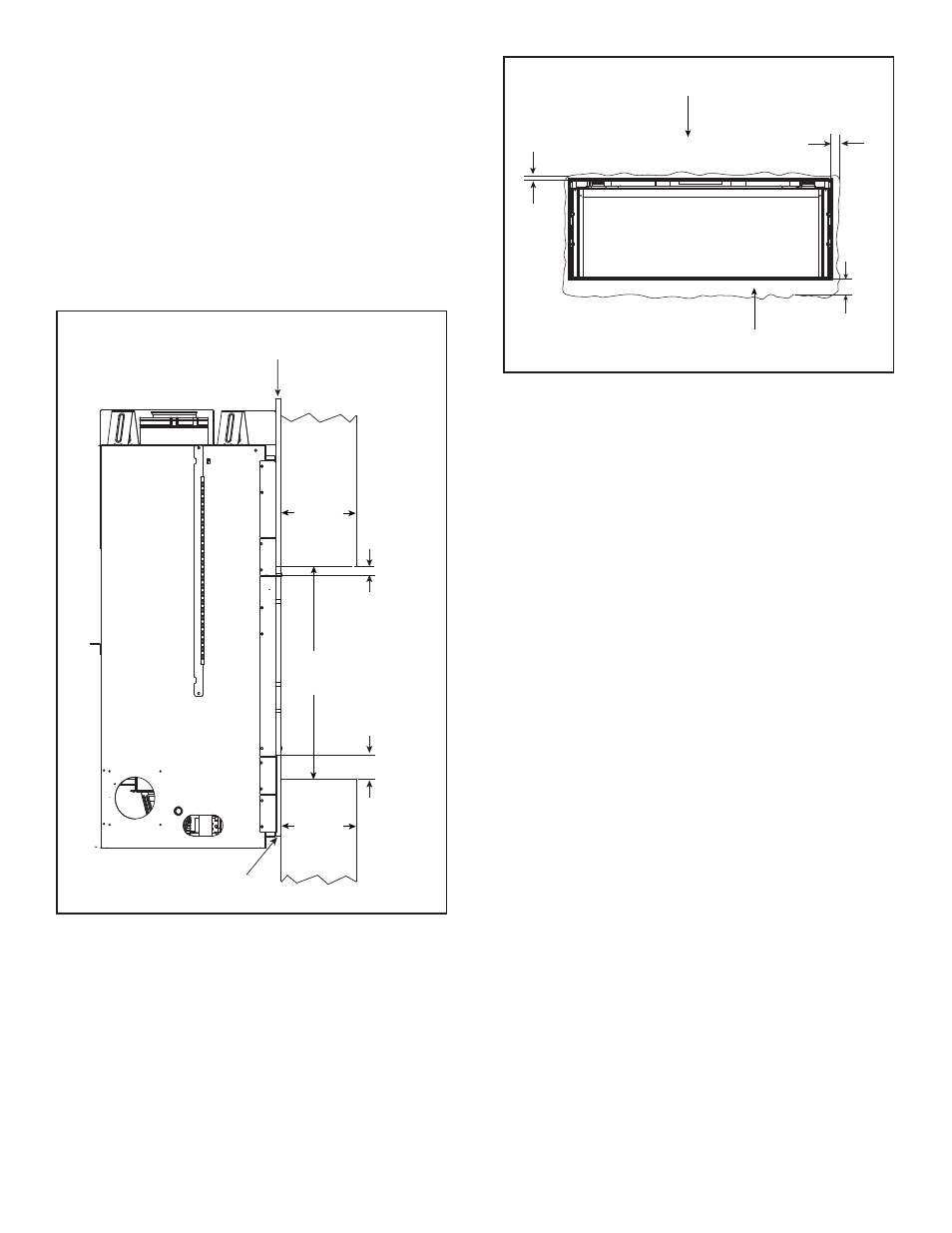

Figure 13.11 Noncombustible Surface Finishing Material 0-4 Inch
Thick-Inside Fit Method (Tonic Decorative Front
Only)
FACTORY-INSTALLED
NON-COMBUSTIBLE
BOARD
DRYWALL OR
EQUIVALENT
(1/2 IN.)
20-1/2 IN. APPLIANCE
OPENING (HEIGHT)
3/4 IN.
3 IN.
0 - 4 IN.
0 - 4 IN.
Figure 13.10 Inside Fit Method (Tonic Decorative Front Only)
Non-Combustible Finish Materials
0 Inches to 4 Inches Thick Inside Fit Method
The Tonic decorative front is approved for inside fi t ap-
plications. Non-combustible fi nishing materials up to 4
inches thick can be installed around the front (left, right,
top, and bottom).
For the Tonic decorative front inside fi t applications, the
decorative front must be installed tight to the fi nishing
fl anges and must not overlap any fi nish material.
Ensure that minimum clearances to non-combustible fi n-
ish materials meet the specifi cations in Figure 13.11.
