15 Heat & Glo • SLR-C • 2292-900 Rev. H • 2/13
A. Typical Appliance System
NOTICE: Illustrations and photos refl ect typical installations and are for design purposes only. Illustrations/diagrams are not
drawn to scale. Actual product may vary from pictures in manual

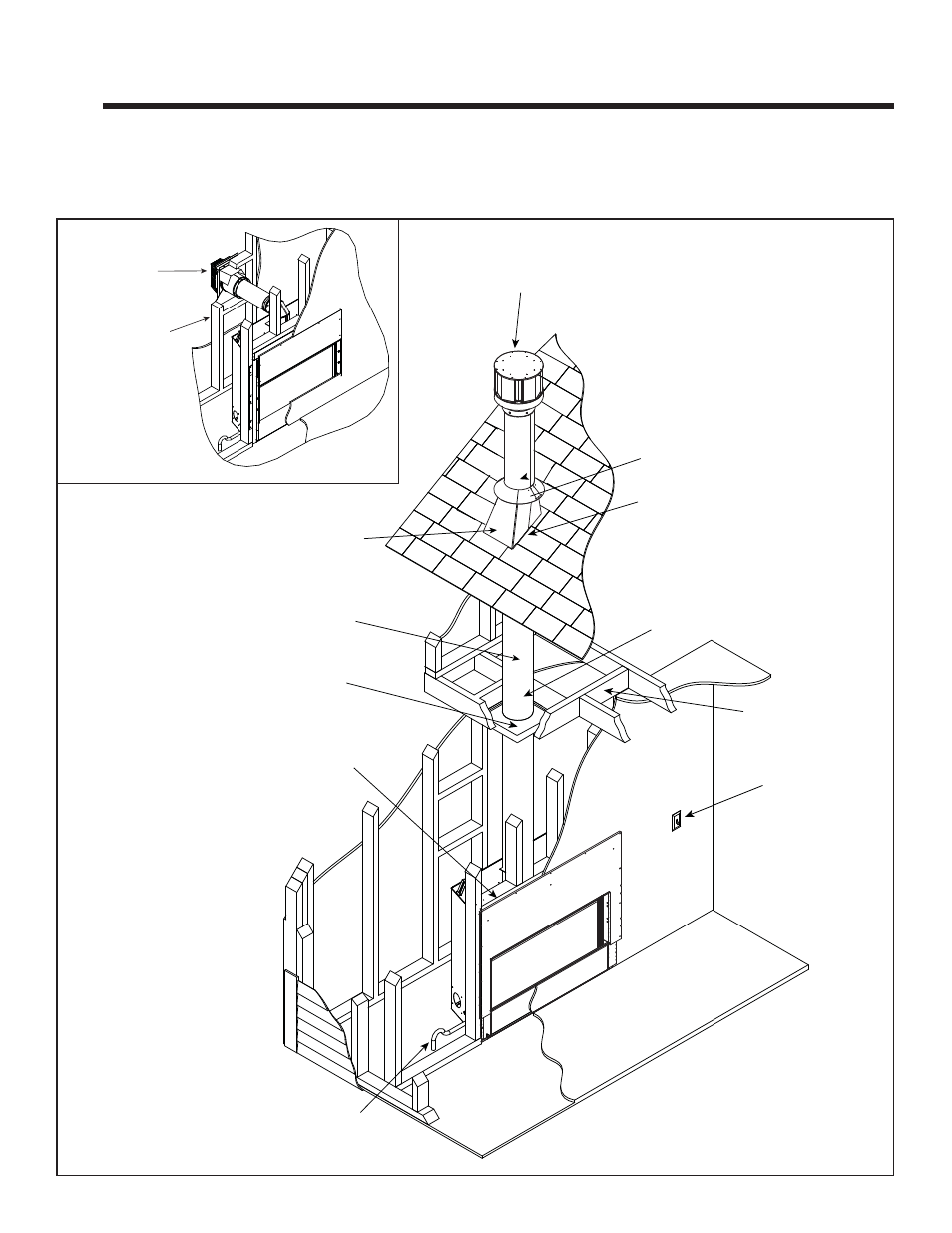

Figure 4.1 Typical System
4 4
Getting Started
Installer Guide
HORIZONTAL
TERMINATION CAP
(SECTION 10.K)
WALL PENETRATION
FRAMING
(SECTION 8.B)
VERTICAL TERMINATION CAP
(SECTION 10.H)
NON-COMBUSTIBLE ROOF
FLASHING MAINTAINS MINIMUM
CLEARANCE AROUND PIPE
(SECTION 10.F)
STORM COLLAR
(SECTION 10.G)
VENT PIPE
(SECTIONS 7 and 8)
CEILING FIRESTOP ON FLOOR
OF ATTIC (SECTION 8.C)
FRAMING/HEADER (SECTION 5)
GAS LINE
(SECTION 11)
WALL SWITCH
FRAMING HEADED
OFF IN CEILING
JOISTS (SECTION 8.C)
ATTIC INSULATION SHIELD (NOT
SHOWN) MUST BE USED HERE
TO KEEP INSULATION AWAY
FROM VENT PIPE IF ATTIC IS
INSULATED. (SECTION 8.D)
VENT PIPE PENETRATES
ROOF PREFERABLY
WITHOUT AFFECTING ROOF
RAFTERS (SECTION 8.C)
