Heat & Glo Fireplace Heat & Glo SLR-C (COSMO) - Manual (Page 63)

63 Heat & Glo • SLR-C • 2292-900 Rev. H • 2/13
8-3/4 in.
222 mm
6-1/2 in.
165 mm
6-5/8 in.
168 mm
6 in.
152 mm
6-1/2 in.
165 mm
6-5/8 in.
168 mm
9-7/8 in.
251 mm
6-1/2 in.
165 mm
9-1/4 in.
235 mm
SLP-45 - 45° Elbow
SLP90- 90° Elbow
Effective
Height/
Length
SLP-PIPE
B. Vent Components Diagrams

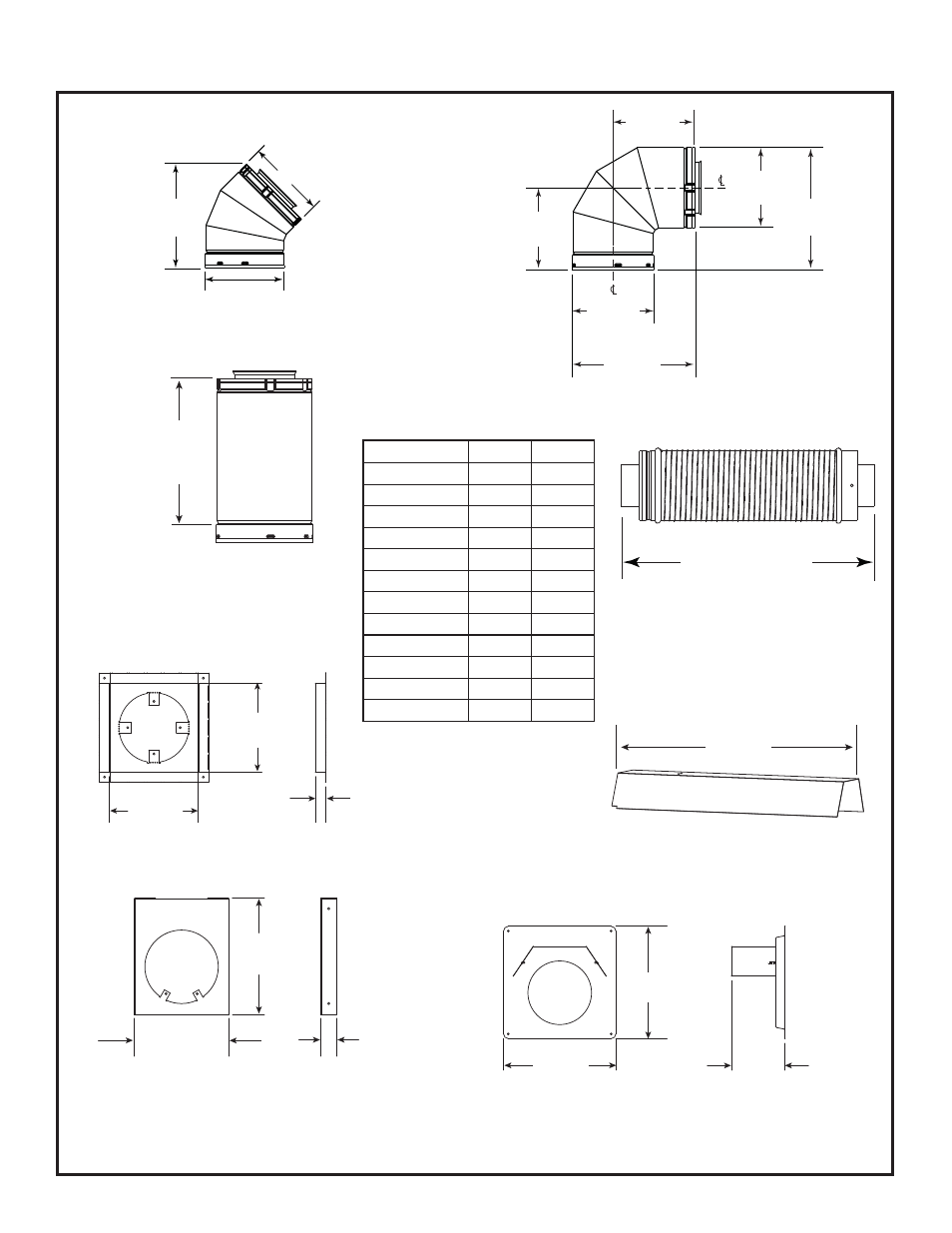

Figure 16.2 SLP Series Vent Components
26 in.
660 mm
DVP-HSM-B
Extended Heat Shield
Effective Height/Length
Pipe inches mm
SLP4 4 102
SLP6 6 152
SLP12 12 305
SLP24 24 610
SLP36 36 914
SLP48 48 1219
SLP6A 2 - 6 51 - 152
SLP12A 2 - 12 51 - 305
SLP-FLEX-2 24 610
SLP-FLEX-3 36 914
SLP-FLEX-5 60 1524
SLP-FLEX-10 120 3048
SLP-FLEX-PIPE
EFFECTIVE HEIGHT/
LENGTH
SLP-HVS
Horizontal Pipe
Support
10-7/8 in.
276 mm
8-7/8 in.
225 mm 1-1/2 in.
38 mm
SLP-FS
Ceiling Firestop
8-11/16 in.
220 mm
8-11/16 in.
220 mm
1-1/2 in.
38 mm
SLP-WS
Wall Shield Firestop
12 in.
305 mm
12 in.
305 mm
5-1/2 in.
146 mm
