Heat & Glo • SLR-C • 2292-900 Rev. H • 2/13
58

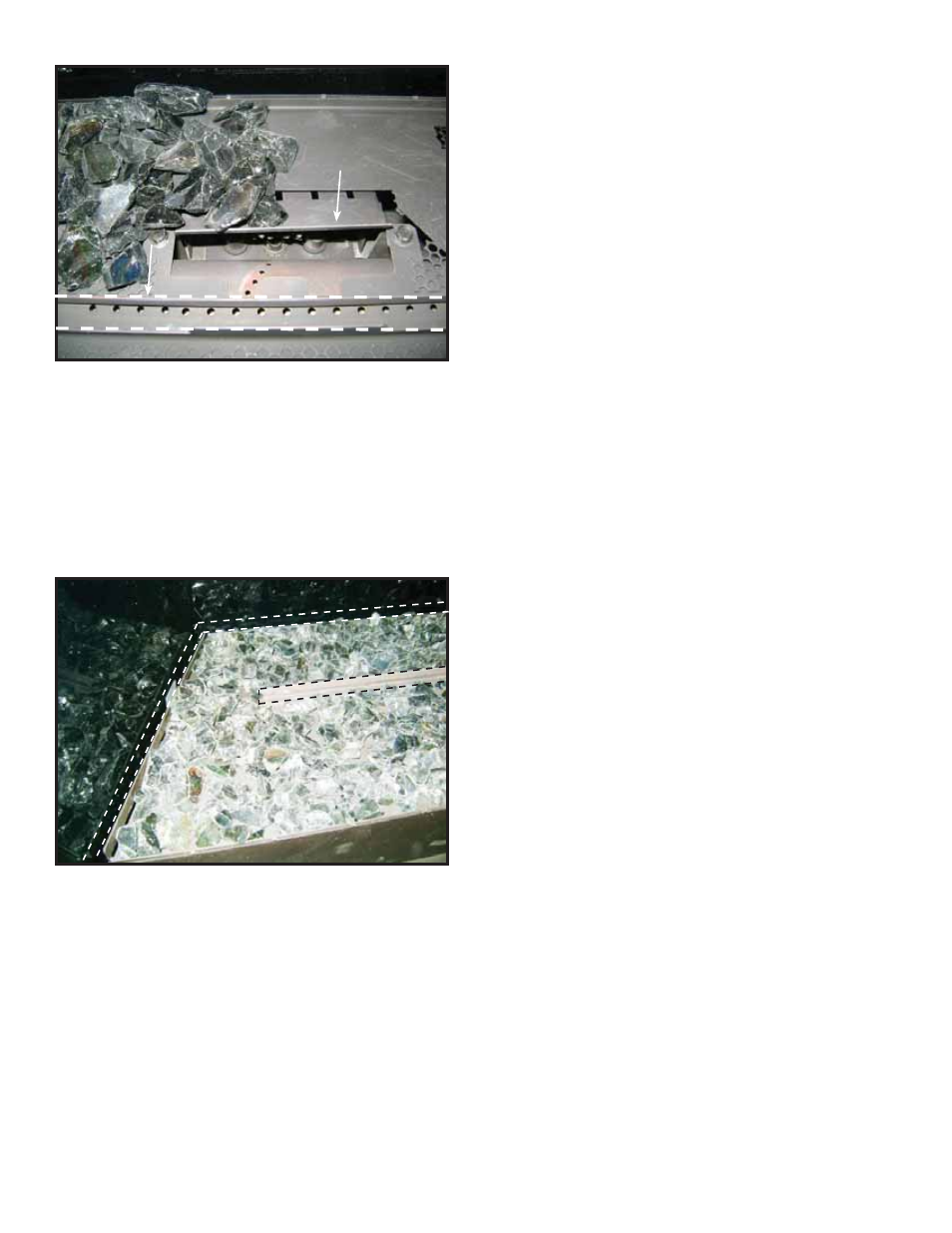

Figure 14.3. Placing Glass Rock Media on Pilot Shield
PILOT SHIELD
Figure 14.4. Maintaining Media Tray Air Spaces.
NO GLASS ROCK MEDIA BETWEEN DASHED LINES.
WARNING! Risk of Fire! DO NOT place glass rock me-
dia directly in front of the pilot assembly or between the
burner tracks over the burner ports.
NOTICE: Care should be taken to avoid placing glass
rock media between the left, right and back edges of the
media tray and the fi rebox. Blocking this gap may cause
an undesirable fl ame appearance. See Figure 14.4.
BURNER
TRACKS
