B. Vent Components Diagrams (continued)

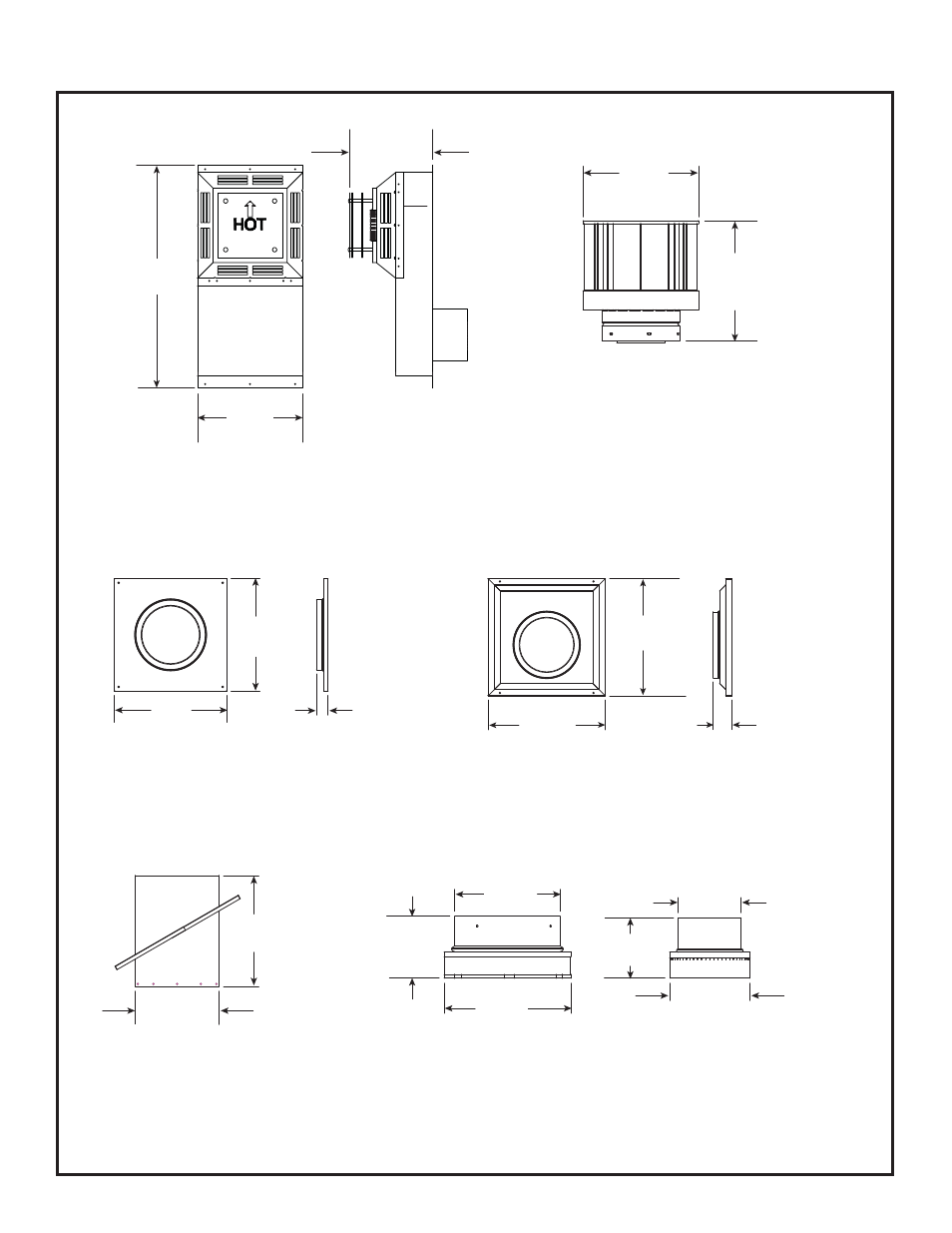

Figure 16.3 SLP Series Vent Components
SLK-SNKD
Snorkel
Termination Cap
13-1/2 in.
343 mm
28-1/2 in.
724 mm
10-11/16 in.
271mm
10-9/16 in.
269 mm
14 in.
356 mm
SLP-CCS-BK
Cathedral Ceiling
Support Box-Black
12-1/2 in.
318 mm
12 in.
305 mm
SLP-TVHW
Vertical
Termination Cap
13 in.
330 mm
13 in.
330 mm
1-5/16 in.
34 mm
SLP-DCF-BK
Ceiling Firestop
Black
SLP-WT-BK
Wall Thimble-Black
14-7/16 in.
367 mm
14-7/16 in.
367 mm
2-5/16 in.
59 mm
SL-2DVP
Adapter
3-15/16 in.
(101 mm)
6-11/16 in.
(169 mm)
8 in.
(203 mm)
3-15/16 in.
(101 mm)
3-13/16 in.
(97 mm)
5-1/16 in.
(128 mm)
