HP Laptop Docking Station User Manual
Page 45

Removal and Replacement Procedures
Maintenance and Service Guide
5–5
To install the cable lock:
1. Loop the cable around a stationary object.
2. Turn the docking station upside down, and then remove the
three PM2.5x5 screws from the cable lock bezel 1.
3. Remove the bezel from the docking station 2, and
then remove the bezel blank from the cable lock bezel 3.

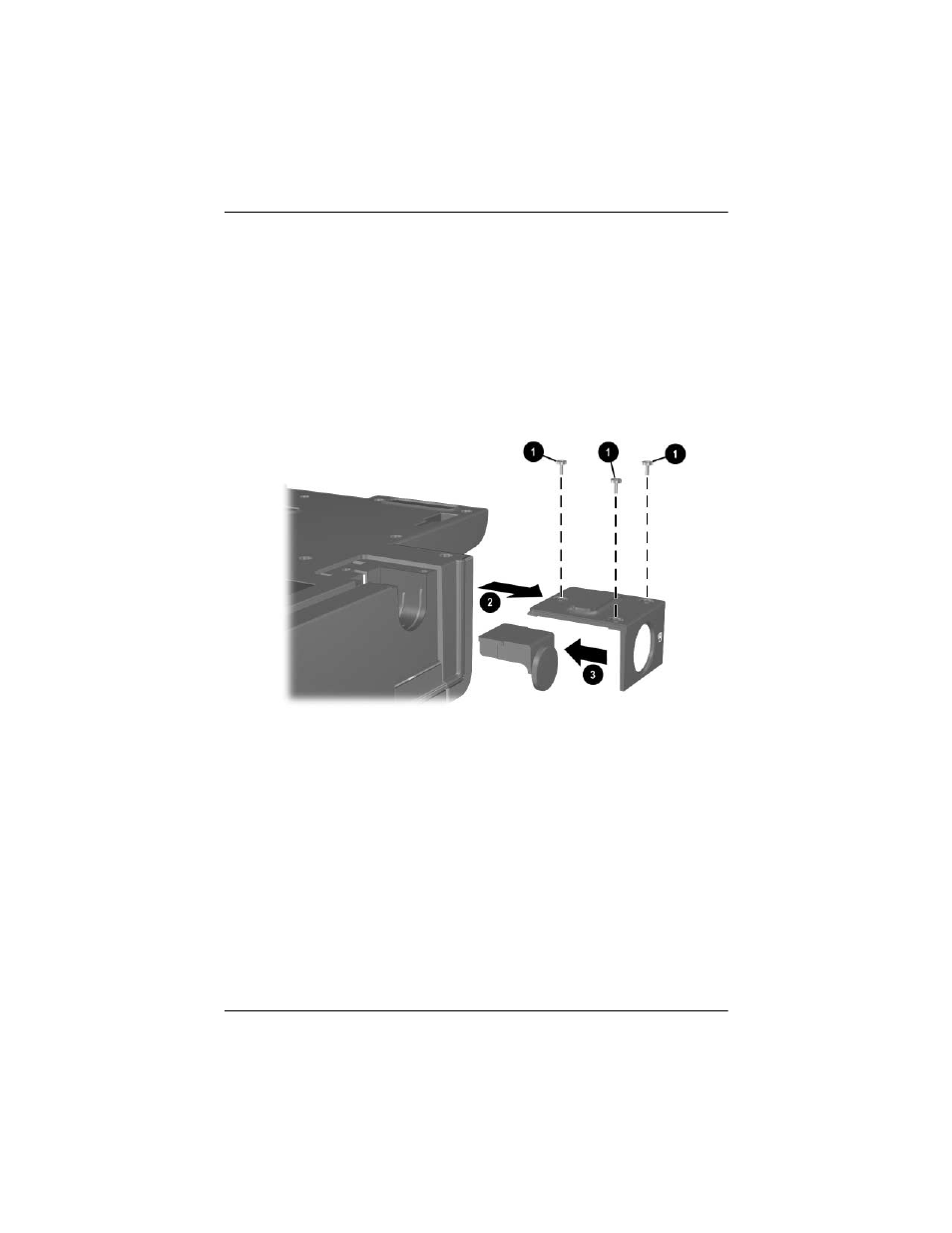

Removing the Cable Lock Bezel and Bezel Blank
