Set Up and Calibration Procedures
Relays Set Up Group

HercuLine™ 2000 Series Actuator - Installation, Operation and Maintenance Manual

Revision 7

7/08

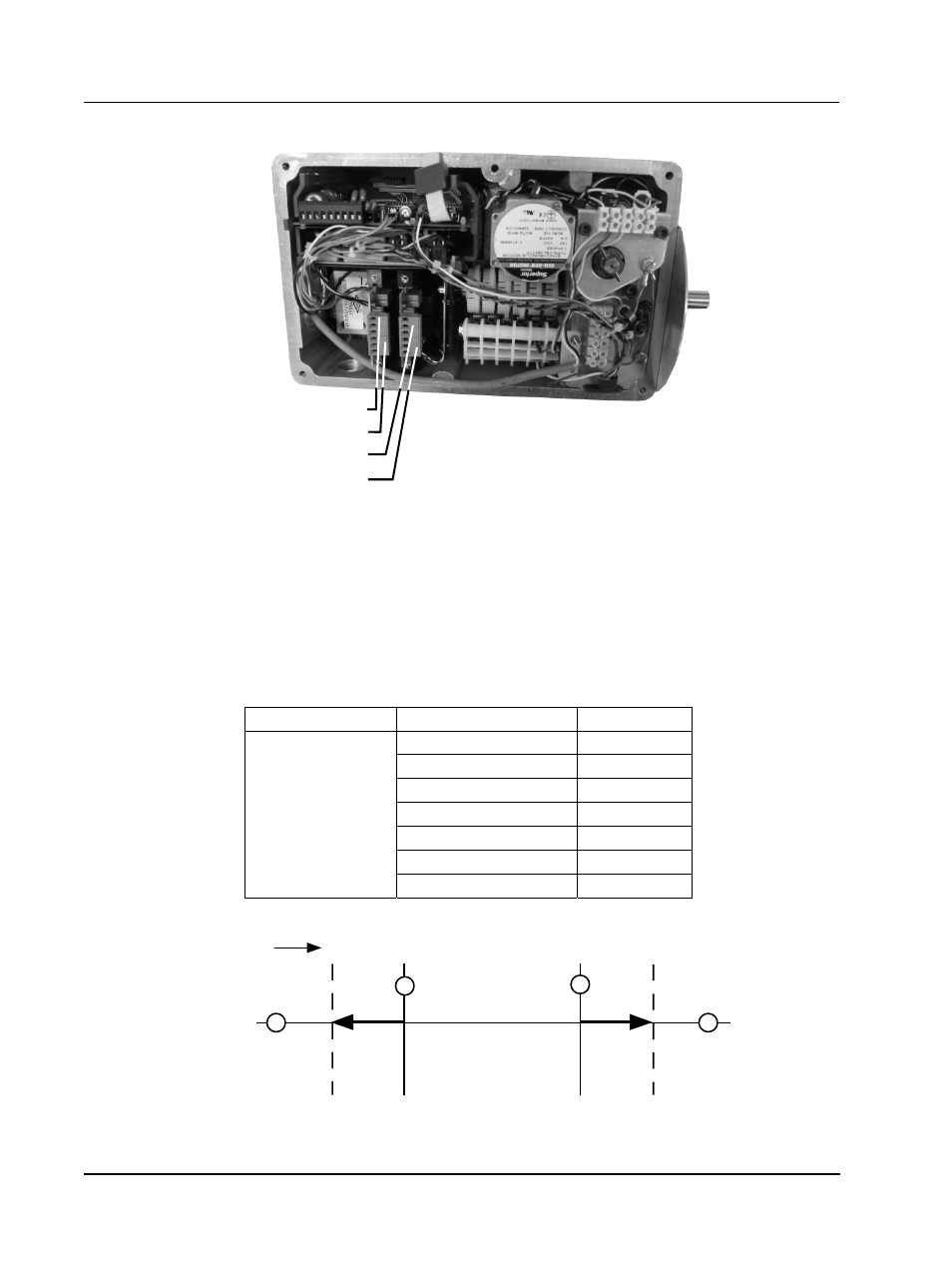

Relay connector #1

Relay connector #2

Relay connector #3

Relay connector #4

Figure 22 Relay connectors

Relay Examples

Relay Type - Position Range

Selecting PosR relay type, you can cause the relay to energize when the actuator motor travels below 20%
of range and above 80% of range. Note in the example below that Relay 1 is set up to provide two trip
points. The first trip point (R11VAL) causes the relay to energize when the motor travels above 80%, the
second trip point (R12VAL) is set so the relay energizes when the motor travels below 20%.

Set Up Group

Parameter

Value

SET RELAY1

RTYP11

PosR

R11VAL

80.0

R11HL

RTYP12

PosR

R12VAL

20.0

R12HL

RLY1HY

0.0

The figure below shows the resulting action.

100%

Closed

20%

80%

RELAY 1

Normally Open

Closed

Open

Motor
Position
