Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. J • 12/09 34
Log Set Assembly: LOGS-550-E, 750-E, 950-E
Model: SL-550TR-E, 750TR-E, 950TR-E,
SL-550TV-E, SL-750TV-E, SL-950TV-E

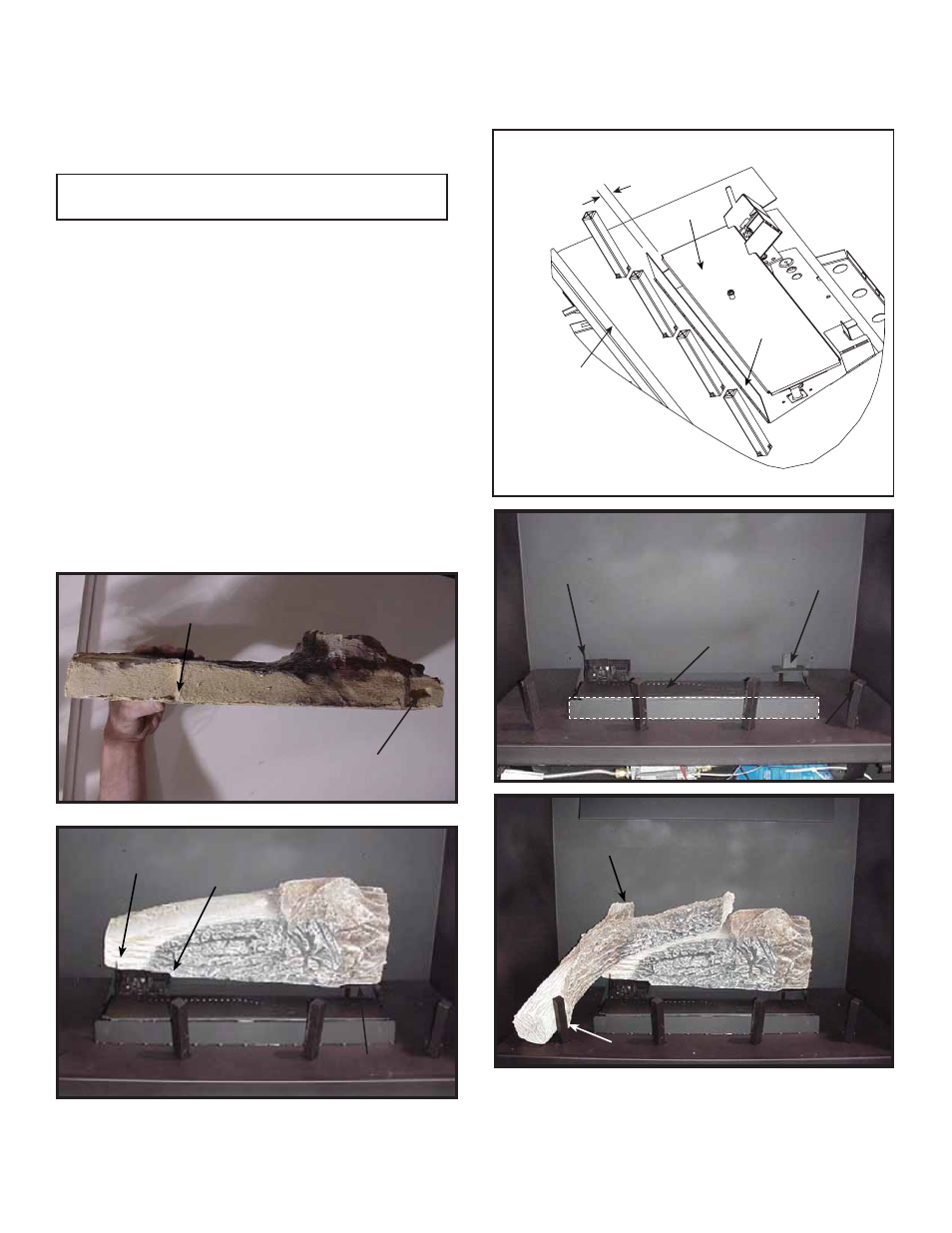

F. Install the Log Assembly
If the gas logs have been factory installed they should not
need to be positioned. If the logs have been packaged
separately, refer to the following instructions.
Carefully remove the logs from the packaging.
CAUTION: Logs are fragile!
Log #1 : Locate the slot on the bottom right side of log 1.
Mate the slot with the right rear log tab. Pull the left end of
log #1 forward until it touches the left rear log tab.
Left rear log tab Left rear log tab
Lava Rock retainer Lava Rock retainer
Grate tine (4) Grate tine (4)
Log #2 : Mate the left grate tine with the notch located on
the left end of log #2. The right end of log #2 should rest
on log #1 as shown. Be sure that the top of log # 2 touches
the back of the fi rebox.
1 1
Mate slot with tab Mate slot with tab
Left rear log tab Left rear log tab
2 2
Mate notch with grate tine Mate notch with grate tine
Figure 3 Figure 3
Figure 4 Figure 4
Figure 5 Figure 5
Right rear log tab Right rear log tab
Shoulder screw Shoulder screw
Log # 2 should touch fi rebox Log # 2 should touch fi rebox
1 1
Slot Slot
Figure 2 Figure 2
2118-935D 6/07
Note: Figure 1 illustrates the recommended gap between the
burner and the lava rock retainer.
3/8 in.
Burner
Lava Rock
retainer
No lava rock
may be placed
past this edge.
Figure 1
Indentation Indentation
Indentation Indentation
