Heat & Glo • SL-550 / 750 / 950TV-IPI-E • 2119-900 Rev. J • 12/09 19
5 5
Framing and Clearances
A. Selecting Appliance Location
When selecting a location for the appliance it is important to
consider the required clearances to walls (see Figure 5.1).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of traffi c and away from furniture and draperies.
NOTICE: Illustrations refl ect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.

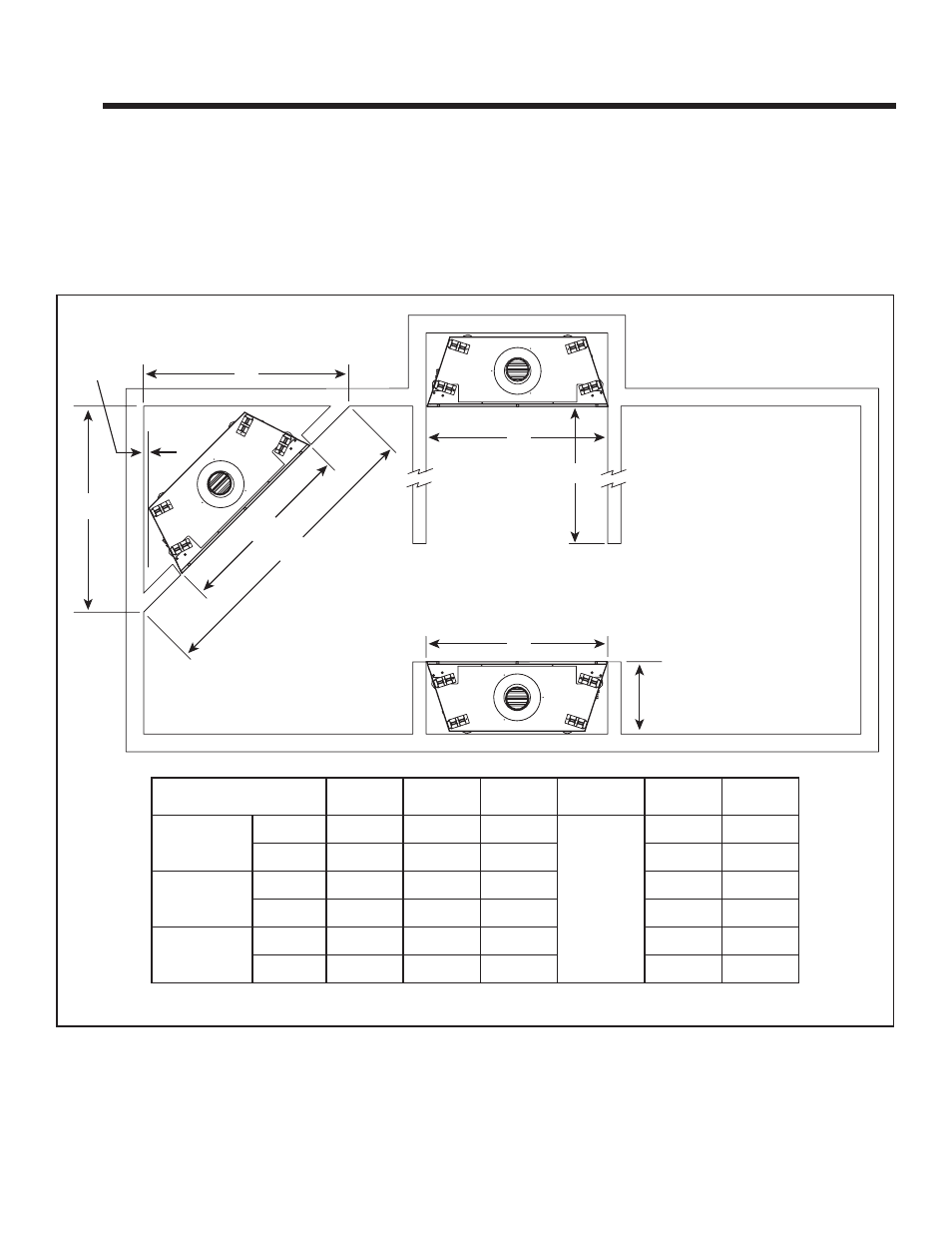

Figure 5.1 Appliance Locations
C
B
B
TOP VENT
TOP VENT
TOP VENT
ALCOVE
INSTALLATION
D
B
A
A
F
E
Model A B C D E
F
Minimum
SL-550TV-IPI-E
Inches 42 37 59-1/2
See Section
5.D for Alcove
Installation
16-1/4 1/2
Millimeters 1067 940 1511 413 13
SL-750TV-IPI-E
Inches 45-1/2 42 64-3/8 16-1/4 1/2
Millimeters 1156 1067 1635 413 13
SL-950TV-IPI-E
Inches 50-1/2 49 71-1/2 16-1/4 1/2
Millimeters 1283 1245 1816 413 13
