9 ©2009 Hunter Fan Co. 44827-01 20091015
figure 16.
figure 15.
figure 17.

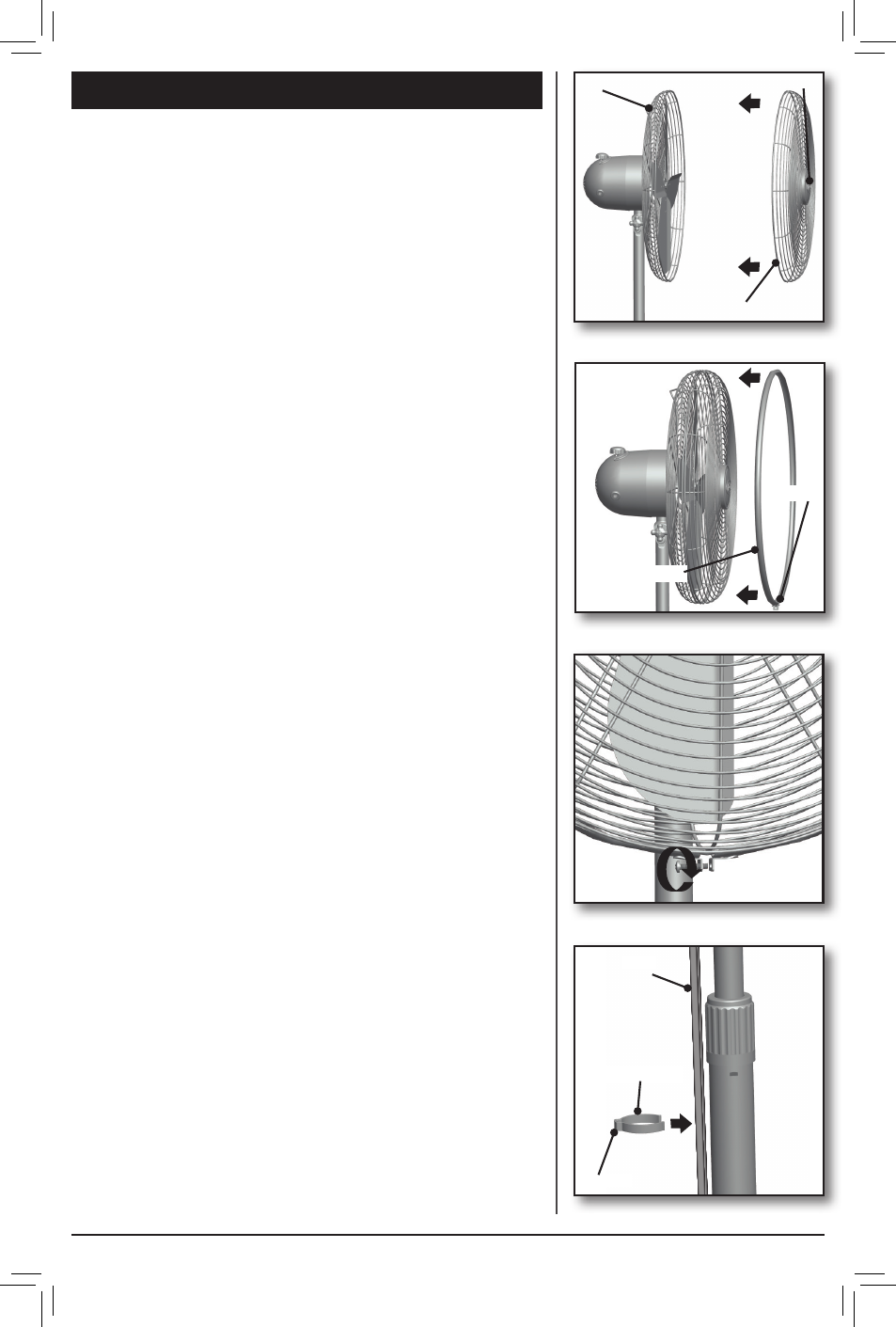

grIll assembly (ConT.)
1. Place the Front Grill(11) against the Back Grill(9) so
the Hunter logo faces right side up. Figure 15.
2. Seperate the Grill Ring by loosening the screw
holding it together.
3. Slide the Grill Ring over both Front(11) and Back(9)
Grills turning it so the screw that will secure it is on
the bottom. Figure 16.
4. Tighten the Screw to secure the Grill Ring over the
Front and Back Grills.
5. Straighten the Cord from the Motor along the
Telescoping Pole and Snap the Cord Clip over the
cord onto the Pole so the cord rests in the notch on
the Clip. Figure 18.
(11)Front Grill
Hunter Logo
(12) Grill Ring
Screw
(9) Back Grill
figure 18.
(13) Cord Clip
Cord
Notch
