8 ©2009 Hunter Fan Co. 44827-01 20091015
figure 11.
figure 12.
figure 13.
figure 14.

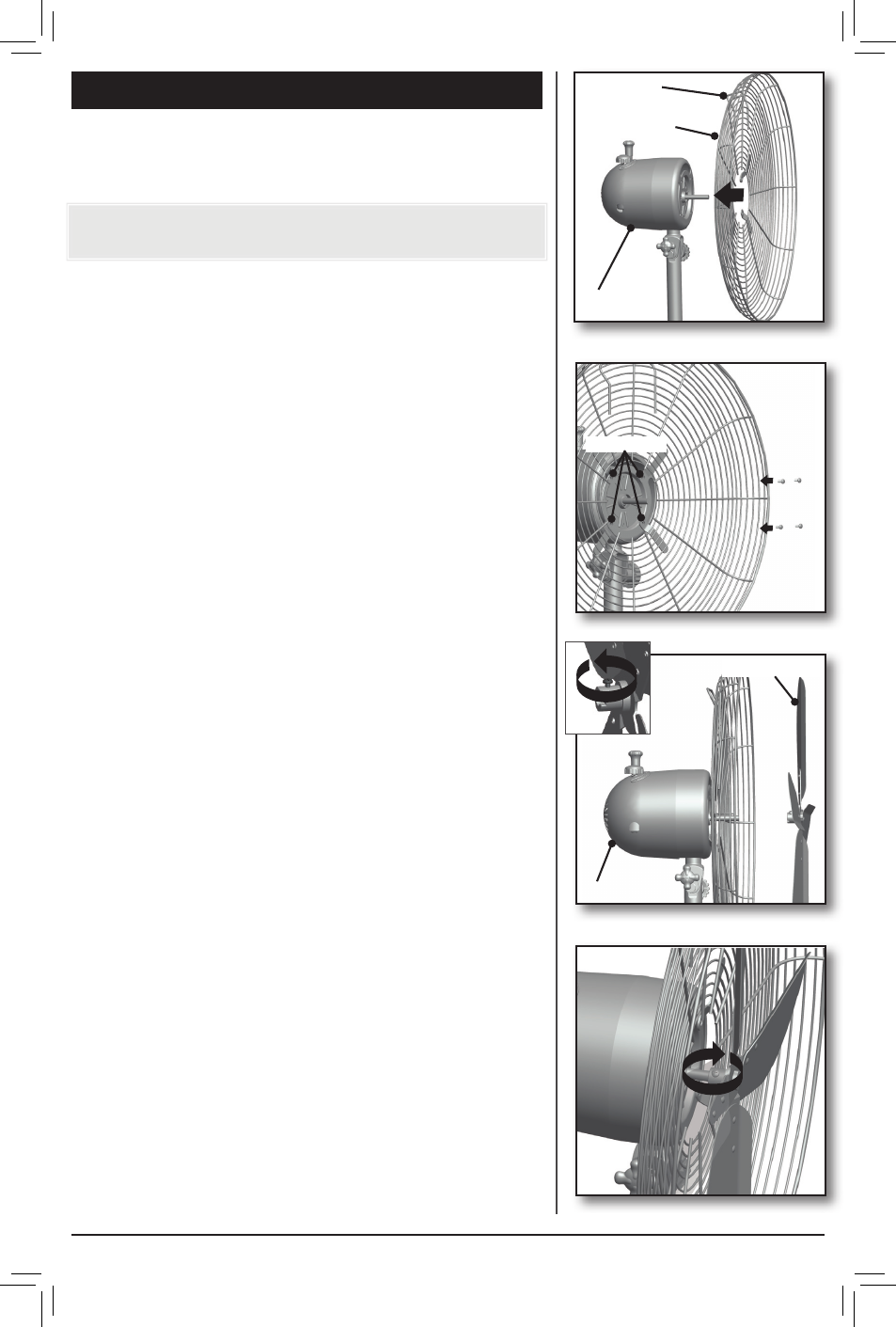

grIll assembly
13a.
1. Place the back grill against the motor housing(5),
Figure 11., and line up the 4 tabs on the back of the
grill(9) to the 4 screws holes on the front of the motor.
Caution: Make sure the Handle on the back of the Back
Grill is facing up.
2. Attach the Back Grill(9) to the Motor(5) using the 4
Grill Mount Screws. Figure 12.
3. Loosen the Screw on the back of the Fan Blade(10),
13a., and slide the Fan Blade onto the post on the
Motor(5). Figure 13.
4. Tighten the Screw on the Blade(10( to secure it to the
Motor(5). Figure 14.
(5) Motor
(9) Back Grill
Screw Holes
(5) Motor
(10) Fan Blade
Handle
