Unpacking, Base assembly, Figure 3. figure 4. figure 5 – Hunter Fan 20091015 User Manual

Page 6: Figure 6

44827-01 20091015

base assembly

figure 3.

figure 4.

figure 5.

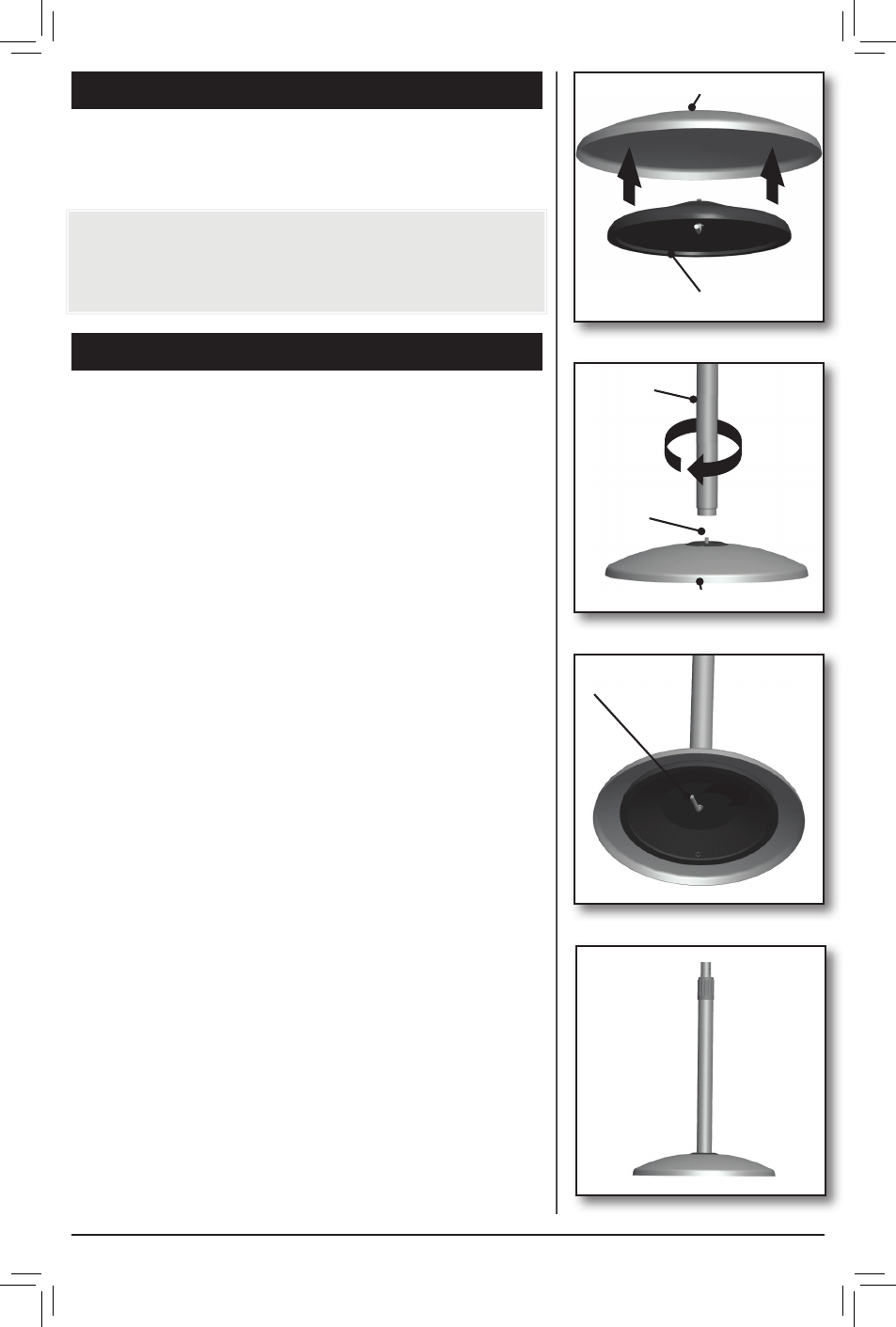

1. Insert the Weight(1) into the Base Cover(2). Figure 3.

2. Insert the base of the Telescoping Pole(3) into the top

of the Base Cover(2) and attach to the Base Weight(1)

by turning clockwise on the Screw(4) in the center of

the Base Weight(1). Figure 4.

3. Turn the Base on it’s side and turn the handle of the

Screw(4) on the bottom of the Weight until secure.

Figure 3.

4. Tip the Base back upright. Figure 5.

figure 6.

unpaCkIng

As you unpack the fan, save the carton and packing

materials in case you want to move or ship the unit in the

future. Carefully remove all items from the box.

NOTE: It is best to have someone hold the box while

you lift the fan and the protective packaging out of the

carton. Make sure all shipping materials are removed

from fan before operating.

(1) Base Weight

(2) Base Cover

(3) Telescope

Pole

(4) Screw
