figure 9.

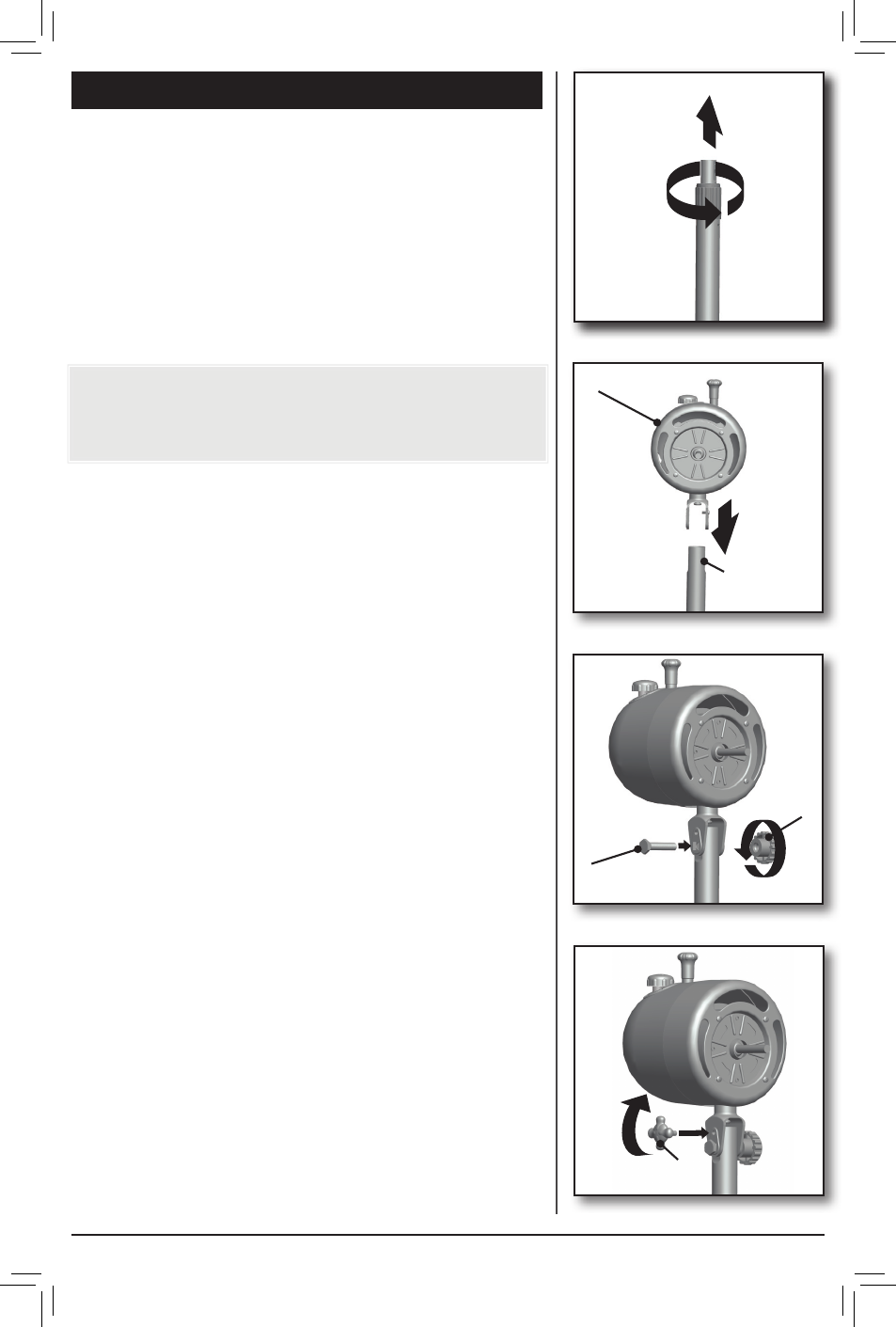

moTor assembly

1. Grasp the Telescope Pole firmly and twist the

Adjustment Knob Counter Clockwise to loosen.

Figure 7.

2. Raise the Inner Pole and tighten the Adjustment Knob

by twisting Clockwise until secure.

3. Set the Motor(5) on top of the Pole(3), Figure 8., and

Secure using the Motor Bolt(6) and Knob(7). Figure

Note: The Motor Bolt has a square cut on the inside of the

head, ensure this fits securely into the square hole in the

Pole. Do not overtighten the Motor Knob, as this could

make it difficult to tilt the motor later.

After securing the motor(5), Screw in the Tilt Adjustment

Knob(8) securely. Figure 10. This Knob allows you to

adjust the fans angle.

figure 7.

figure 8.

figure 10.

(5) Motor

(3) Telescope

Pole

(6) Motor

Bolt

(7) Motor

Knob

(8) Tilt Adjustment

Knob
