Hoshizaki DCM-750BWH(-OS) - Manual (Page 21)

21
b) Connection to a Closed Loop System
• Condenser water supply inlet is 1/2" female pipe thread (FPT). A minimum of 3/8" OD
copper tubing is recommended for the condenser water supply line.
• Condenser return outlet is 3/8" FPT. A minimum of 3/8" OD hard pipe is recommended for
the condenser return line.
• Shut-off valves and drain valves should be installed at both the condenser water supply
inlet and condenser return outlet.
• The water supply to the condenser should not drop below 4 GPM.
• The pressure differential between the condenser water supply inlet and condenser return
outlet must be no less than 10 PSIG.
• When using a glycol blend, the solution mixture should be less than 30% glycol.
• In order to maintain the proper high side pressure, the condenser water supply inlet
temperature should not drop below 45°F (7°C) and the condenser return outlet
temperature must be in the 104°F to 115°F (40°C to 46°C) range. Once the icemaker
installation is complete, confirm the condenser return outlet temperature 5 minutes
after a freeze cycle starts. If the outlet temperature is not in the proper range, adjust the
water-regulating valve to bring it into range.
Condenser Return
Line Shut-Off Valve
Condenser Return
Line Drain Valve
Condenser
Return Outlet
3/8" FPT
Icemaker Water Supply
Line Shut-Off Valve
Condenser Water Supply
Line Shut-Off Valve
Condenser Water Supply
Line Drain Valve
Condenser Water
Supply Inlet
1/2" FPT
Drip Tray
Drain Outlet
3/4" FPT

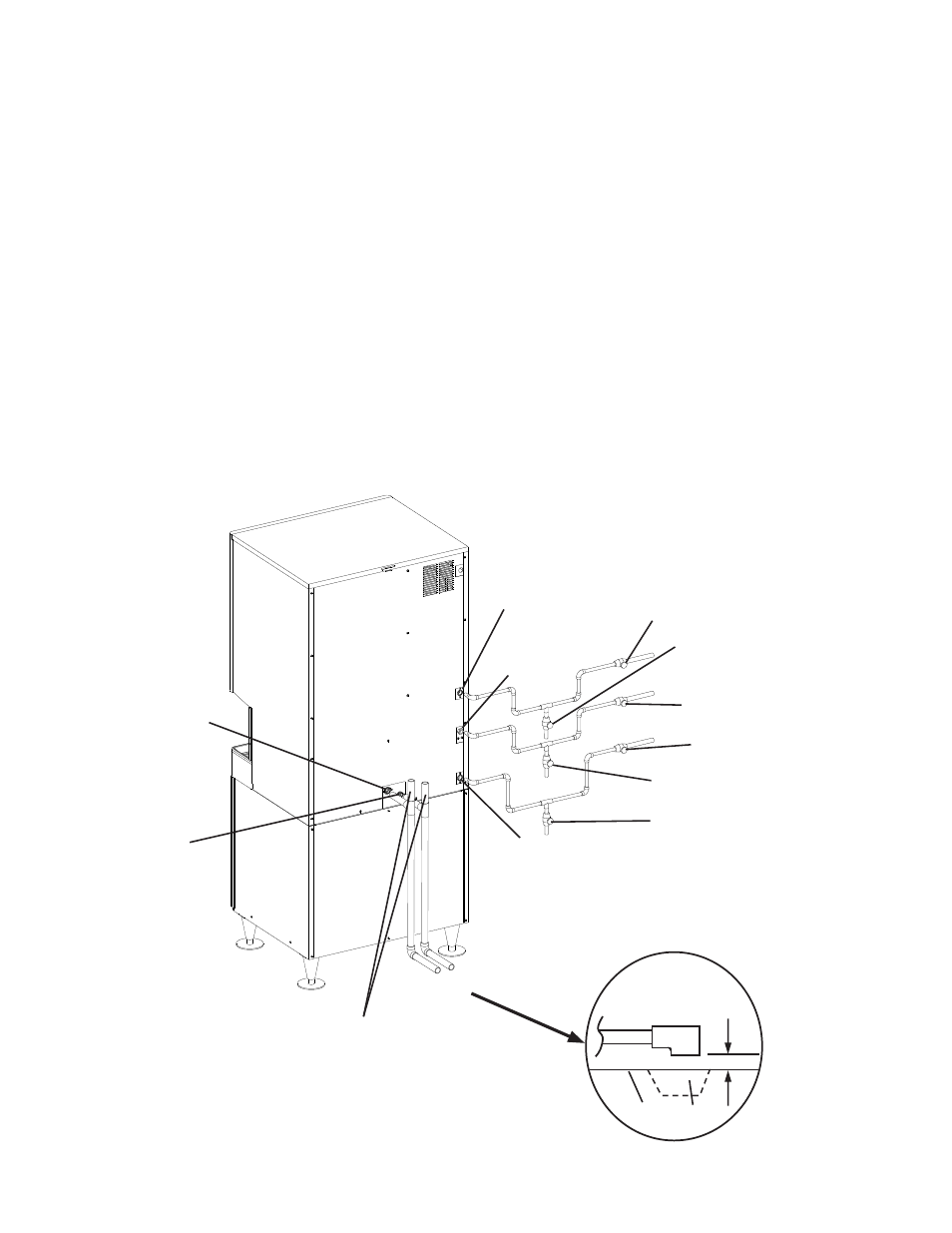

Fig. 6 DCM-750BWH(-OS)
Connection to a Closed Loop System
Separate piping to approved drain.
Leave a two-inch (5 cm) vertical air
gap between the end of each pipe
and the drain.
Two-inch
(5 cm) air
gap
Floor Drain
Icemaker
Stand
Icemaker Water
Supply Inlet
1/2" FPT
Icemaker Water Supply
Line Drain Valve
Storage Bin
Drain Outlet
3/4" FPT
Vent
Tube
