Condenser Water
Supply Inlet
1/2" FPT
Condenser
Drain Outlet
3/8" FPT
Icemaker Water
Supply Inlet
1/2" FPT
Drip Tray
Drain Outlet
3/4" FPT
2. Water-Cooled Condenser
a) Connection to an Open Drain System
• Condenser water supply inlet is 1/2" female pipe thread (FPT). A minimum of 3/8" OD
copper tubing is recommended for the condenser water supply line.
• A condenser water supply line shut-off valve and drain valve should be installed.
• Condenser drain outlet is 3/8" FPT. A minimum of 3/8" OD hard pipe is recommended for
the condenser drain line.
• In some areas, a back flow preventer may be required in the condenser water supply line.

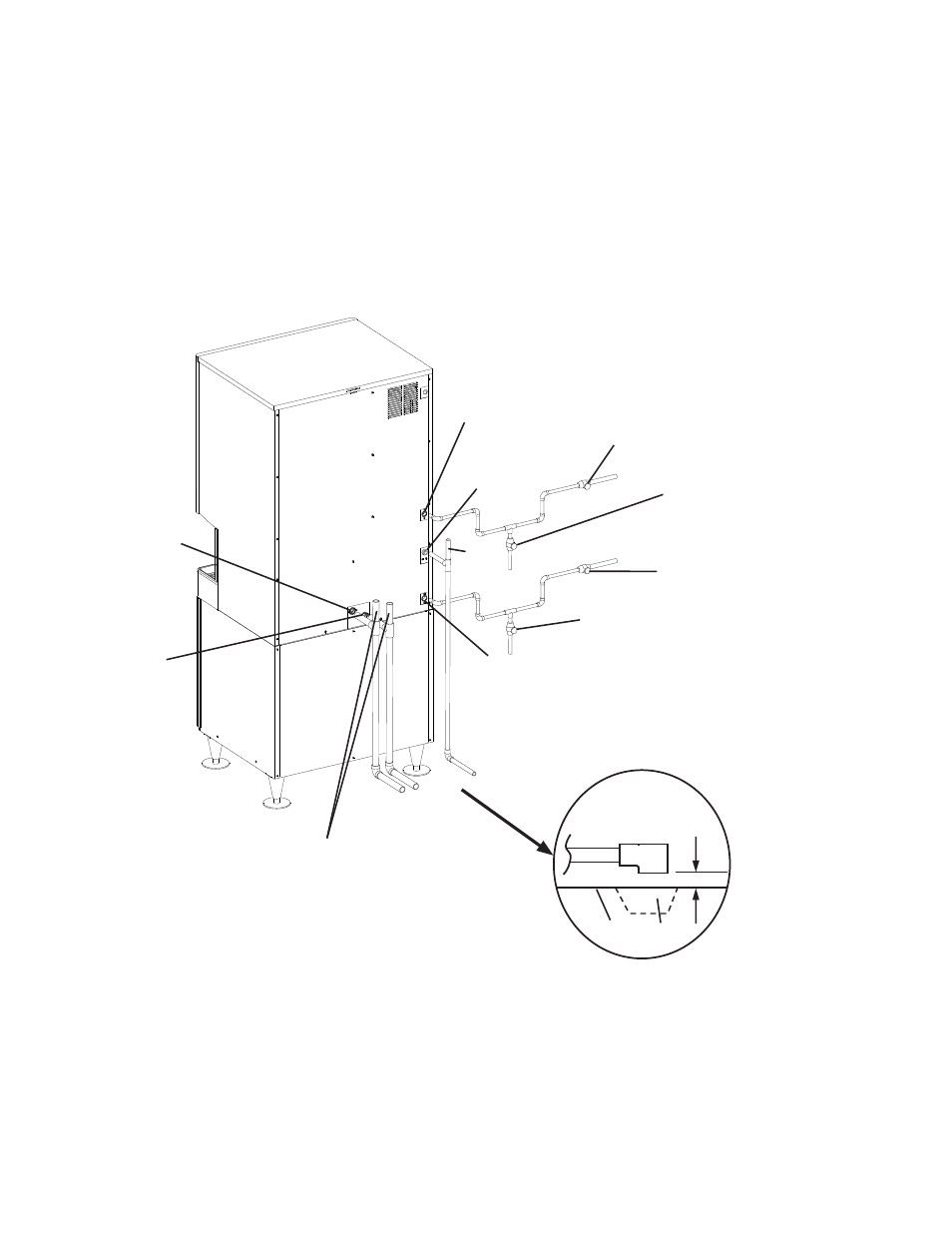

Fig. 5 DCM-750BWH(-OS)
Connection to an Open Drain System
Separate piping to approved drain.
Leave a two-inch (5 cm) vertical air
gap between the end of each pipe
and the drain.
Two-inch
(5 cm) air
gap
Floor Drain
Icemaker
Stand
Storage Bin
Drain Outlet
3/4" FPT
Icemaker Water Supply
Line Shut-Off Valve
Icemaker Water Supply
Line Drain Valve
Condenser Water Supply
Line Shut-Off Valve
Condenser Water
Supply Line Drain Valve
Vent
Tube
Vent
Tube
