19
1. Icemaker
• Icemaker water supply inlet is 1/2" female pipe thread (FPT). A minimum of 3/8" OD
copper tubing is recommended for the icemaker water supply line.
• An icemaker water supply line shut-off valve and drain valve should be installed.
• Storage bin and drip tray drain outlets are 3/4" FPT. A minimum of 3/4" OD hard pipe is
recommended for the storage bin and drip tray drain lines.
Storage Bin
Drain Outlet
3/4" FPT
Drip Tray
Drain Outlet
3/4" FPT

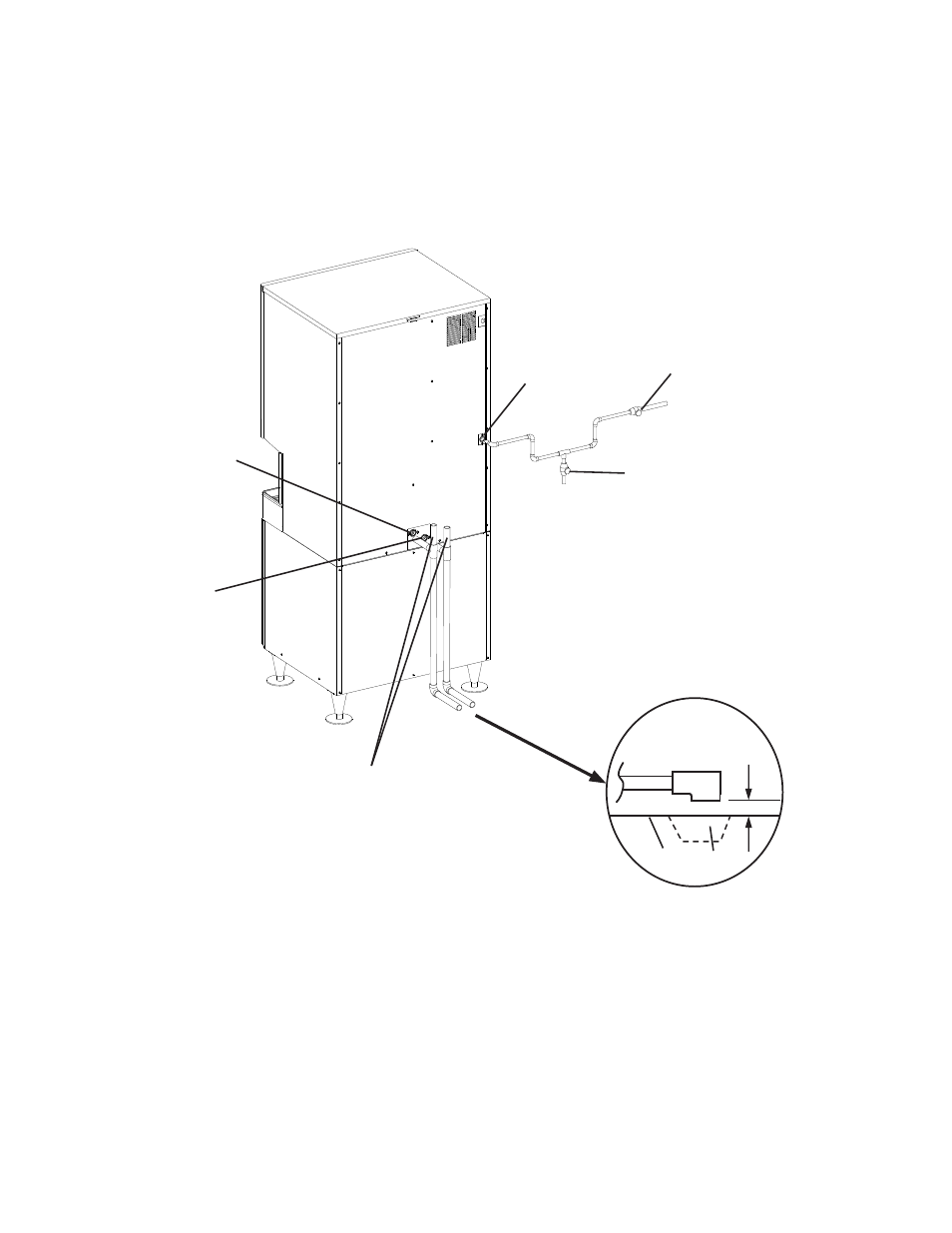

Fig. 4 DCM-750BAH(-OS)
Separate piping to approved drain.
Leave a two-inch (5 cm) vertical air
gap between the end of each pipe
and the drain.
Two-inch
(5 cm) air
gap
Floor Drain
Icemaker
Stand
Icemaker Water Supply
Line Shut-Off Valve
Icemaker Water
Supply Inlet
1/2" FPT
Icemaker Water Supply
Line Drain Valve
Vent
Tube
