B. How to Remove Panels

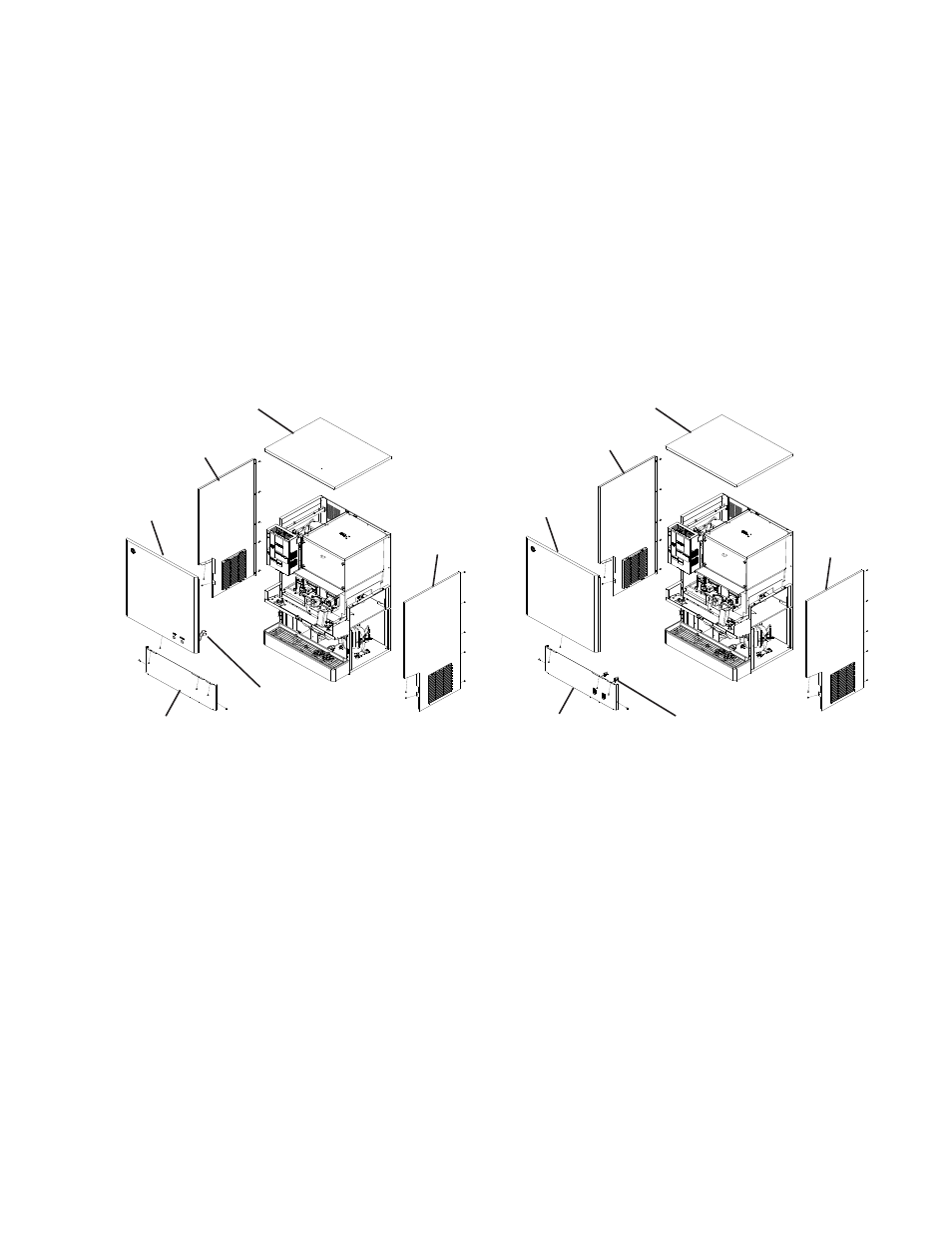

See Fig. 1 or Fig. 2
• Front Panel: Remove the screw. Lift up and towards you. Disconnect the connectors on
push-button models.
• Top Panel: Lift up at front slightly, push rearward and lift off.
• Apron Panel: Remove the screws and pull towards you. Disconnect the connectors on
optical-sensor models.
• Side Panel: Remove the screws and pull towards you.
Fig. 1
DCM-750B_H
(push-button models)
DCM-750B_H-OS
(optical-sensor models)
Fig. 2
Top Panel
Side Panel
Side Panel
Front Panel
Apron Panel
Connectors
