02-02 15 12538 Rev D
CL36D AND CR36D INSTALLATION INSTRUCTIONS
F. INSTALLATION OF FIREPLACE
WARNING!
Before starting, do the following:
1. Wear gloves and safety glasses for protection.
2. Keep hand tools in good condition. Sharpen cutting edges and make sure tool handles are secure.
3. Always maintain the minimum air space required to the enclosure to prevent fire.
Important: To ensure proper fit of the glass doors,
check the fireplace opening for square. Measure
diagonal distances of the opening to make sure
they are equal. If they are not equal, continue to
shim the fireplace until those diagonals are equal.

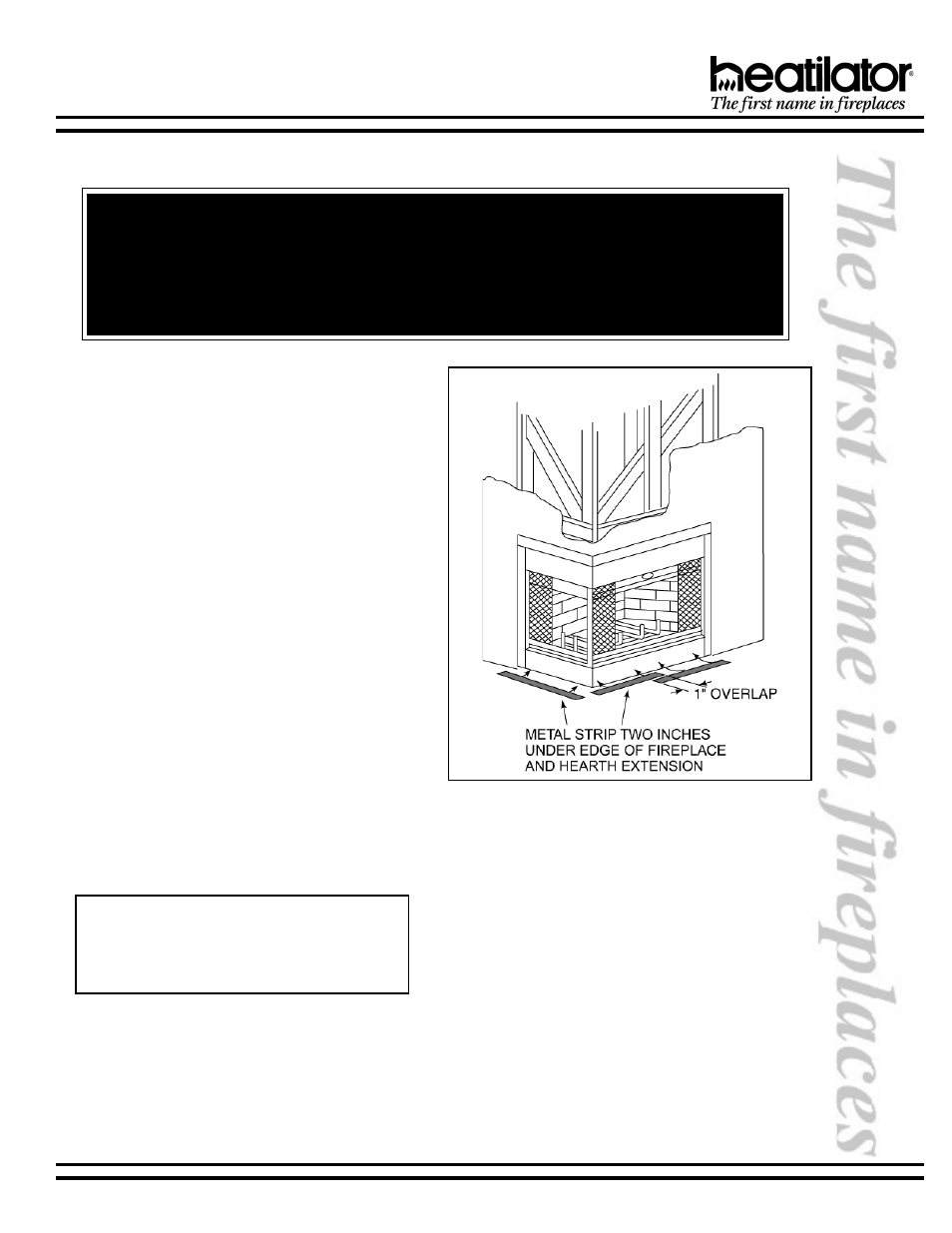

Figure 7 - Positioning the Metal Strips
1. Positioning the Fireplace
This fireplace may be placed on either a combustible
or noncombustible continuous flat surface. Follow the
instructions for framing on pages 10-12. Slide the
fireplace into position. Be sure to provide the
minimum ½” air clearance at the sides and back of
the fireplace assembly.
2. Placing the Protective Metal Hearth
Strips
Included with your fireplace you will find three metal
hearth strips measuring approximately 28” x 4”.
These strips are used to provide added protection
where the fireplace and the hearth extension meet.
Slide each metal strip 2” under the front edge of the
fireplace. The individual pieces must overlap each
other by 1” minimum in the middle of the fireplace to
provide continuous coverage of the floor. See Figure 7.
These metal strips should extend from the front and
sides of the fireplace opening by 2”.
3. Leveling the Fireplace
Level the fireplace side-to-side and front-to-back.
Shim with noncombustible material, such as sheet
metal, as necessary. Secure the fireplace (using the
nailing flanges located on either side of the fireplace)
to the vertical framing.
