12538 Rev D 12 02-02
CL36D AND CR36D INSTALLATION INSTRUCTIONS

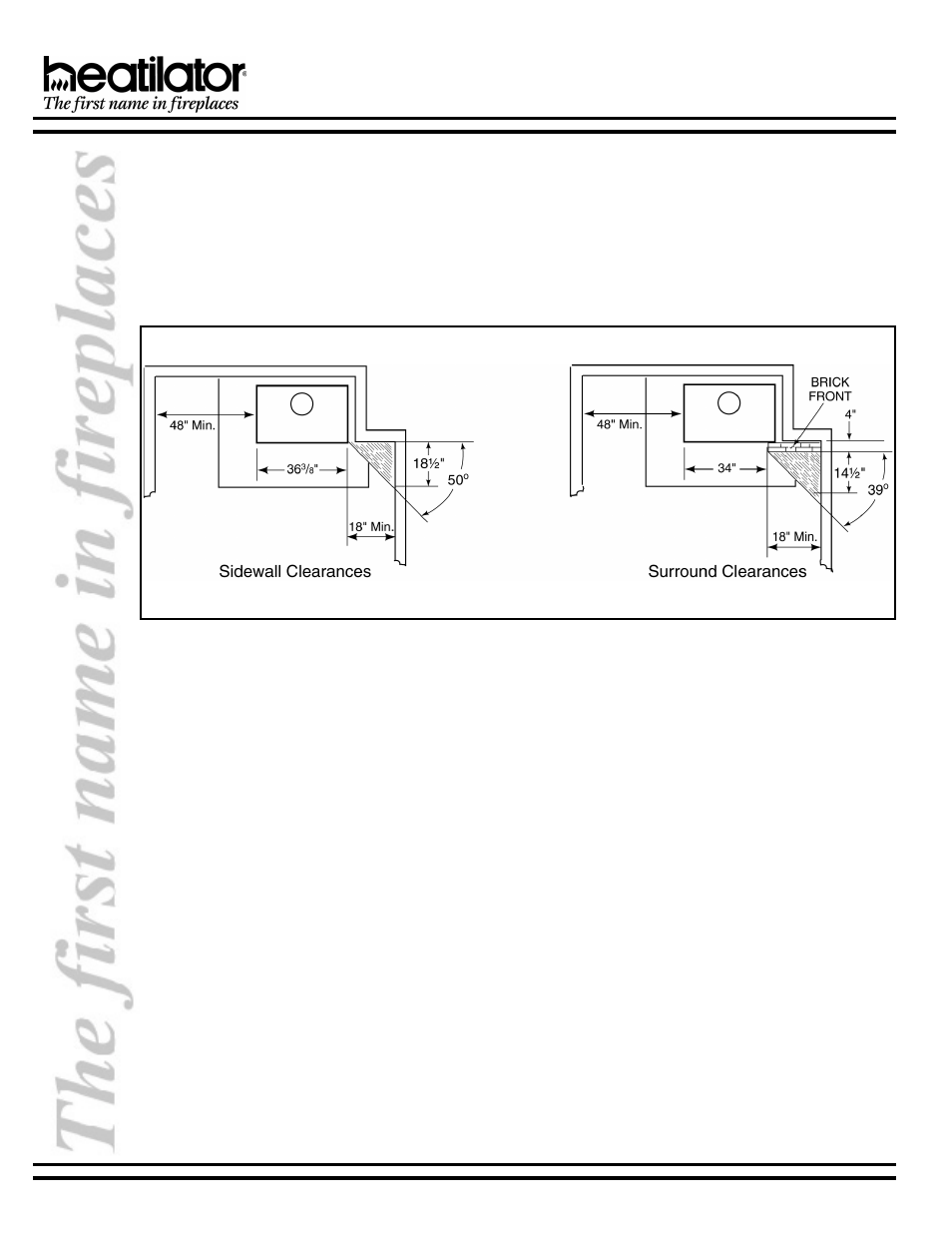

3. Sidewalls/Surrounds
Adjacent combustible side walls must be located a minimum of 18” from the fireplace opening. See Figure below. If
you are using a decorative surround constructed of combustible material, it must be located within the shaded area
defined below. Short stub walls are also acceptable if they are contained within the shaded area.
E. CHIMNEY REQUIREMENTS
When planning your fireplace location, the chimney construction and necessary clearances must be considered. The
fireplace system and chimney components have been tested to provide flexibility in construction. The following figures
are the minimum distances from the base of the fireplace.
1. Minimum overall straight height 14 ft.
2. Minimum height with offset/return 14.5 ft.
3. Maximum height 50 ft.
4. Maximum chimney length between an offset and return 20 ft.
5. Maximum distance between chimney stabilizers 35 ft.
6. Double offset/return minimum height 20 ft.
7. Maximum unsupported chimney length between the offset and return 6 ft.
8. Maximum straight unsupported chimney height above the fireplace 35 ft.
