UNPACKING INSTRUCTIONS
• Remove all parts and packing materials from
carton.
TOOLS REQUIRED
• 7 /
16
" Wrench or ratchet and socket
• ½" Wrench or ratchet and socket
• 7 /
8
" Socket
• Torque Wrench
• Phillips Head Screwdriver
• Hacksaw
• Pliers
• Drill and 3 /
8
" drill bit - 3 bag system only
NOTE: When right hand (R.H.) and left hand (L.H.) are mentioned in this manual, it means when
you are seated on the mower in the operator’s position.
CAUTION
BEFORE ASSEMBLING GRASS CATCHER TO MOWER:
• Set parking brake.
• Place motion control levers in “NEUTRAL” position.
• Turn ignition key “OFF” and remove key.
• Make sure the blades and all moving parts have completely stopped.
• Disconnect spark plug and place wire where it cannot come in contact with plug.

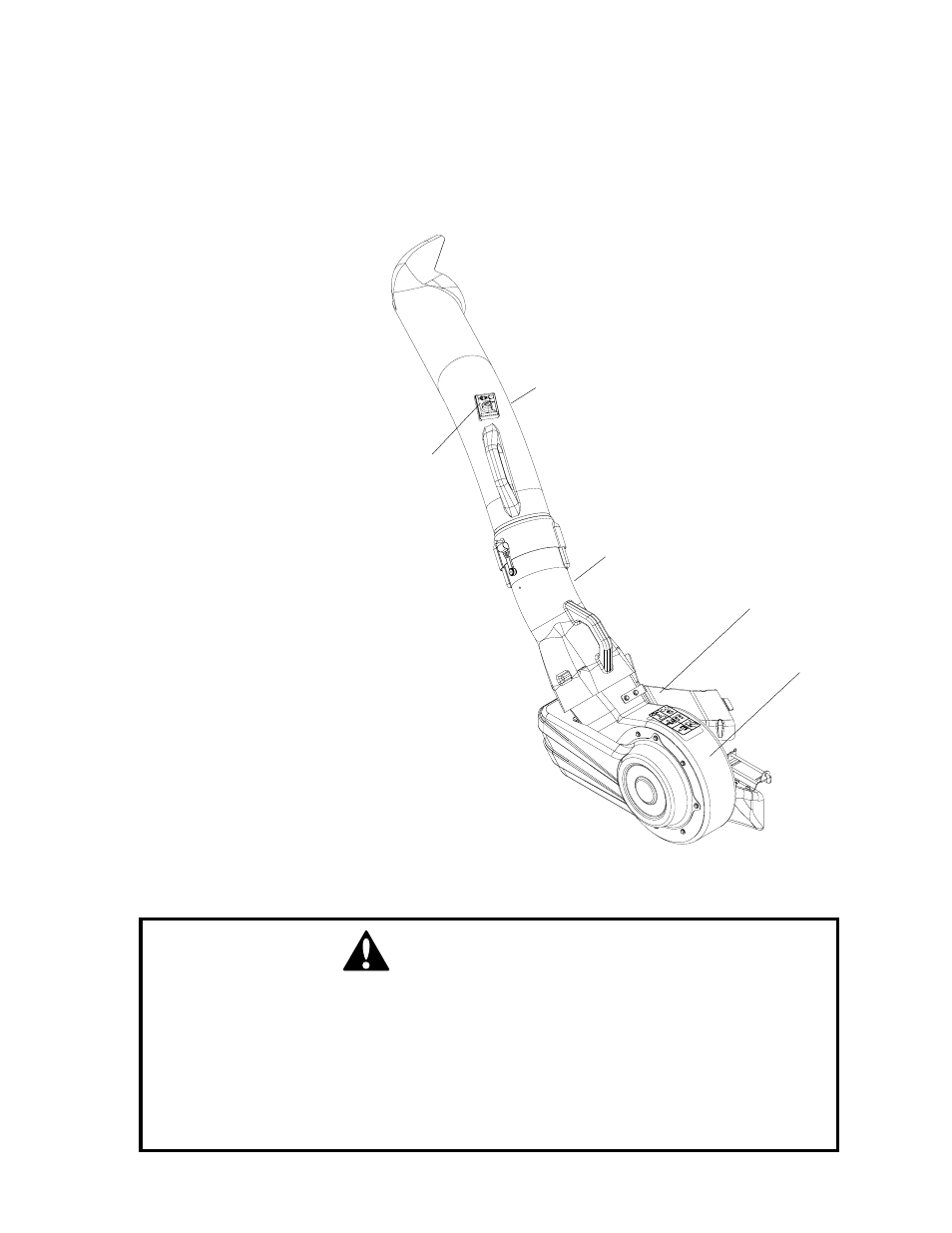

Upper Chute
Bag Dump Indicator
Blower Housing
Middle Chute
CONTAINER CONTENTS
• Blower Assembly • Drive Pulley
• Belt Shield • Belt
• Mounting Bracket • Bag of Hardware
• Weight (not included in
52" Kit 539 130328 or 61" Kit 539 130329)
Belt Cover
