Husqvarna O0803001 - Manual (Page 13)

14

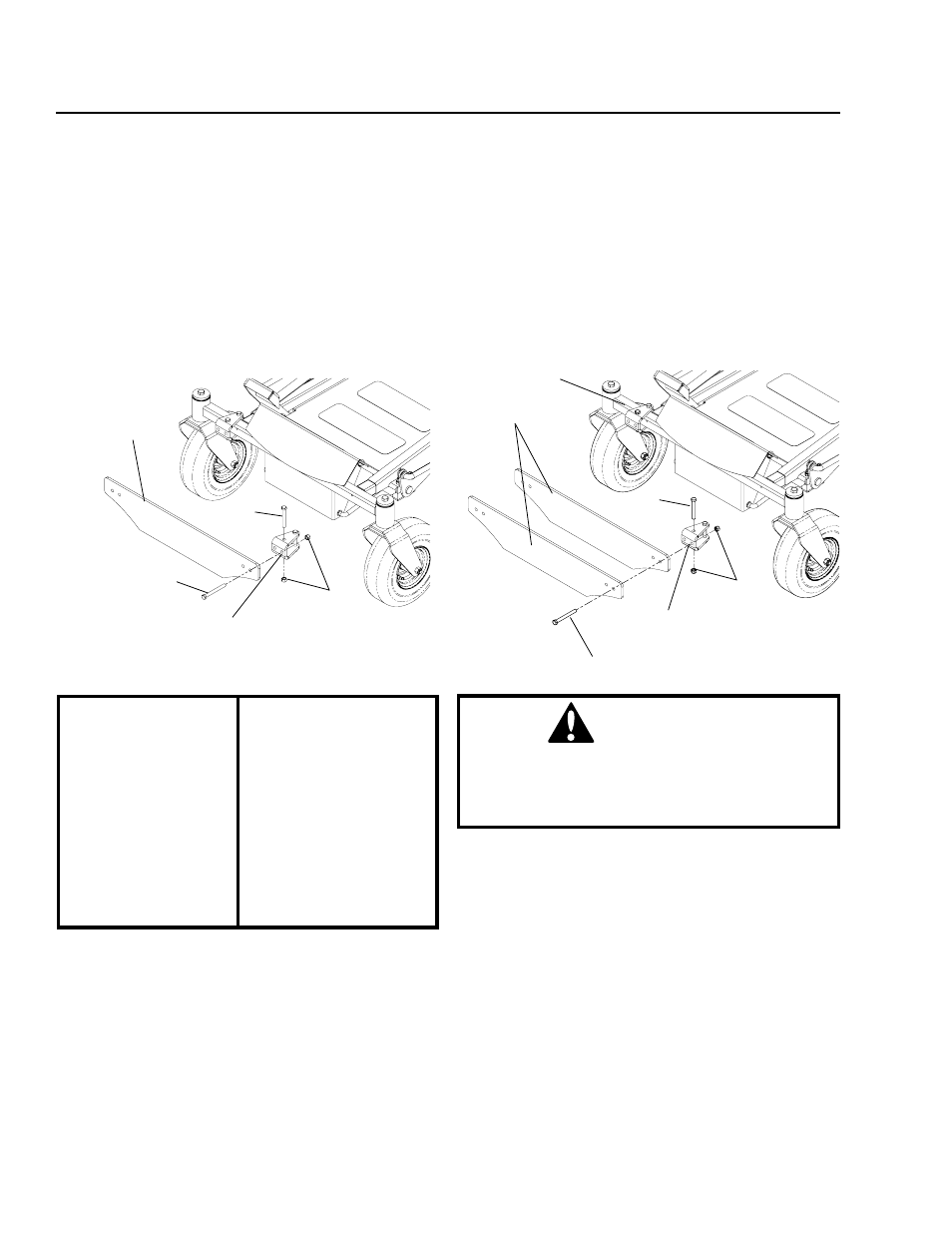

12 INSTALLING WEIGHT KITS
1¼ Bolt
Nut
CAUTION
DO NOT operate mower with grass
catcher, unless the front weights are
installed.
2¾ Bolt
Weight Bracket
Weight Plates
1. Bolt weight plates to weight brackets using four
(4) 1¾" bolts and four (4) nuts.
2. Slide both weight brackets over the front tube
on the frame. Be sure to position in the center of
the frame.
3. Secure with four (4) 2¾" bolts and four (4) nuts.
1¼ Bolt
Nut
2¾ Bolt
Weight Bracket
Weight Plate
1. Bolt one (1) weight plate and two (2) weight
brackets together using four (4) 1¼" bolts and
four (4) nuts.
2. Slide both weight brackets over the front tube
on the frame. Be sure to position in the center of
the frame.
3. Secure with four (4) 2¾" bolts and four (4) nuts.
Units with one weight plate
NOTE: The 61 deck does not require weights.
Front Tube
Units with two or more weight plates
Collection Number of
System Size Weights
42" 2 Bin 1
42" 3 Bin 3
48" 2 Bin 1
48" 3 Bin 3
52" 2 Bin 0
52" 3 Bin 2
61" 3 Bin 0
ASSEMBLY
