Assembly – Husqvarna O0803001 User Manual
Page 12
13
11

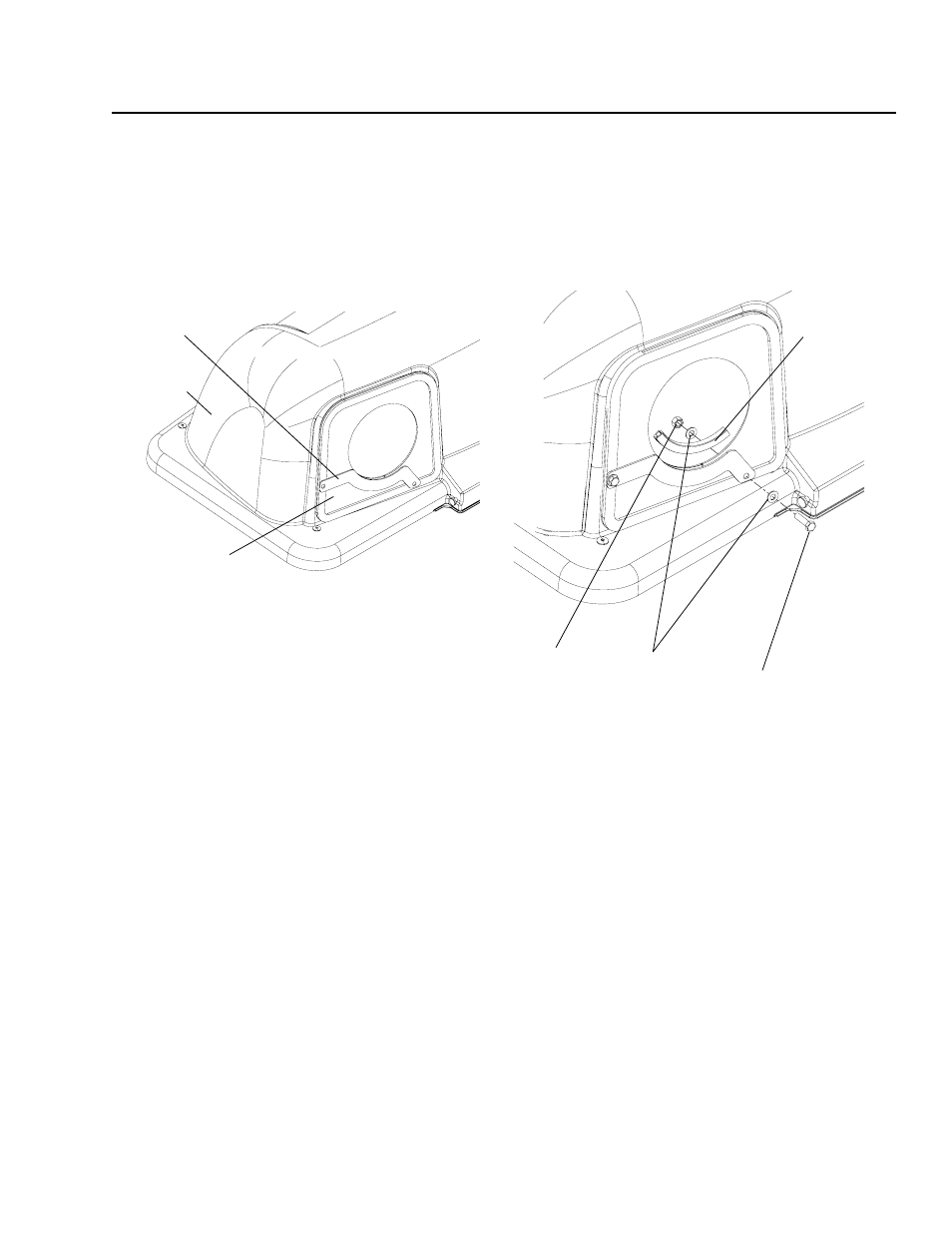

INSTALLING CHUTE SUPPORT
3 Bin System only
1. Position upper chute support against bagger
inlet, fl ush at outer edges. See Illustration.
2. Using support as a template, drill two
3
/
8
holes
into bagger hood.
Upper Chute Support
Bagger Inlet
Nut
Bagger Hood
Flat Washers
Hex Bolt
Flex Trim
3. Secure upper chute support to hood with hex
bolts, washers and nyloc nuts.
ASSEMBLY
