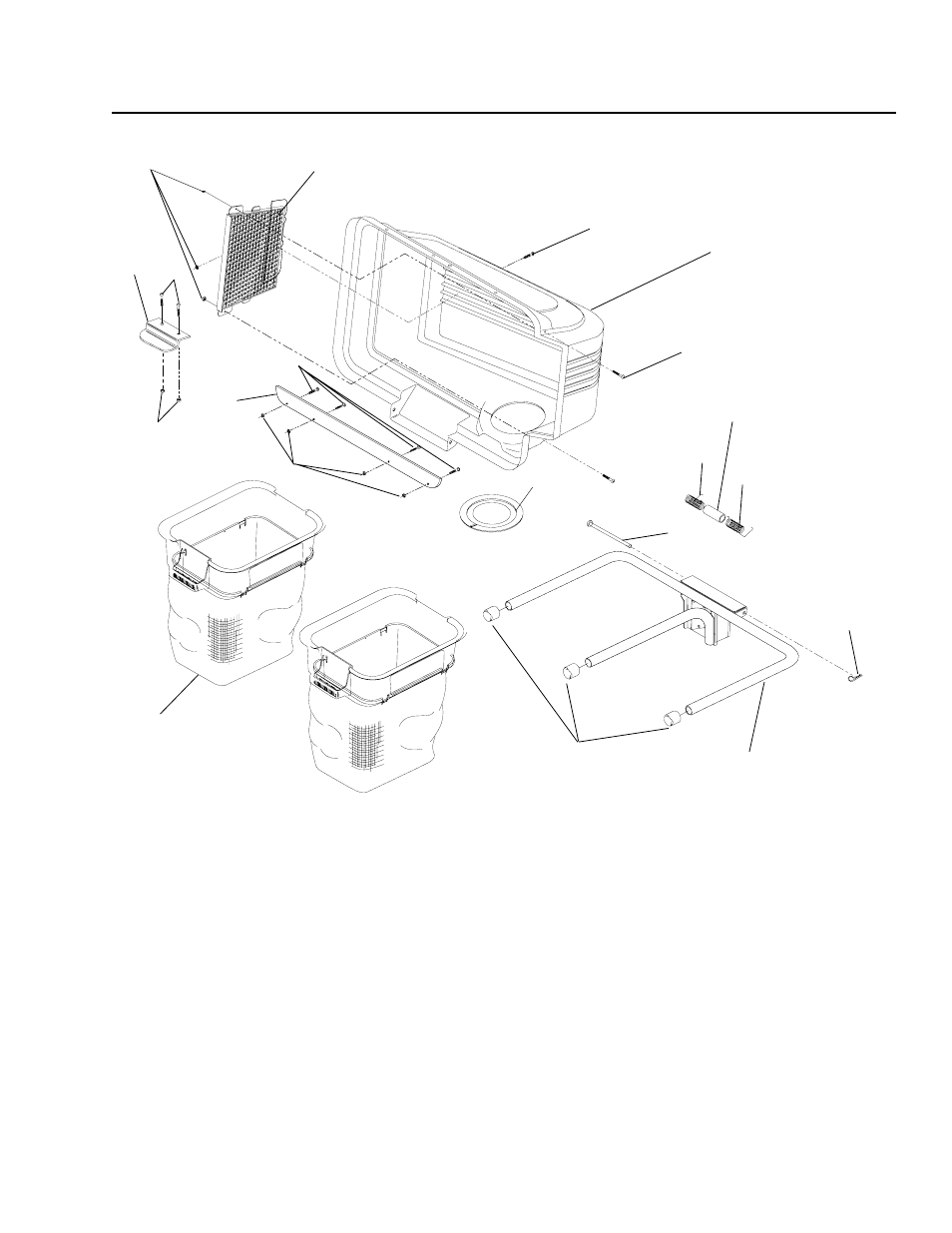

PARTS
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1 ... 532 124670 ... 1 ... RETAINER SPRING
2 ... 532 127533 .. 1 ... SCREEN, COVER
3 ... 539 108100 .. 1 ... GASKET, COVER
4 ... 532 130895 .. 1 ... LATCH HANDLE, COVER
5 ... 532 132796 ... 1 ... SPRING, COVER LT
6 ... 532 132983 ... 1 ... SPRING, COVER RT
7 ... 532 133235 ... 1 ... SPACER, COVER
8 ... 539 976977 ... 8 ... NUT, 10-24 HEX W/NYLOC
9 ... 539 991034 ... 8 ... SCREW 10-24 x 5 /
8
WSH HD
10 ... 532 414173 ... 1 ... STRIP, REINFORCEMENT
11 ... 532 160274 ... 1 ... COVER, TOP
12 ... 532 174083 ... 3 ... CAP, PLUG TUBING END
13 ... 532 414172 ... 1 ... FRAME ASSEMBLY, 2-BIN
14 ... 532 192786 ... 1 ... PIN, HINGE PIVOT
15 ... 532 400226 ... 2 ... CONTAINER BAG, SOFT
1
2
3
4
5
6
8
9
14
15
11
7
13
10
12
8
8
9
9
9
BAG ASSEMBLY 539 131189
