Page 14
15
NOTE: For ease of assembly, you may wish
assistance from another person for mounting the
cover assembly to mower.

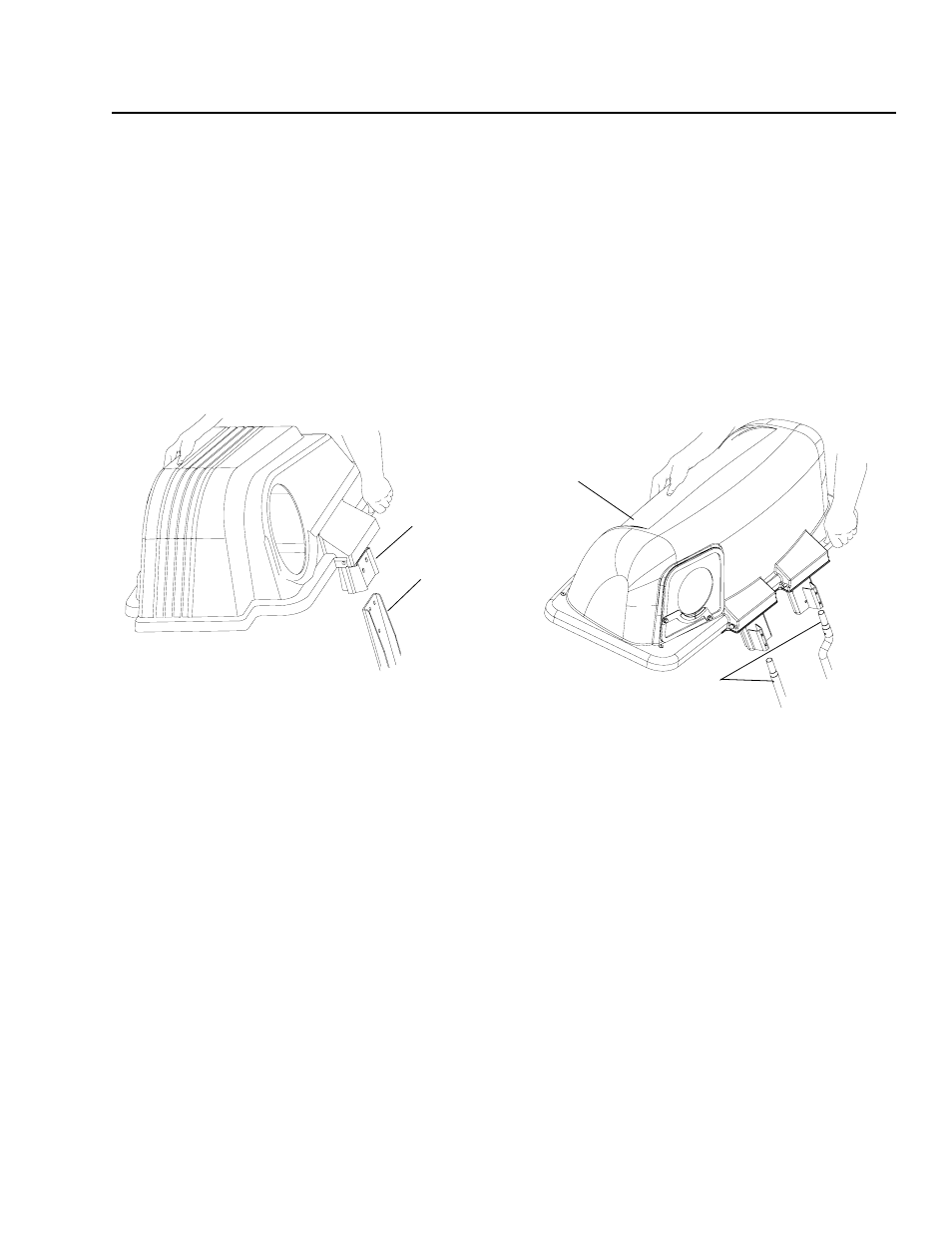

1. Position cover assembly on ground behind
mower.
2. Lift and rotate cover to align the cover bracket
with hanger bracket and slide the cover down
until secure.
Frame Bracket
Hanger
Bracket
13
MOUNTING COVER ASSEMBLY
TO SUPPORT ASSEMBLY
(2 BAG SYSTEM)
14
MOUNTING COVER ASSEMBLY
TO SUPPORT ASSEMBLY
(3 BAG SYSTEM)
NOTE: For ease of assembly, you may wish
assistance from another person for mounting the
cover assembly to mower.
1. Position cover assembly on ground behind
mower.
2. Lift and rotate cover to align the cover brackets
with support assembly tubes.
3. Slide the cover down over the support tubes
until secure.
Cover Assembly
Support
Assembly
ASSEMBLY
