Installation
24
Connecting a VGA Monitor

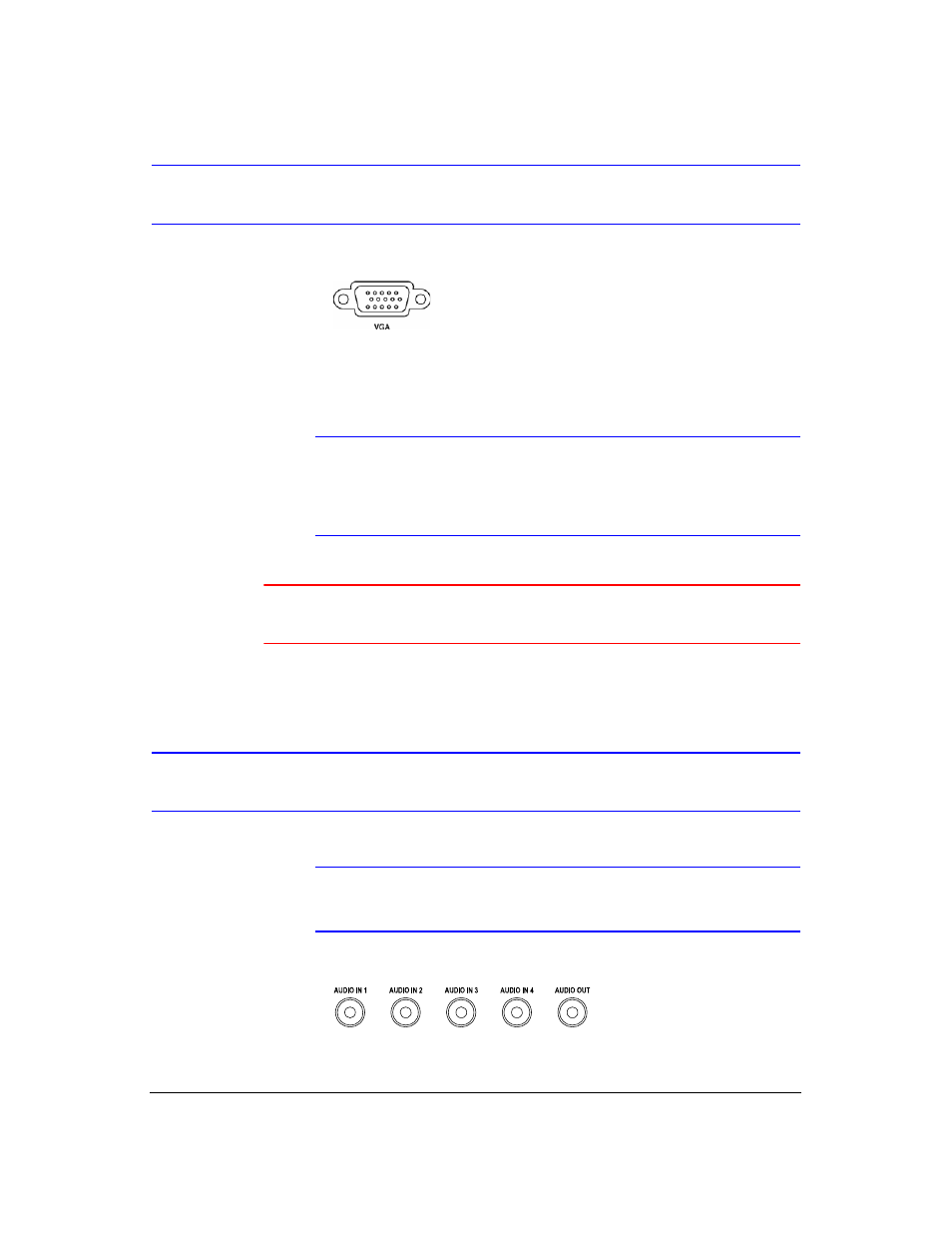

Figure 2-5
VGA Connector
A VGA connector is provided so that you can use a standard, multi-sync computer
monitor as your main monitor. Use the cable supplied with your monitor to connect it to
the DVR.
Note
Pressing and holding DISPLAY on the front panel for 5 seconds
or longer will switch the video output between Video Out (BNC or
SVHS Out) and VGA Out. During clip copy, you cannot switch
the video output between Video Out and VGA Out.
Caution
The DVR will NOT record video for about 3 seconds while
switching the video output between Video Out and VGA Out.
Connecting Audio
Note
It is the user’s responsibility to determine if local laws and
regulations permit recording audio.
Figure 2-6
Audio In and Out Connectors
