Connector Pin Outs

Document 900.0856

Rev 3.00

143

11/07

G

Connector Pin Outs

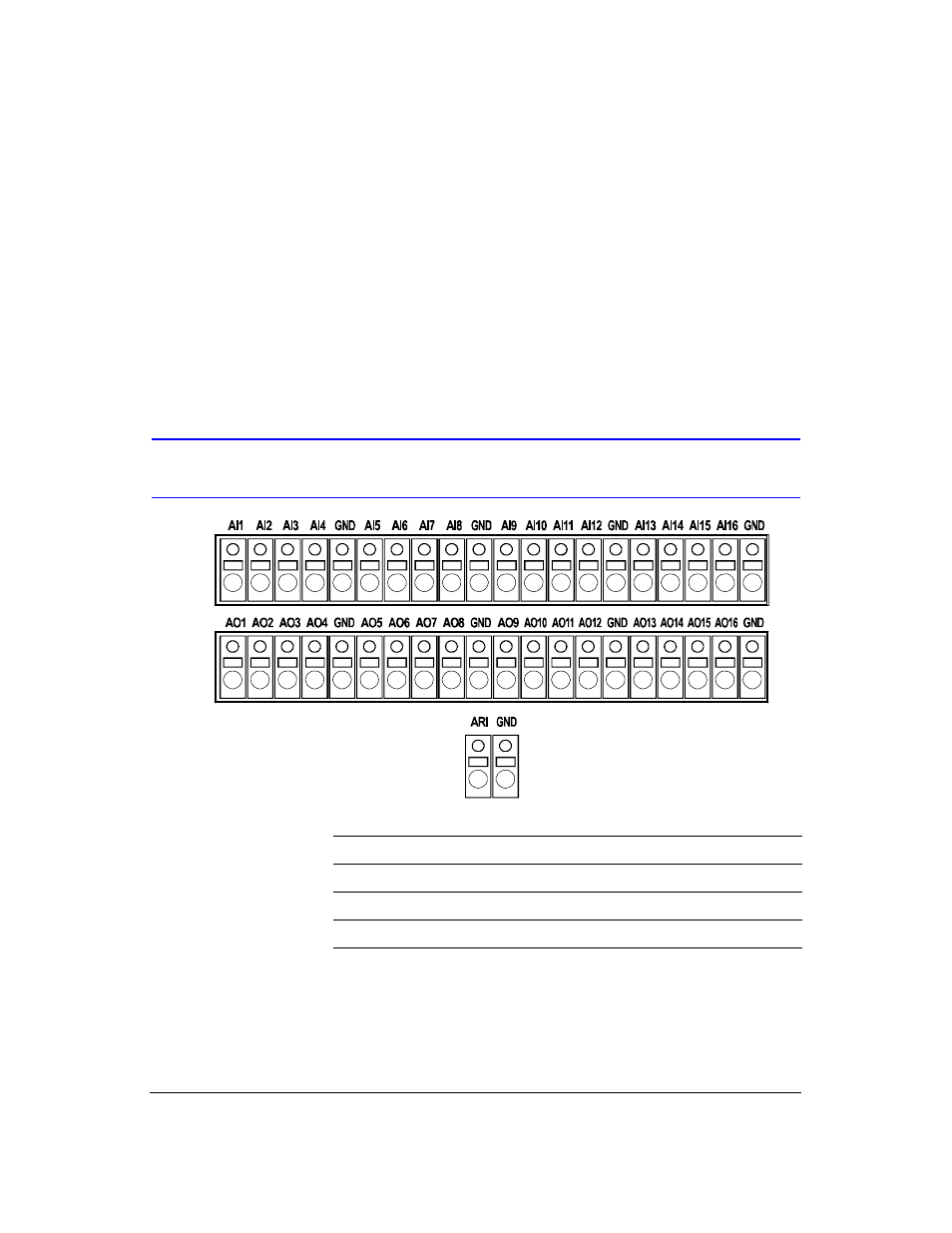

I/O Connector Pin Outs

AI (1 to 16)

Alarm Inputs 1 to 16

GND

Chassis Ground (9 connectors)

AO (1 to 16)

Alarm Outputs 1 to 16

ARI

Alarm Reset In
