Gnd (ground), Ao 1 to 16 (alarm-out), Ari (alarm reset in) – Honeywell HRXD9 User Manual

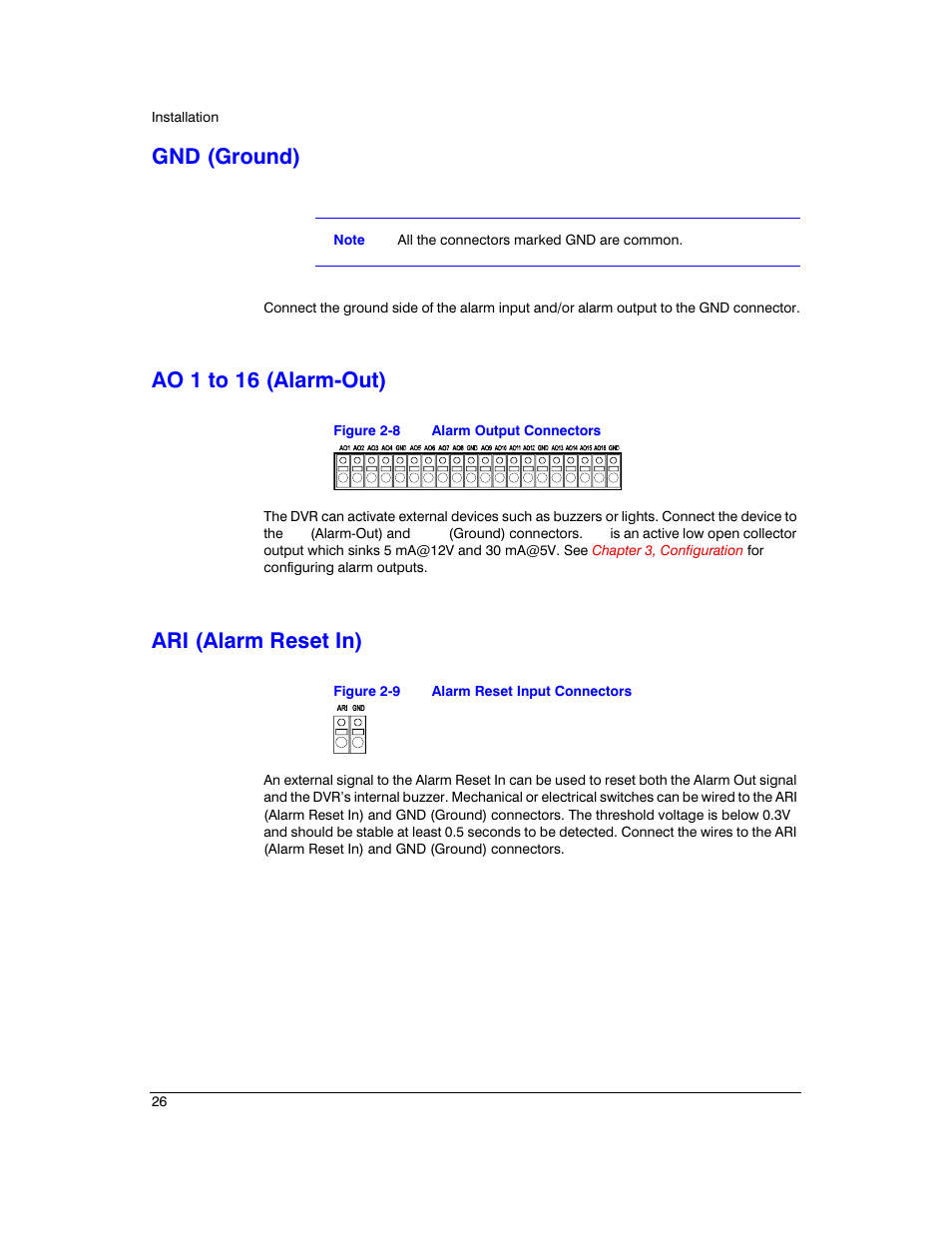

Page 26: Figure 2-8, Alarm output connectors, Figure 2-9, Alarm reset input connectors

Text mode
Original mode

Gnd (ground), Ao 1 to 16 (alarm-out), Ari (alarm reset in) | Figure 2-8, Alarm output connectors, Figure 2-9, Alarm reset input connectors | Honeywell HRXD9 User Manual | Page 26 / 156
