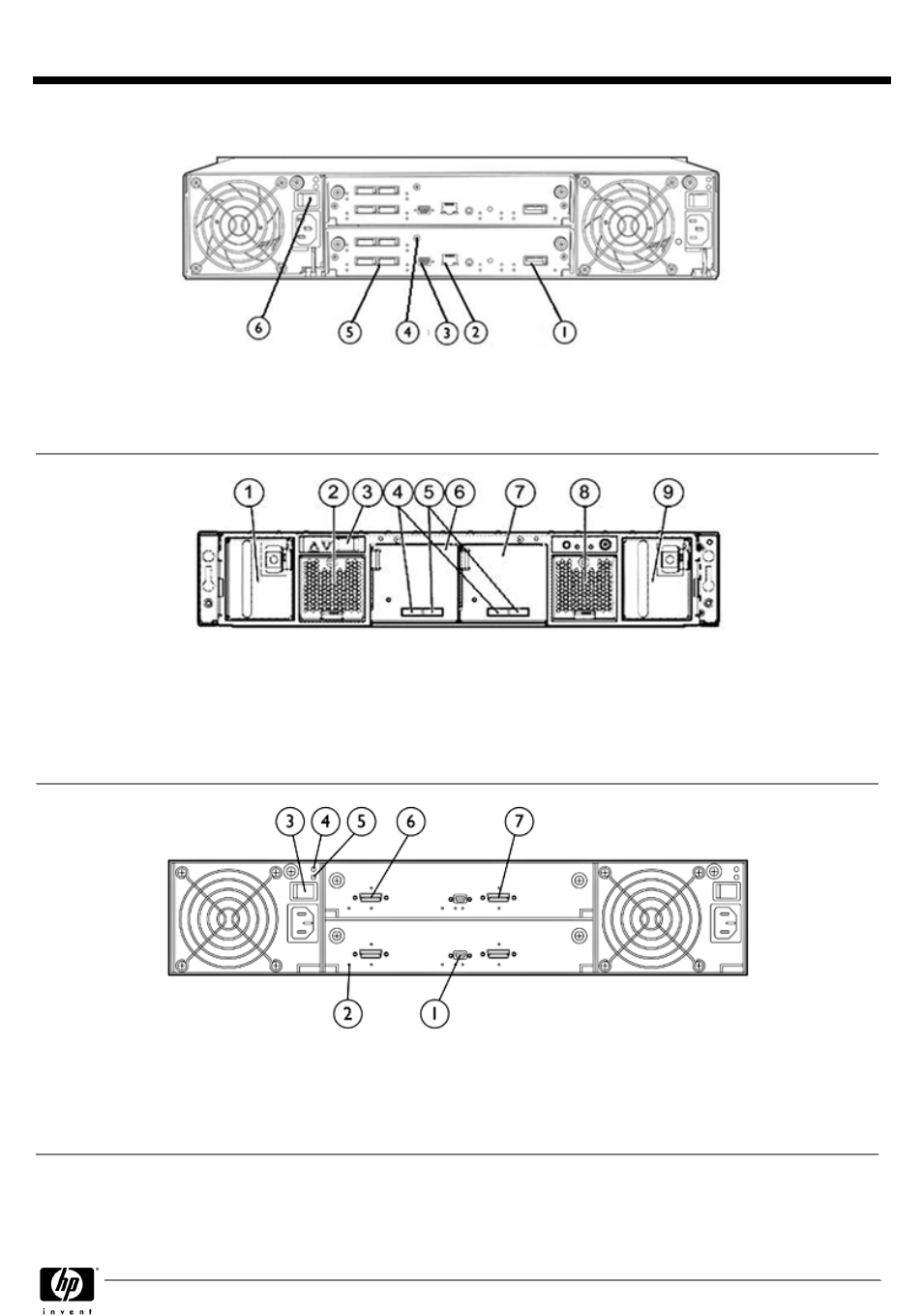

Dual Controller MSA2000sa G2
1. Expansion Port 4. Service Port
2. Ethernet Port 5. SAS host Ports
3. CLI Port 6. Power Switch
MSA70 Dual I/O 2.5-inch 25 Drive Enclosure
Rear Panel components
1. Power Supply 1
4. SAS in connector 7. I/O module bay
2. System fan 1 5. SAS out connector 8. System fan 2
3. Dual 7 segment display board 6. I/O module bay 9. Power supply 2
MSA2000 Dual I/O 3.5 inch 12 Drive Enclosure
1. Service Port 5. AC Power Good
2. Unit Locator 6. SAS In Port
3. Power Switch 7. SAS Out Port
4. DC Voltage / Fan Fault
