Component identification 8

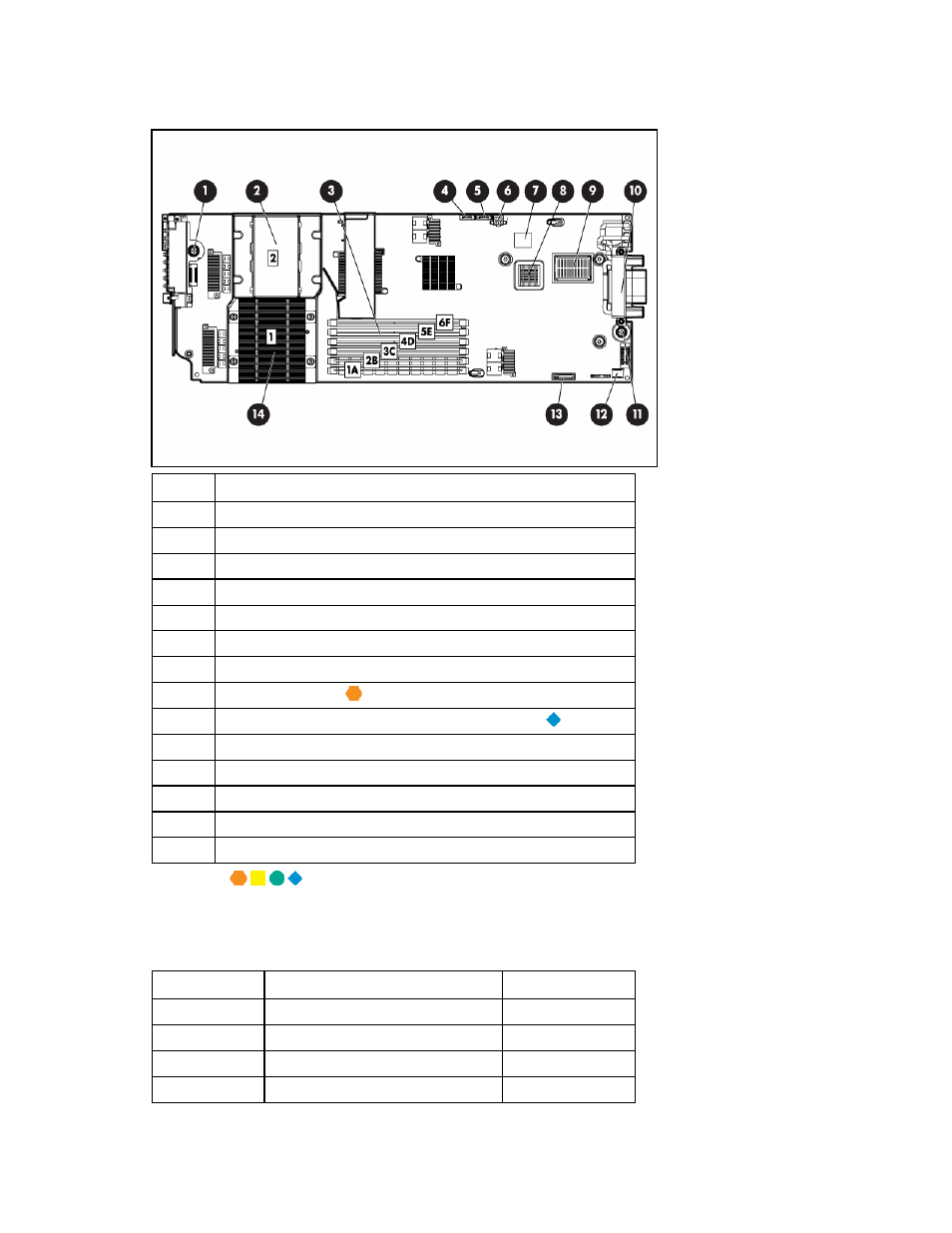

System board components
Item Description
1 System board thumbscrew
2 Processor socket 2 (with blank)
3 DIMM slots (6)
4 Hard drive data connector 1
5 Hard drive data connector 2
6 Hard drive power connector
7 USB connector
8 Embedded NICs (2)
9 Mezzanine connector (Type II mezzanine cards only)
10 Enclosure connector
11 System board thumbscrew
12 System maintenance switch
13 System battery
14 Processor socket 1 (populated)
The symbols correspond to the symbols located on the interconnect bays. For more information, see the
HP ProLiant BL260c Generation 5 Server Blade Installation Instructions that ship with the server blade.
System maintenance switch
Position Function Default
1 iLO 2 security override Off
2 Configuration lock Off
3 Reserved Off
4 Reserved Off
