Heat & Glo • 6000G, 6000G-IPI • 2103-900 Rev. M • 9/08 67

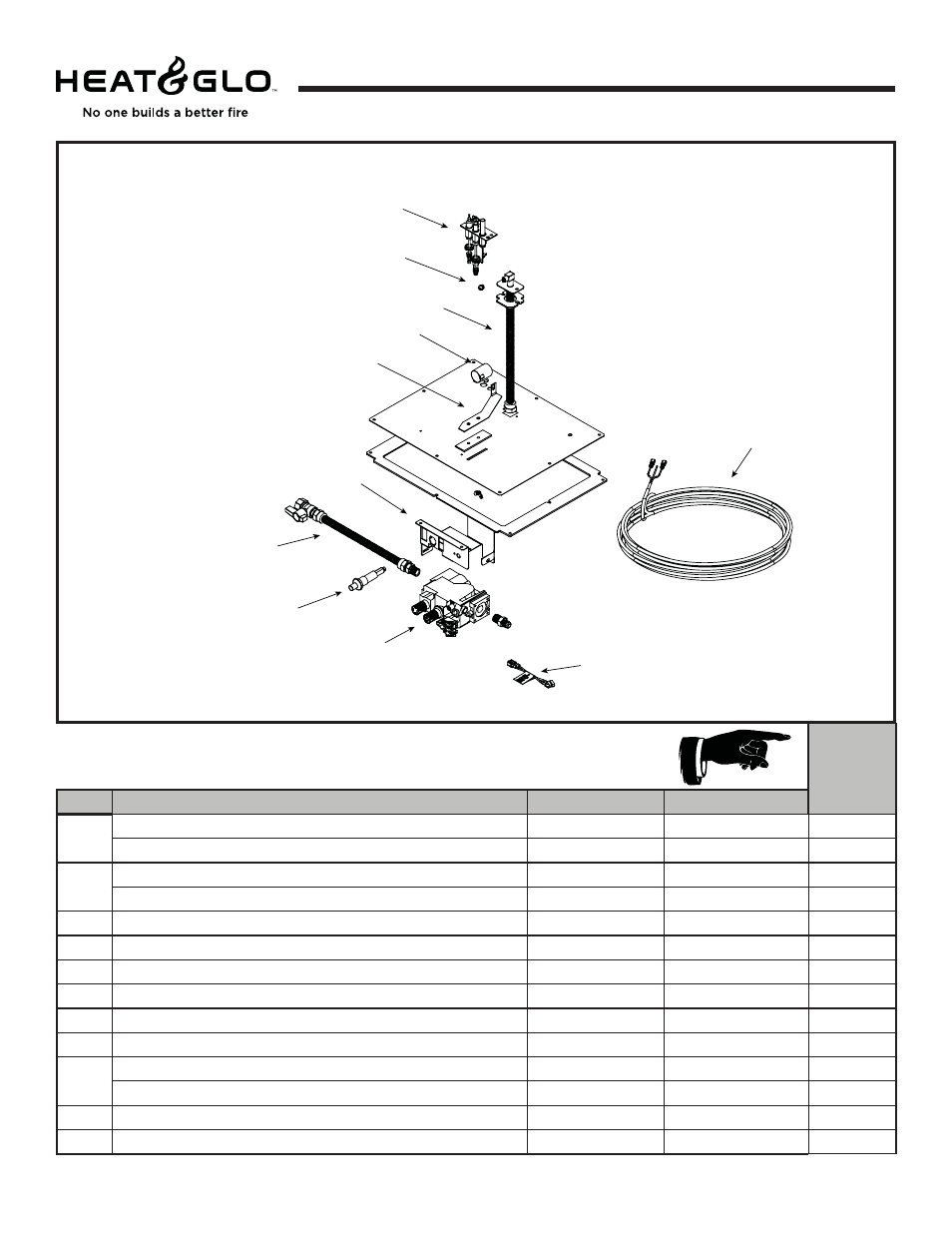

Standing Pilot Valve Assembly
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1
Pilot Assembly, NG 2103-010 Y
Pilot Assembly, LP 2103-011 Y
2
Orifi ce NG (#37C) 582-837 Y
Orifi ce LP (#52C) 582-852 Y
3 Flex Tube Assembly 383-302A Y
4 Shutter Sleeve 2026-130 Y
5 Shutter Bracket Assembly 2026-017 Y
6 Valve Bracket 2118-104
7 Flex Ball Valve Assembly 302-320A Y
8 Piezo Ignitor 291-513 Y
9
Valve, NG 230-0710 Y
Valve, LP 230-0720 Y
10 Remote Pigtail Wire 040-557A Y
11 Wire Assembly 2045-024 Y
1
3
7
8
4
10
11
9
6
5
2
Service Parts
Service Parts Diagram Beginning Manufacturing Date: May 2006
Ending Manufacturing Date: ______
6000G
