Heat & Glo • 6000G, 6000G-IPI • 2103-900 Rev. M • 9/08 18

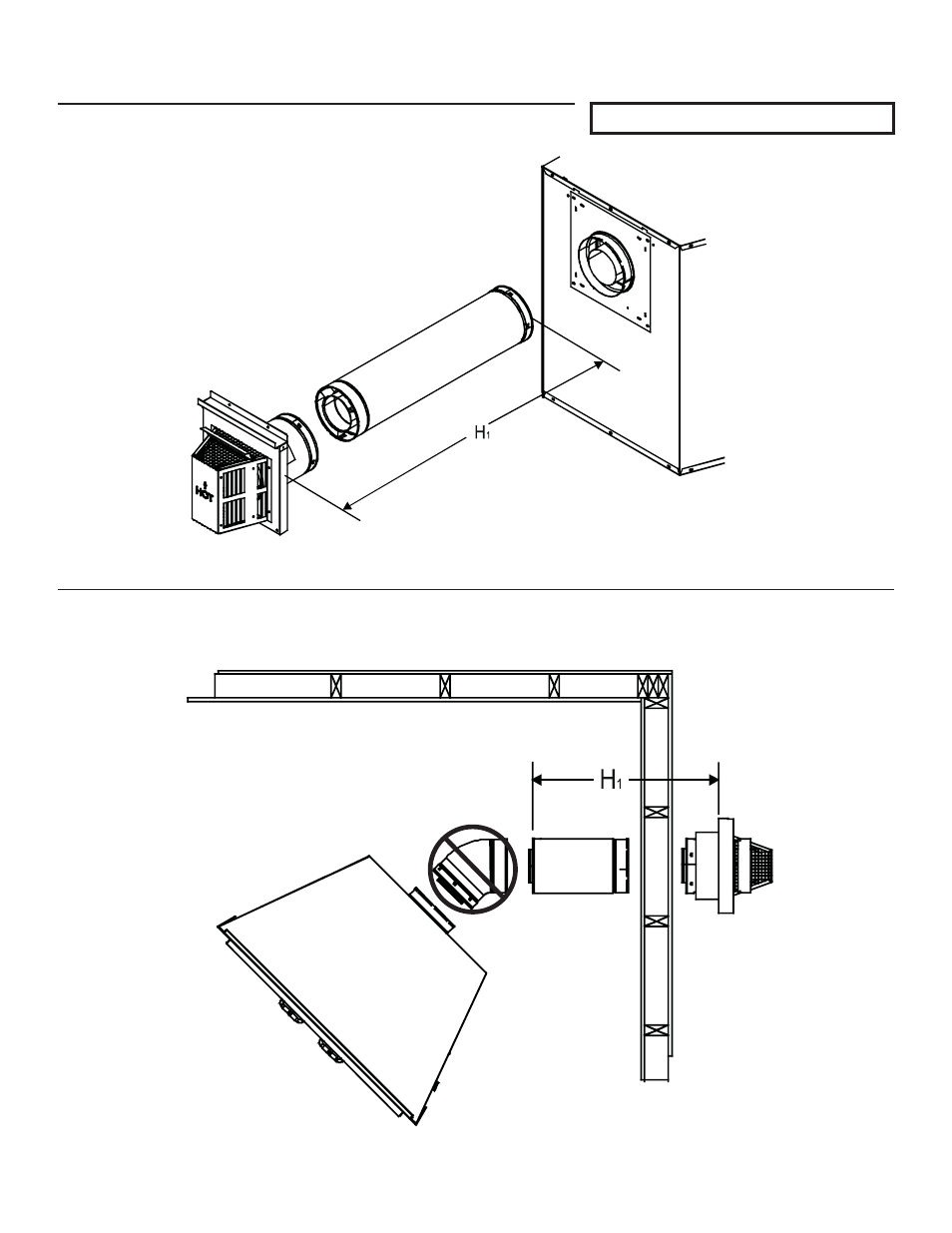

3. Rear Vent - Horizontal Termination
Figure 5.13
Figure 5.14
No Elbow
One 45º Elbow
H
1
= 16 in. (406 mm) Maximum
Do not use a 45 0 elbow in corner installations.
Use two 90 0 elbows instead.
