Heat & Glo • 6000G, 6000G-IPI • 2103-900 Rev. M • 9/08 57
A
D
B
C
H
ELECTRICAL
ACCESS
G
F
E
GAS LINE
ACCESS
N
O
L
M
I
J
K
TOP VIEW
RIGHT SIDE LEFT SIDE FRONT VIEW
Q
R
P

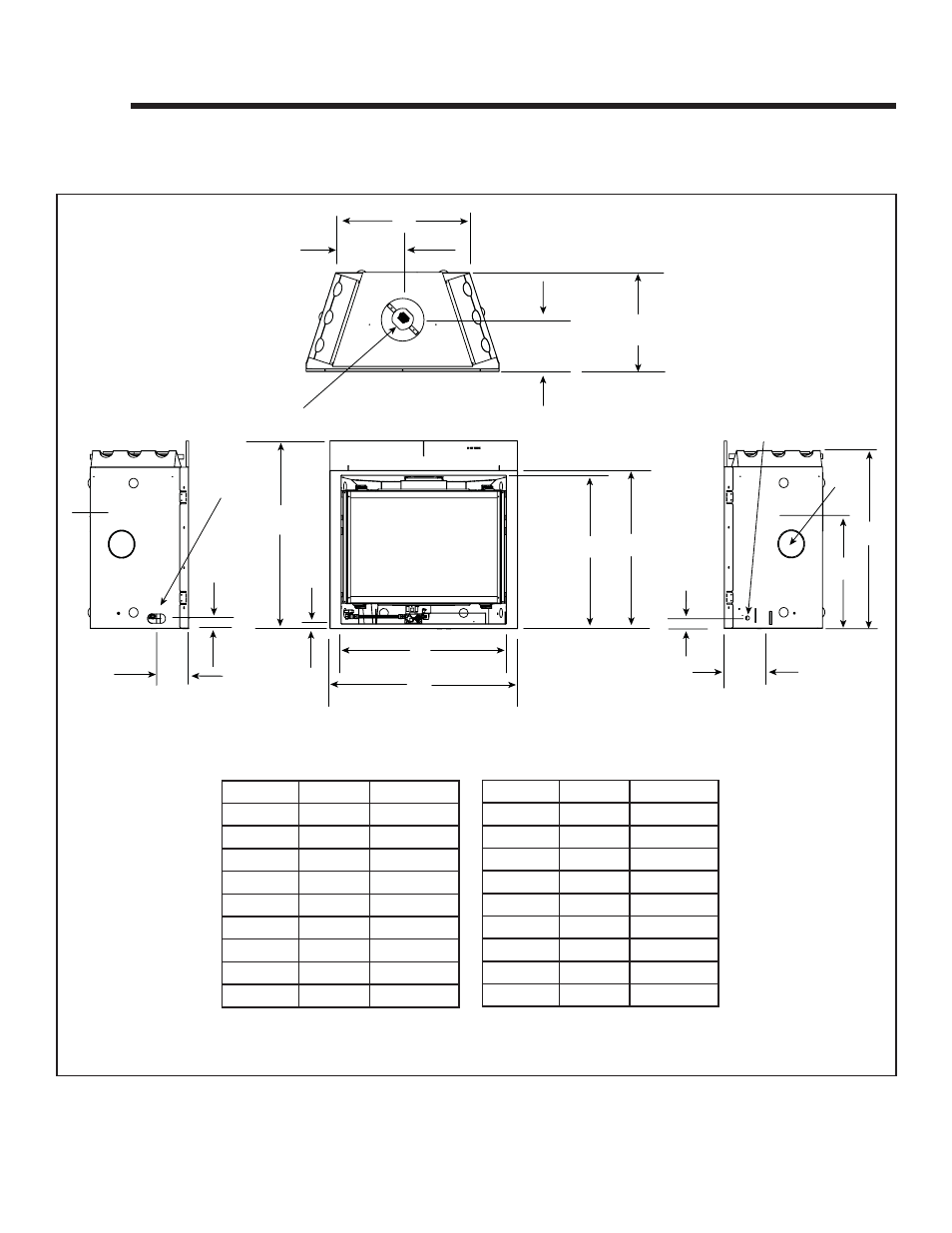

Figure 16.1 Appliance Dimensions
Appliance Dimensions Table
Location Inches Millimeters
J 11-5/8 295
K 28-1/2 724
L 14-1/4 362
M 8 dia 203
N 2-1/8 54
O 6-7/8 175
P 38 965
Q 1 25
R 39-3/8 1000
Location Inches Millimeters
A 41 1041
B 36-1/8 918
C 33-1/2 851
D 34-5/8 879
E 2-3/8 60
F 5 127
G 26-7/8 683
H 8 dia 203
I 21-1/2 546
16 16
Reference Materials
A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 3.
